Hitachi 120-3 class - Working Ranges; ZX210-3, 210 LC-3 2-Piece Boom

OPTIONAL ATTACHMENTS AND DEVICES
13-32

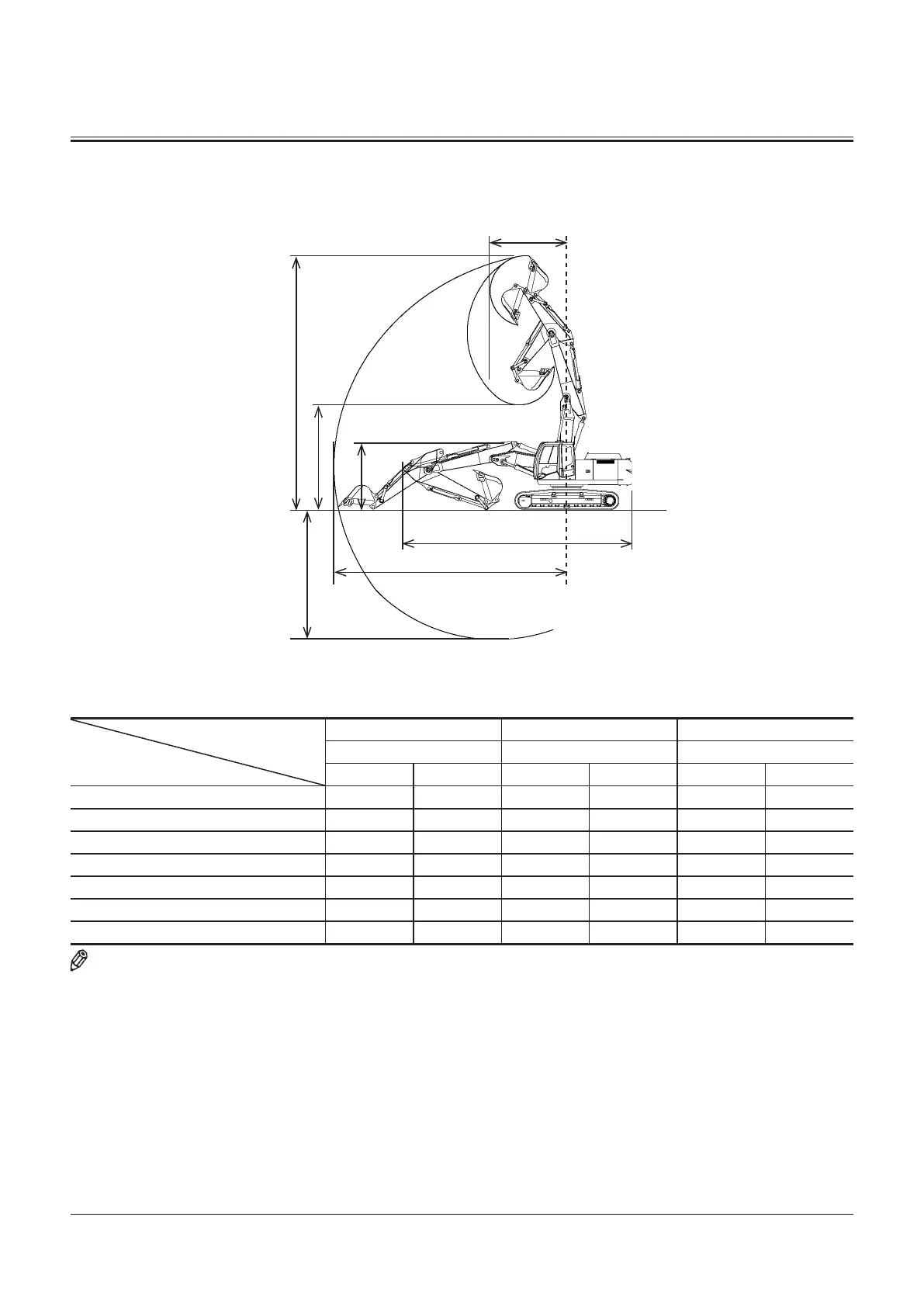

WORKING RANGES
ZX210-3, 210LC-3 2-piece Boom
Category
Item
2.03 m (6 ft 8 in) Arm 2.42 m (7 ft 11 in) Arm 2.91 m (9 ft 7 in) Arm
Backhoe Backhoe Backhoe
mm ft•in mm ft•in mm ft•in
A: Maximum Digging Reach 9210 30’3” 9430 30’11” 9930 32’7”
*B: Maximum Digging Depth *5420 *17’9” *5720 *18’9” *6230 *20’5”
*C: Maximum Cutting Height *10590 *34’9” *10640 *34’11” *11080 *36’4”
*D: Maximum Dumping Height *7670 *25’2” *7700 *25’3” *8150 *26’9”
E: Transport Height 3020 9’11” 3060 10’0” 3010 9’11”
F: Overall Transport Length 9650 31’8” 9620 31’7” 9560 31’4”
G: Minimum Swing Radius 2630 8’8” 2630 8’8” 2320 7’7”
NOTE: * The dimensions do not include the height of the shoe lug.
M1V1-13-003
A
G
B
D
C
F
E
Backhoe
