Hitachi 120-3 class - Working Ranges (ZX250 LC-3, 250 LCN-3)

SPECIFICATIONS
12-30

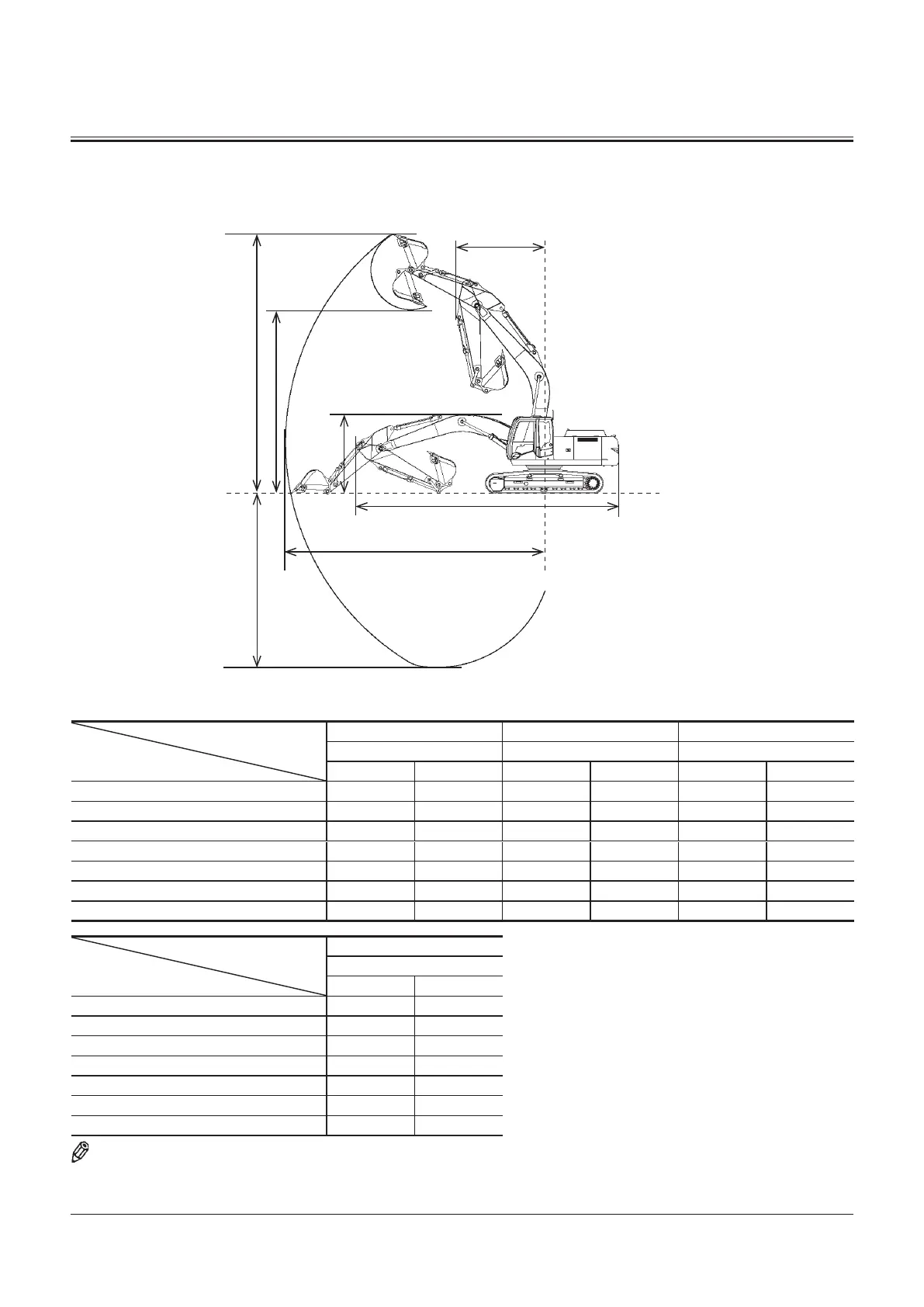

WORKING RANGES
ZX250LC-3, 250LCN-3
Category
Item
2.19 m (7 ft 2 in) Arm 2.50 m (8 ft 2 in) Arm 2.96 m (9 ft 9 in) Arm
Backhoe Backhoe Backhoe
mm ft•in mm ft•in mm ft•in
A: Maximum Digging Reach 9660 31’8” 9880 32’5” 10290 33’9”
B: Maximum Digging Depth *6190 *20’4” *6500 *21’4” *6960 *22’10”
C: Maximum Cutting Height *10000 *32’10” *9950 *32’8” *10160 *33’4”
D: Maximum Dumping Height *6970 *22’10” *6990 *22’11” *7200 *23’8”
E: Transport Height 3340 11’0” 3370 11’1” 3070 10’1”
F: Overall Transport Length 10240 33’7” 10270 33’8” 10150 33’3”
G: Minimum Swing Radius 3580 11’9” 3480 11’5” 3440 11’3”
Category
Item
3.61 m (11 ft 10 in) Arm
Backhoe
mm ft•in
A: Maximum Digging Reach 10910 35’10”
B: Maximum Digging Depth *7610 *25’0”
C: Maximum Cutting Height *10560 *34’8”
D: Maximum Dumping Height *7580 *24’10”
E: Transport Height 3320 10’11”
F: Overall Transport Length 10200 33’6”
G: Minimum Swing Radius 3430 11’3”
NOTE: * The dimensions do not include the height of the shoe lug.
M1V1-12-002
A
G
B
D
C
F
Backhoe
E
