MAINTENANCE
7-7
HOOD AND ACCESS COVERS
ZX120-3, 180-3 Class
WARNING:
• Do not keep the hood and access covers open
when the machine is parked on a slope, or while
the wind is blowing hard. The hood or access cov-
ers may close accidentally, possibly resulting in
personal injury.
• When opening or closing the hood and access cov-
ers, take extra care not to catch fingers between
the base machine and the hood or access covers.

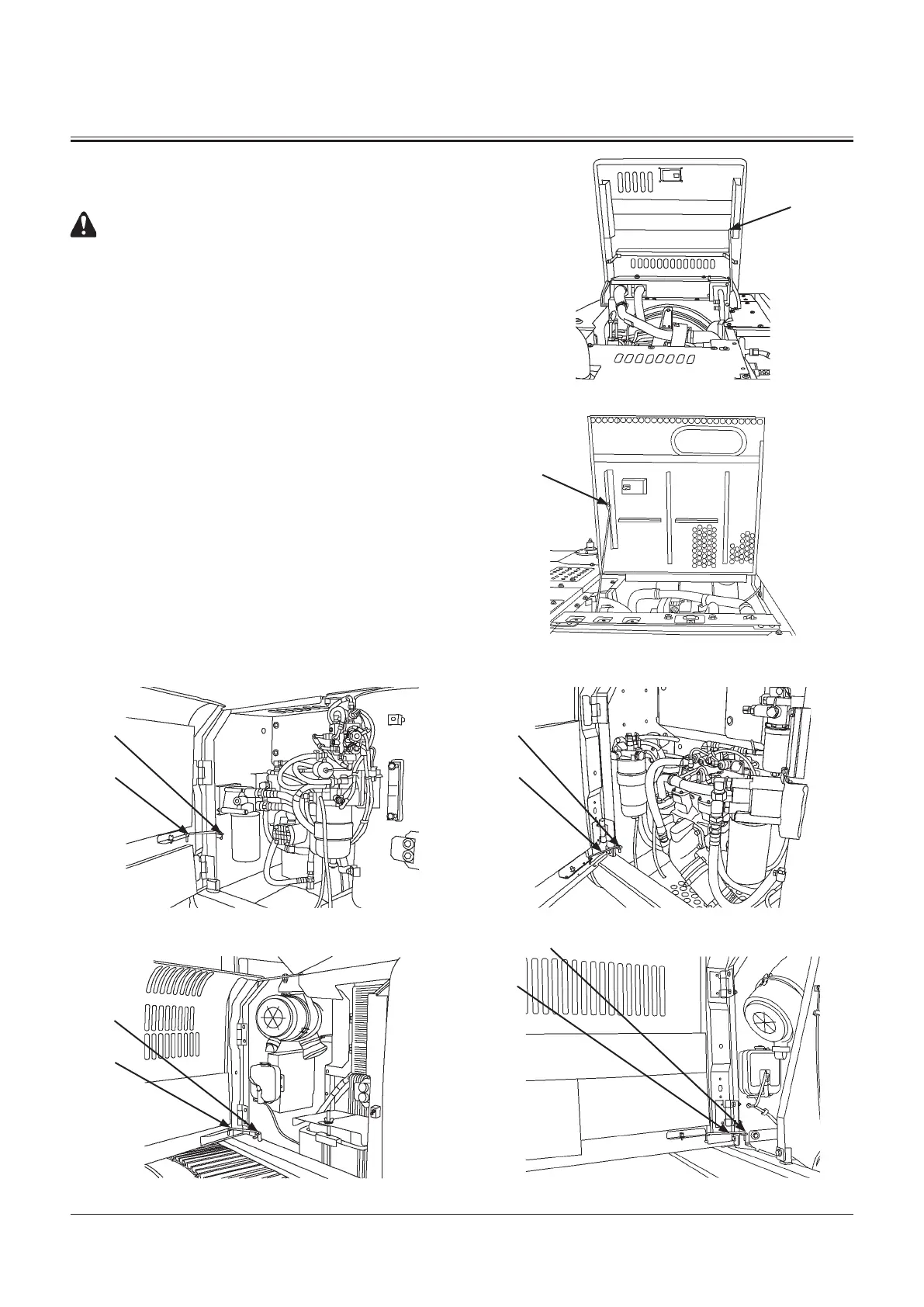

• Remove locks (2 used) to open the engine access cover.
Holding the handle on the access cover, raise the cover
until the cover is secured with catch (1).
• After opening the right and/or left access cover, be sure to
insert rod (2) into cover lock hole (3) to hold the cover.
3
M1U1-07-098
1
M1U1-07-090
2
3
M1U1-07-092
2
Engine Cover ZX180-3 Class
Right Cover ZX180-3 Class
Left Cover ZX180-3 Class
M1U1-07-099
1
M1U1-07-100
M1U1-07-101
Engine Cover ZX120-3 Class
Right Cover ZX120-3 Class
Left Cover ZX120-3 Class
3
2
3
2
