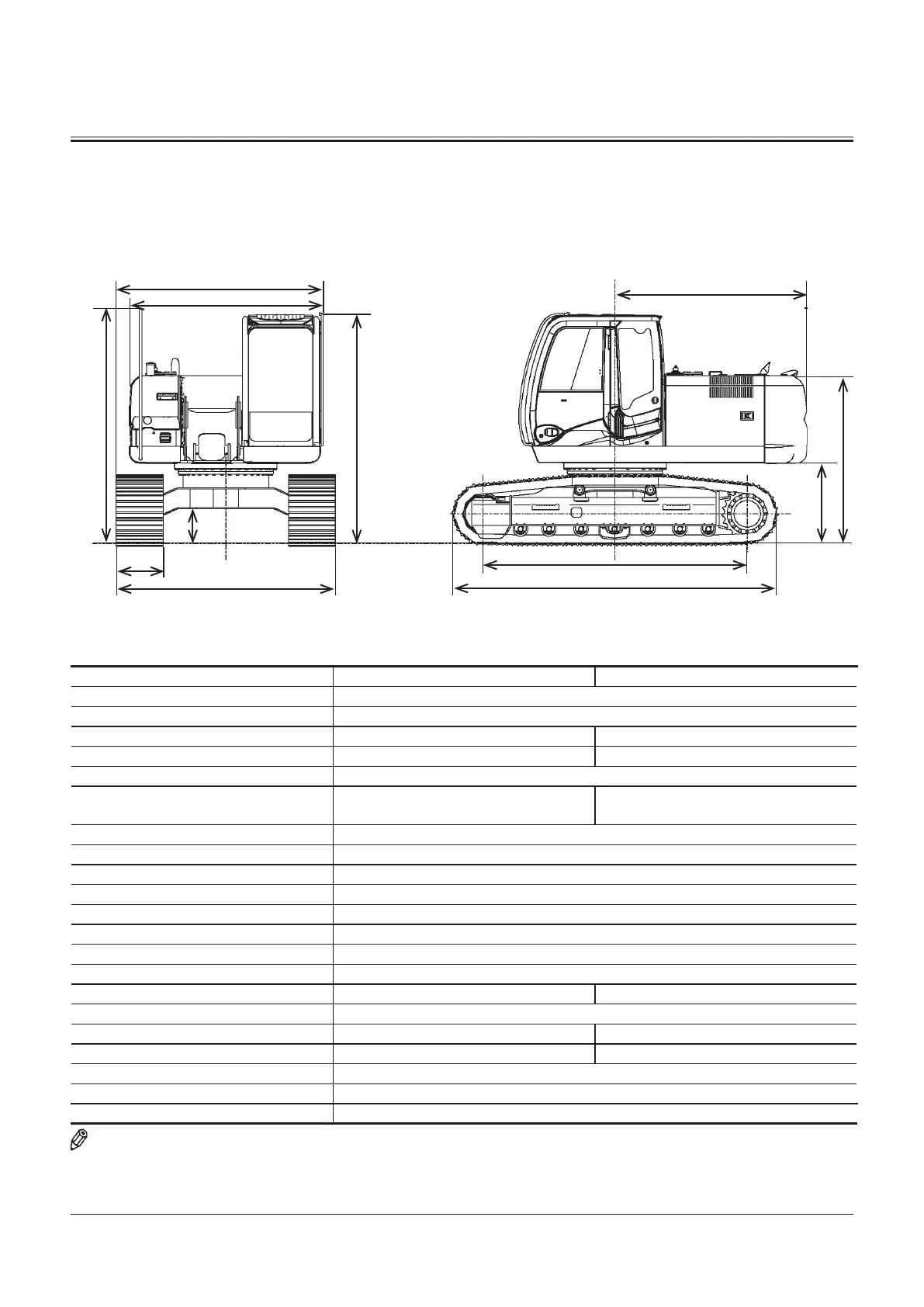

SPECIFICATIONS
12-16
SPECIFICATIONS
ZX180LC-3, 180LCN-3
Model ZX180LC-3 ZX180LCN-3
Type of Front-End Attachment 2.71 m (8 ft 11 in) Arm
Bucket Capacity (Heaped) PCSA 0.7 m
3
(0.92 yd
3
), CECE 0.6 m
3
Operating Weight 18500 kg (40790 lb) 18100 kg (39900 lb)
Basic Machine Weight 14500 kg (31970 lb) 14200 kg (31310 lb)
Engine Isuzu AI-4JJ1XYSA-01 90.2 kW/2200 min
–1
(123 PS/2200 rpm)
A: Overall Width
(Excluding back mirrors)
2800 mm (9 ft 2 in) 2500 mm (8 ft 3 in)
B: Cab Height 2950 mm (9 ft 8 in)
C: Rear End Swing Radius 2490 mm (9 ft 8 in)
D: Minimum Ground Clearance * 450 mm (18 in)
E: Counterweight Clearance * 1030 mm (3 ft 5 in)
F: Engine Cover Height * 2140 mm (7 ft 0 in)
F’: Overall Height of Handrail 3010 mm (9 ft 11 in)
G: Overall Width of Upperstructure 2480 mm (8 ft 2 in)
H: Undercarriage Length 4170 mm (13 ft 8 in)
I: Undercarriage Width 2800 mm (9 ft 2 in) 2490 mm (8 ft 2 in)
J: Sprocket Center to Idler Center 3370 mm (11 ft 1 in)
K: Track Shoe Width 600 mm (24 in) (Grouser shoe) 500 mm (20 in)
Ground Pressure 41 kPa (0.42 kgf/cm
2
, 5.9 psi)
49 kPa (0.50 kgf/cm
2
, 7.0 psi)
Swing Speed 14.1 min
–1
(rpm)
Travel Speed (fast/slow) 5.3/3.4 km/h (3.4/2.2 mph)
Gradeability 35° (tan
θ
= 0.70)
NOTE: * The dimensions do not include the height of the shoe lug.
T1T1-01-01-002
A
G
B
D
K
I
C
F
E
J
H
F'
