MAINTENANCE
7-69

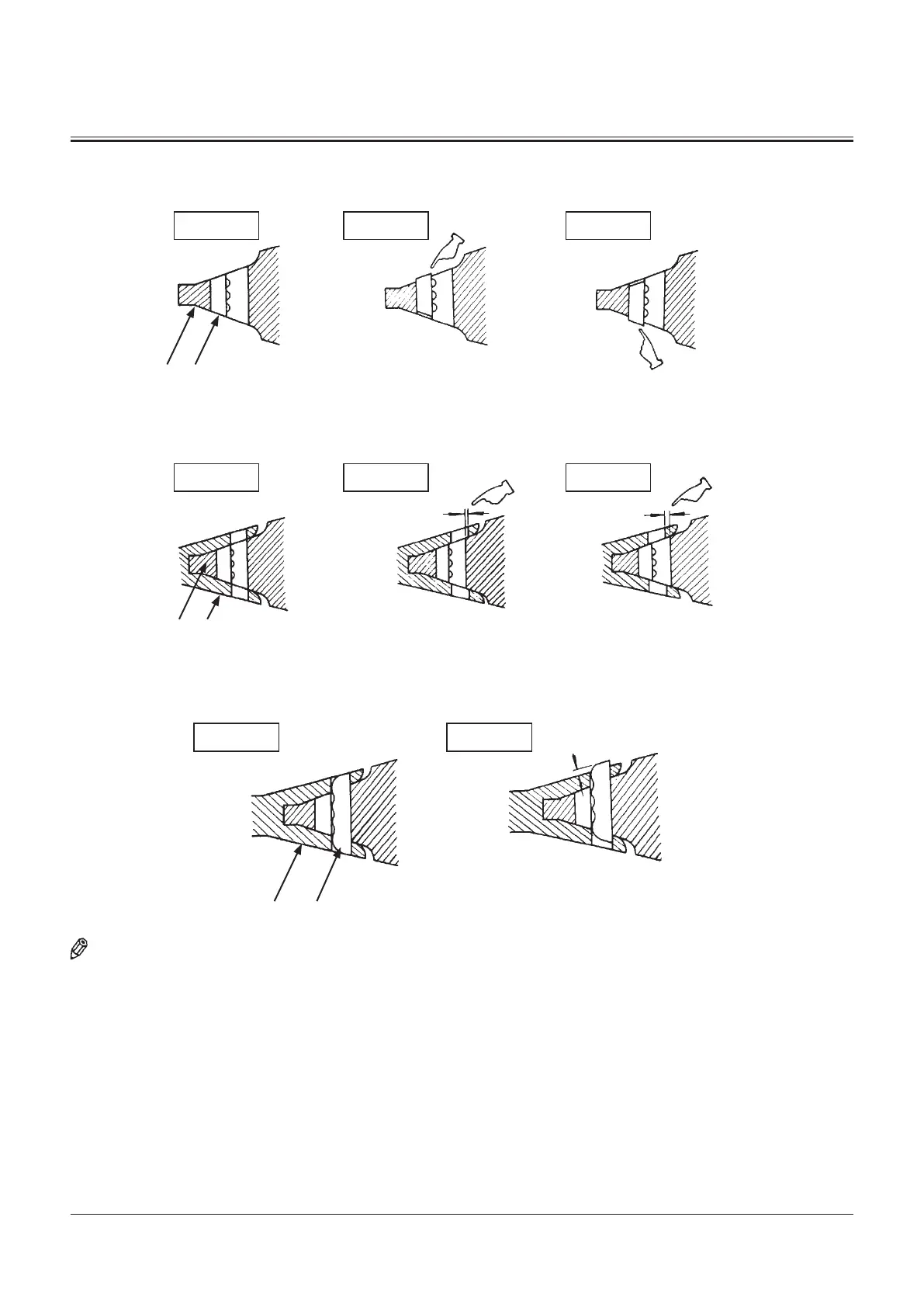

3.
Clean shank (6) surface.
4.
Install rubber pin lock (4) into shank (6) hole as shown.
5.
P
osition new tooth (1) ov
er shank (6).
6.
Drive locking pin (5) fully into the hole as shown.
NO
TE:
Check the bucket t
eeth periodically to ensure that w
ear
does not exceed the designed service limit.
M104-07-060
6
4
M104-07-061
6
1
M104-07-062
1
5
RIGHT
WRONG
WRONG
RIGHT
WRONG
WRONG
RIGHT
WRONG
260
