SPECIFICATIONS
12-13

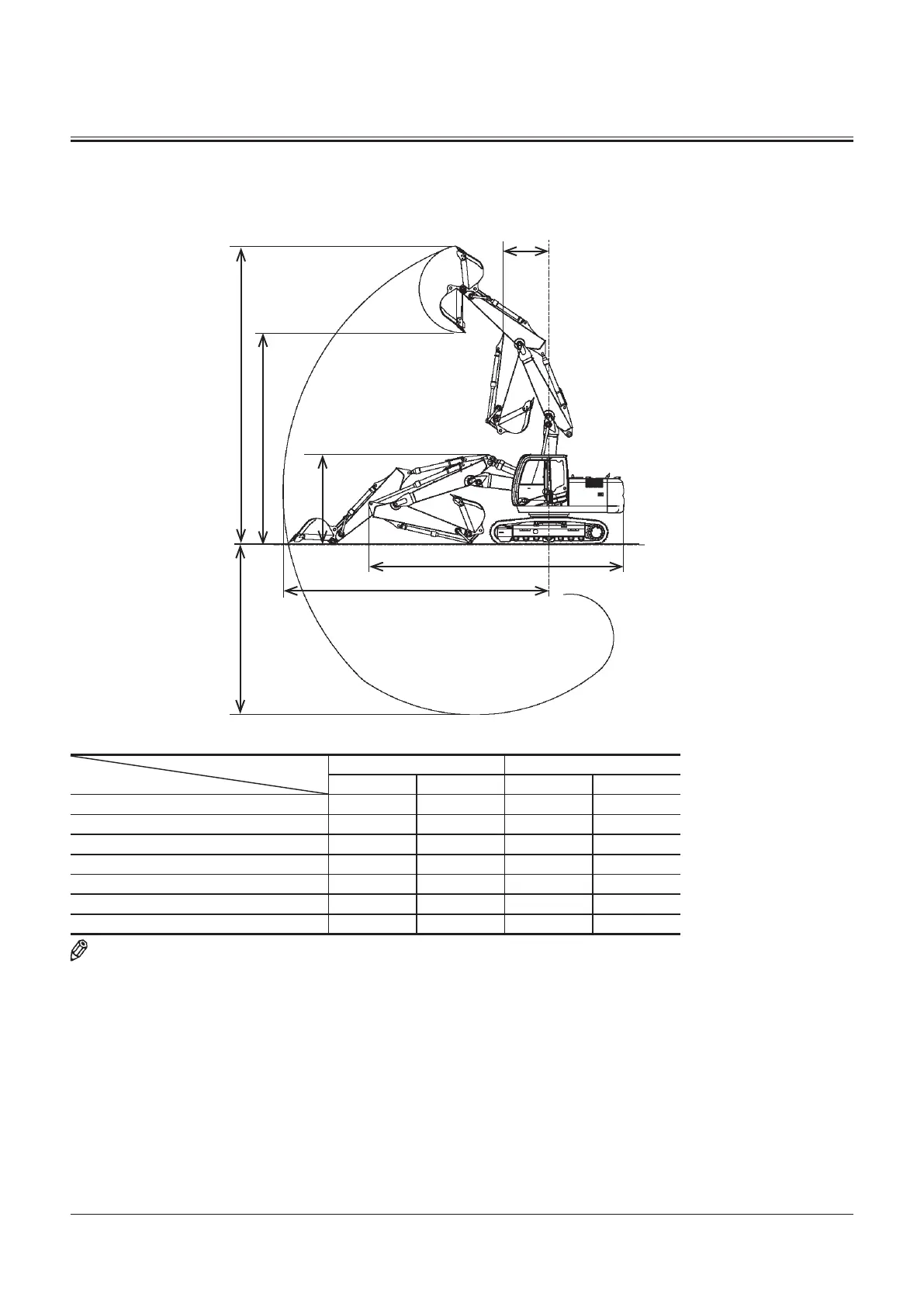

ZX160LC-3 (Machine with 2-Piece Boom)
Category
Item
2.22 m (7 ft 4 in) Arm 2.58 m (8 ft 6 in) Arm
mm ft•in mm ft•in
A: Maximum Digging Reach 8330 27’4” 8690 28’7”
B: Maximum Digging Depth 5210 17’2” 5580 18’4”
C: Maximum Cutting Height 9420 30’11” 9740 31’12”
D: Maximum Dumping Height 6600 21’8” 6900 22’8”
E: Transport Height 3090 10’2” 3010 9’11”
F: Overall Transport Length 8450 27’9” 8350 27’5”
G: Minimum Swing Radius 2580 8’7” 2070 6’10”
NOTE: * The dimensions do not include the height of the shoe lug (except Item E).
T1T1-01-01-005
C
B
D
E
F
A
G

Hitachi 120-3 class Specifications

General

Brand	Hitachi
Model	120-3 class
Category	Excavators
Language	English
