Hitachi 19LD4550C - Connecting with a Euro Scart Cable; Connecting with a S-Video Cable

ENGLISH
21

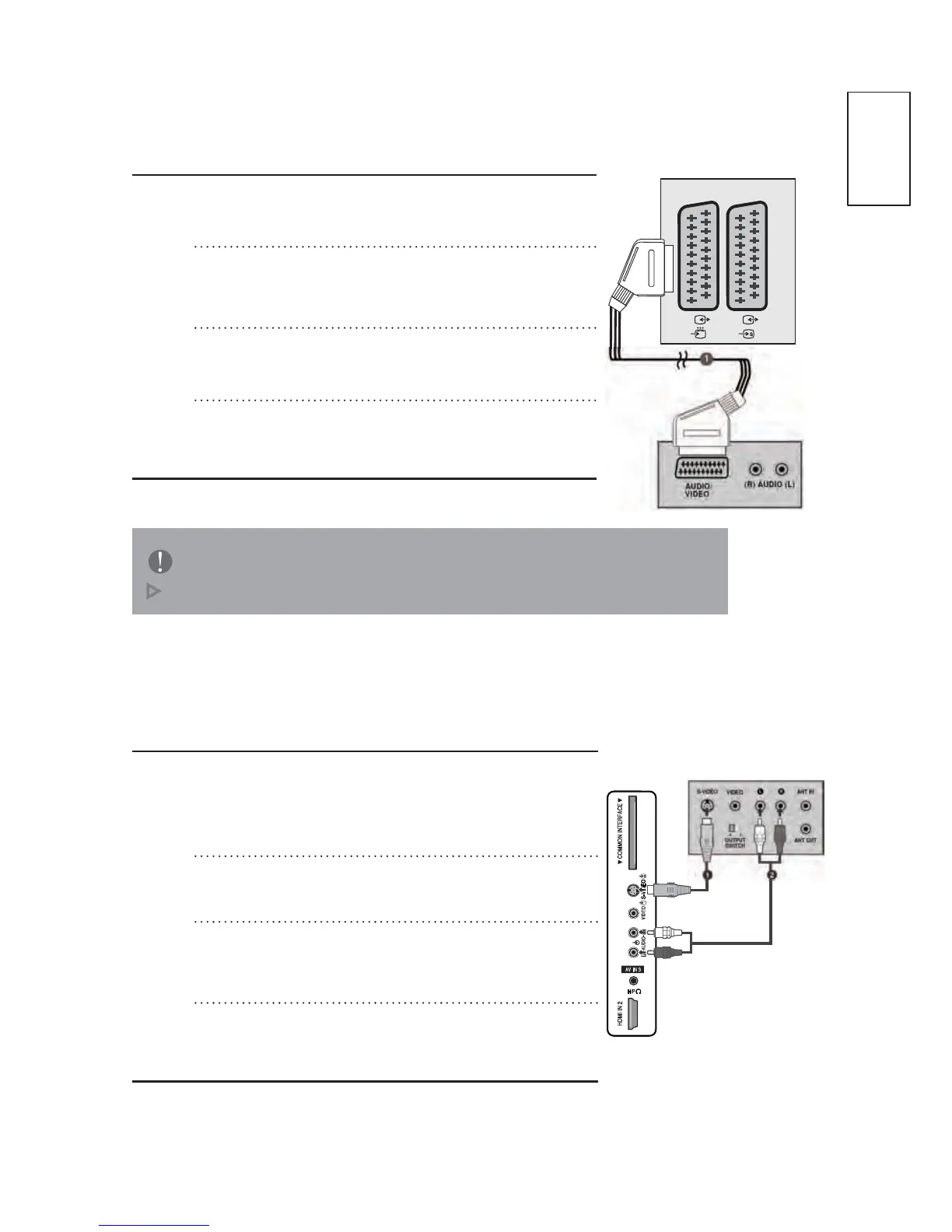

Connecting with a Euro Scart cable
n
o
p
q
Connect the Euro scart socket of the VCR
to the AV1 Euro scart socket on the TV.
Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR
owner’s manual.)
Select AV1 input source using the INPUT
button on the remote control.
If connected to AV2 Euro scart socket,
select AV2 input source.
NOTE
f
Any Euro scart cable used must be signal shielded.
Connecting with a S-Video cable
n
o
p
q
Connect the S-VIDEO output of the VCR to
the S-VIDEO input on the TV. The picture
TXDOLW\LVLPSURYHGFRPSDUHGWRQRUPDO
composite (RCA cable) input.
Connect the audio outputs of the VCR to
the AUDIO input jacks on the TV.
Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR
owner’s manual.)
Select AV3 (S-Video) input source using
the INPUT button on the remote control.
AV 1 AV 2
AV IN 3
H/P
S-VIDEO
COMMON INTERFACEHDMI IN 2 COMMON INTERFACE
L
R
AUDIO
VIDEO
