Management Monitor for Maintenance
The Hitachi Compute Blade system provides two types of management
monitor.
• Web console
• LCD touch console
Web Console
The Web console is a general application to control or manage the Hitachi
Compute Blade system. By connecting between the management module
installed in the system and the user system console on the network, you can
display the system status and failed parts, and set up the configuration.
The Web console is connected to the management LAN port #0 on
management module. The management LAN port #0 is a standard RJ45
connector and accepts both a cross-over cable and straight-through cable.

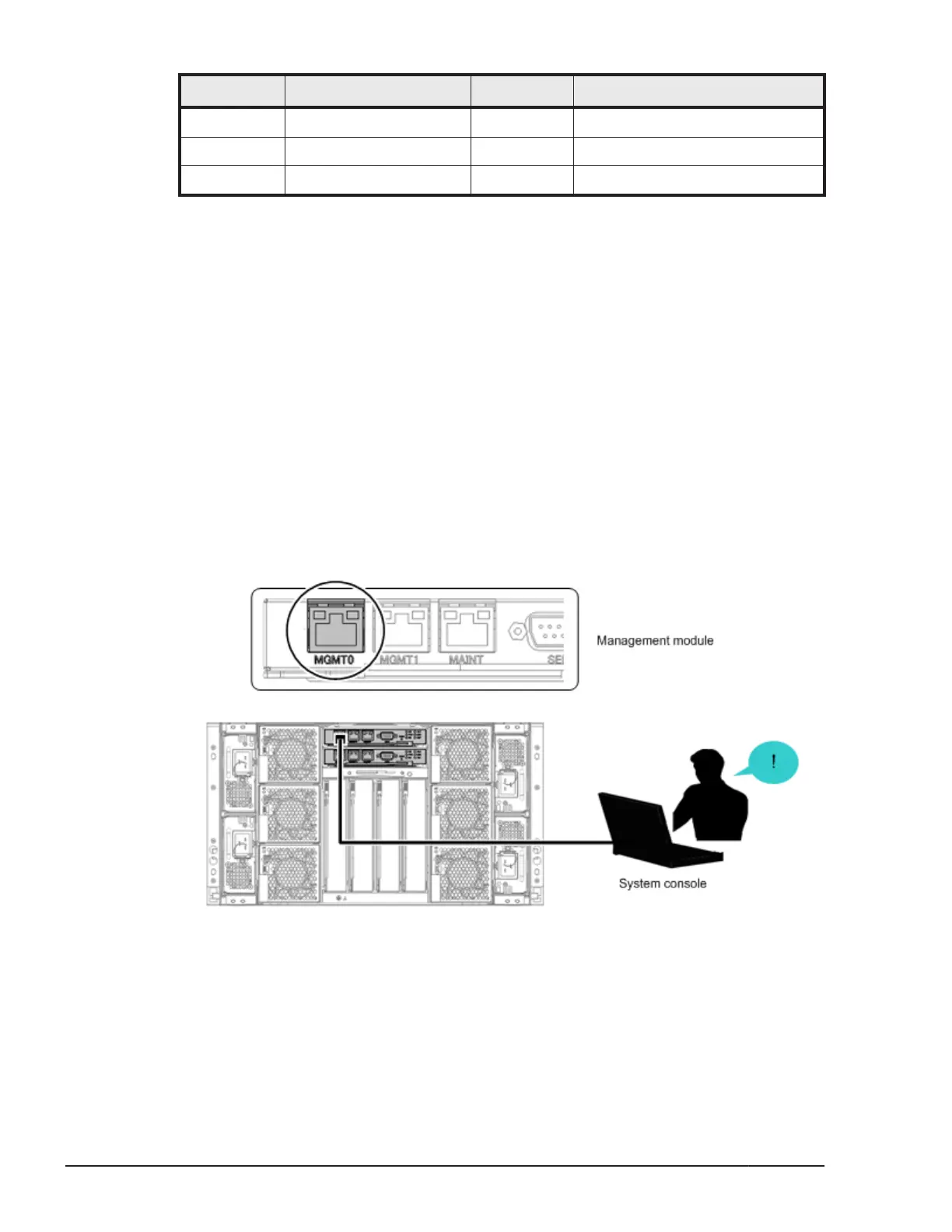

Figure 1-4 Connecting the system console
LCD Touch Console
A LCD touch console unit is the optional product. Connecting it to USB port of
the front panel in server chassis, it is easy to display the system status and
failed parts, and set up the configuration without a system console and Web
console application.
