Hitachi Compute Blade 500 Series - Switches, Indicators and Connectors (Full-Wide Blade)

Location Name State Description
MIS Amber-On Unsupported combination
of the DIMM, CPU, and
HDD.
TEMP Amber-On The maximum temperature
limit was exceeded.
MEM Amber-On A memory failure was
detected.
STOP BP Amber-On SAS Backplane failure was
detected.
CPU1 Amber-On CPU1 failure was detected.
CPU2 Amber-On CPU2 failure was detected.
Notes:
1. When using the USB port of KVM cable except keyboard and mouse, you should use
the device with a rated maximum current limit 500 mA per two ports, or the USB
device that can be external powered.
2. When POWER LED starts blinking from lighting solid, release the button. If you press
the power switch for six seconds or more, the power may turn on after forced turn-
off. If so, check that HDD access LED is not illuminated, and then press and hold the
power button for four seconds or more.
3. Error cannot be displayed while from pressing the power button until turning on the
main power.
Switches, Indicators and Connectors (Full-wide blade)

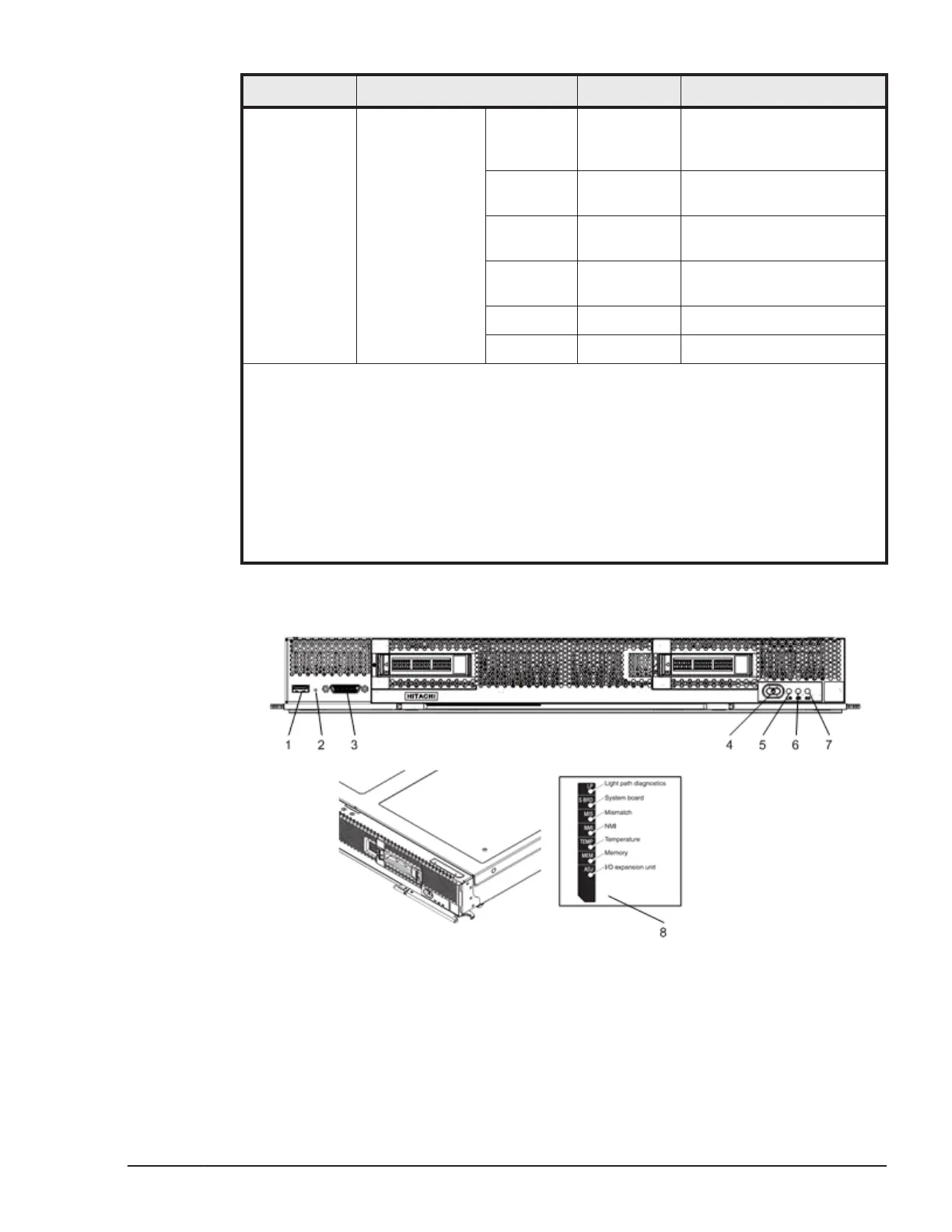

Figure 1-20 Server Blade
