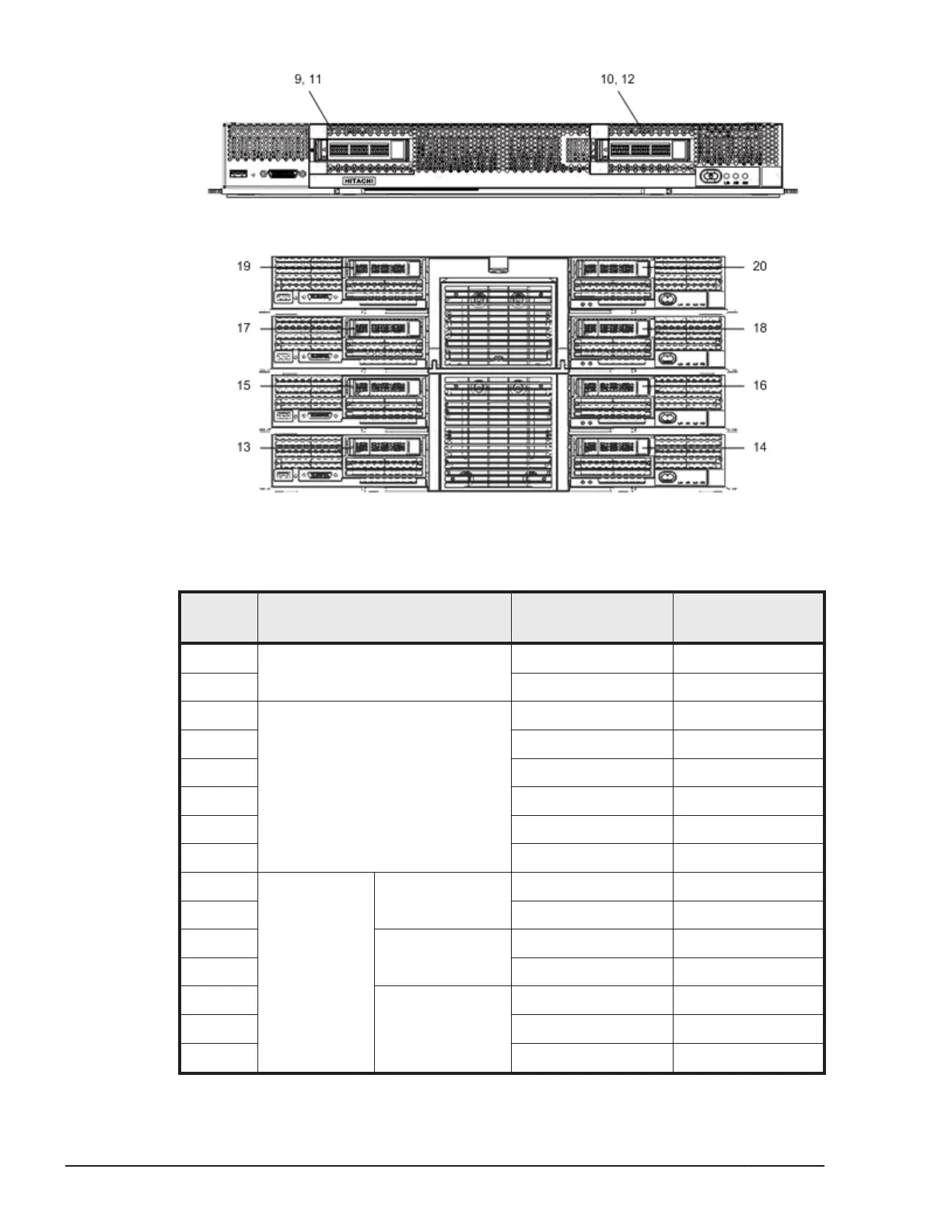

Figure 1-23 Full-wide Blade
Figure 1-24 Full-wide Blade (CB 520X B1/B2)
Table 1-11 HDD slot and order of installation
Location Form factor Slot
Order of
installation
1 Half-wide blade HDD slot 0 1
2 HDD slot 1 2
3 Storage expansion blade HDD expansion slot 0 1
4 HDD expansion slot 1 2
5 HDD expansion slot 2 3
6 HDD expansion slot 4 4
7 HDD expansion slot 5 5
8 HDD expansion slot 6 6
9 Full-wide blade LSI SAS 2008 HDD slot 0 1
10 HDD slot 1 2
11 LSI SAS 2004 HDD slot 0 1
12 HDD slot 2 2
13 SMP configuration HDD slot 0 1
14 HDD slot 1 1
15 HDD slot 0 2
