Hitachi CU-HD1500 - Video Frame Rate Setting; Dip Switch Setting on CUH1200-MAIN Board

25
Service information
Video frame rate setting
The CU-HD1500 is switchable for video frame rate between 59.94 Hz and 50 Hz.
The setting method is offered by the dip switch SW3–No.1 on CUH1200-MAIN board.
When the dip switch SW6–No.1 is turned ON, the video frame rate can be switched by the dip
switch SW3–No.2.

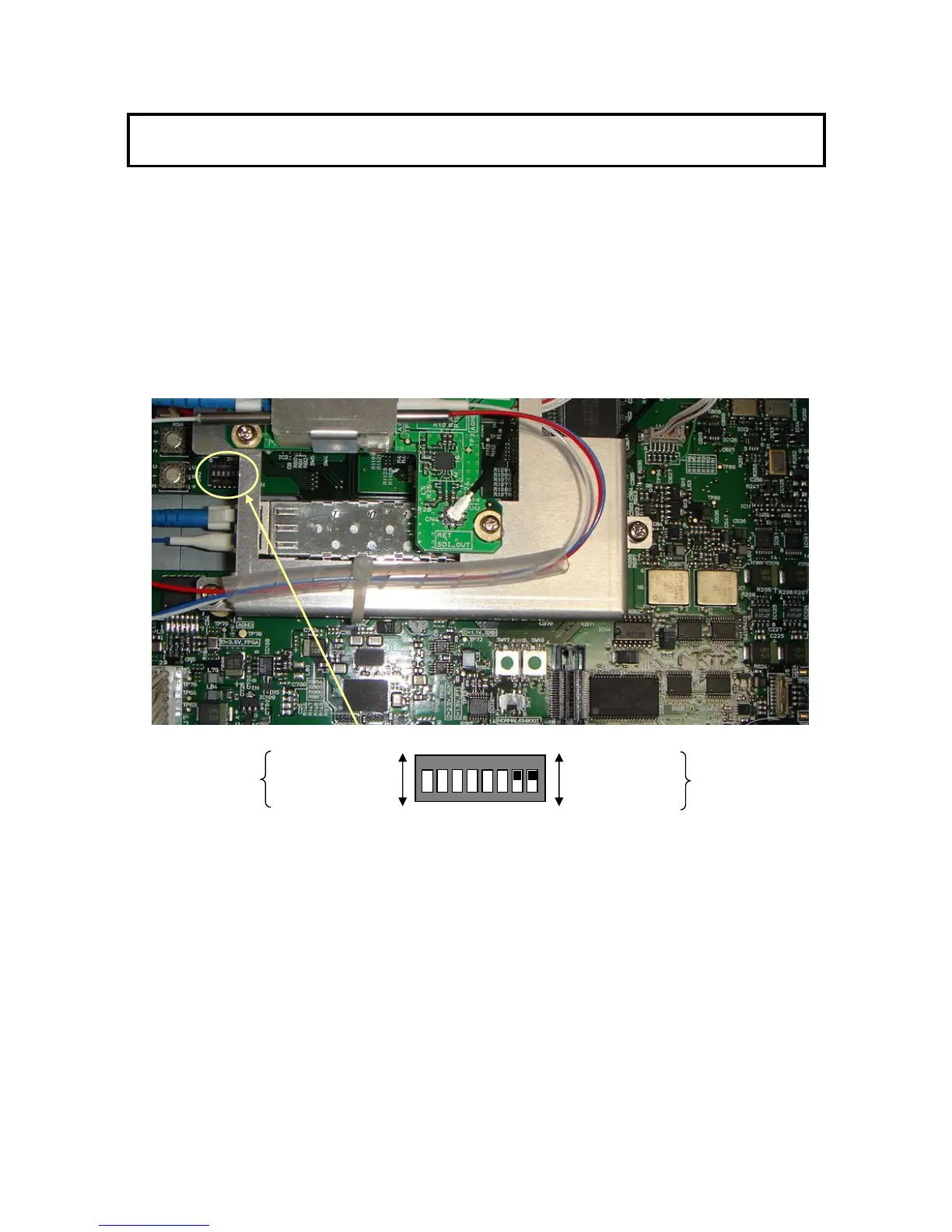

Dip switch setting on CUH1200-MAIN Board
NOTICE
Set both camera and CCU to same video frame rate independently.
59.94 Hz (default)
SW3
50 Hz
<SW3–No.2>
Disable
Enable (default)
<SW3–No.1>
Availability for
SW3-No.2
1
2
3
4
O N
5
6
7
8
