Hitachi DVPF3E - Connections; Rear Panel Connection Ports

–
13
–
EN
2C15
English
CONNECTIONS
1. AERIAL Jack
Connect your antenna, Cable Box, or Direct
Broadcast System.
2. RF OUT Jack
Use the supplied aerial cable to connect this jack
to the ANTENNA IN Jack on your TV.
3. AV2 (DECODER)
Socket
Connect 21-Pin scart cable here and to the 21-Pin
scart jack of a decoder.
4. AV1 (TV) Socket
Connect 21-Pin scart cable here and to the 21-Pin
scart jack of a TV.
5. S-VIDEO OUT Jack (DVD only)
Connect an optional S-Video cable here and to
the S-Video In jack of a television.
6. ANALOG AUDIO OUT Jacks (DVD only)
Connect the supplied audio cables here and to the
Audio In jacks of a television or other audio
equipment.
7. DIGITAL COAXIAL AUDIO OUT Jack (DVD only)
Connect an optional coaxial digital audio cable
here and to the Coaxial Digital Audio In jack of a
decoder or audio receiver.
8. DIGITAL OPTICAL AUDIO OUT Jack (DVD only)
Connect an optional optical digital audio cable
here and to the Optical Digital Audio In jack of a
decoder or audio receiver.
9. AC POWER CORD
Connect to a standard AC outlet to supply power
to the DVD/VCR.
AERIAL
RF OUT
AV2 (DECODER)
DVD/VCR
AV1 (TV)
DVD
DIGITAL
AUDIO OUT
L
R
COAXIAL OPTICAL
ANALOG
AUDIO OUT
S-VIDEO
OUT
VCR
1
2435678
9

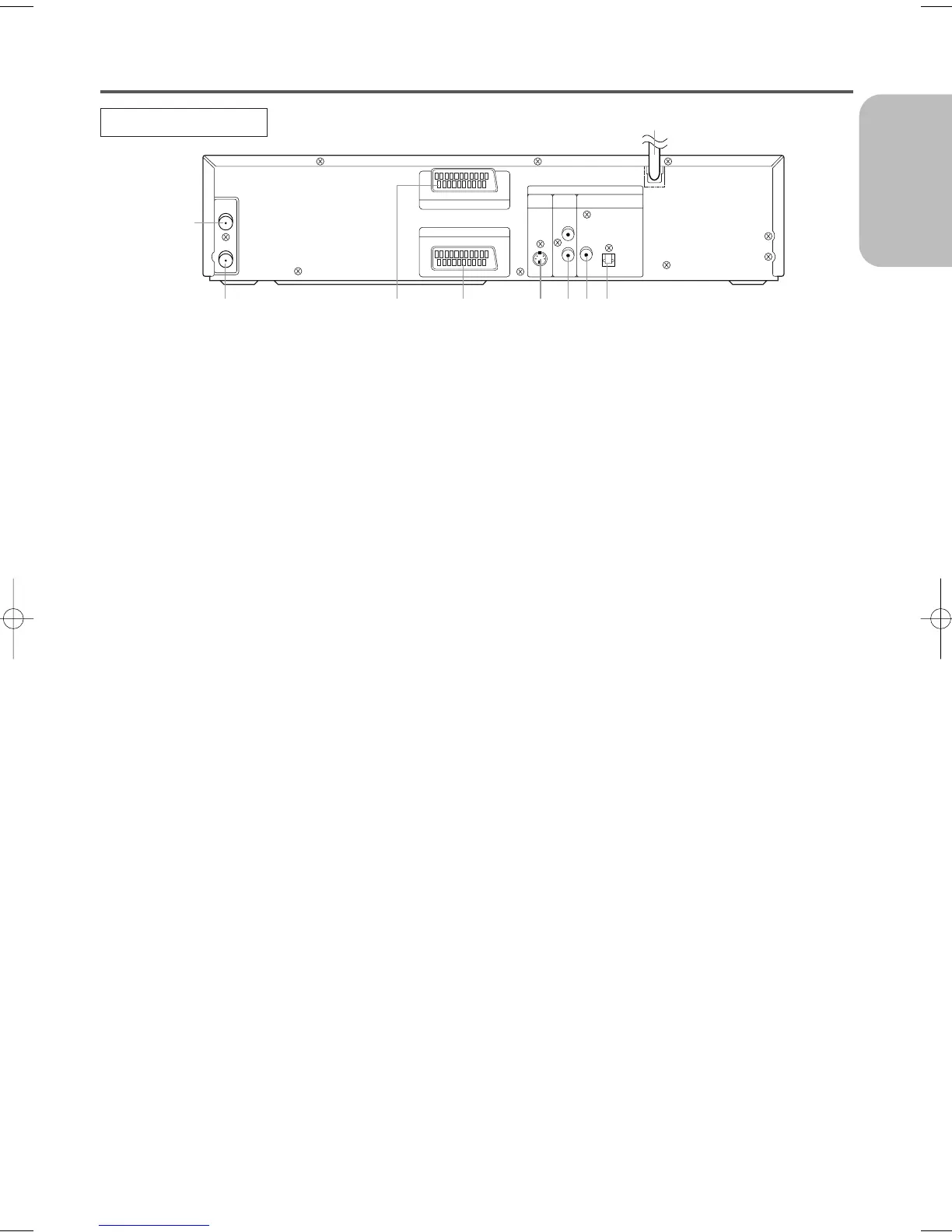

REAR VIEW
