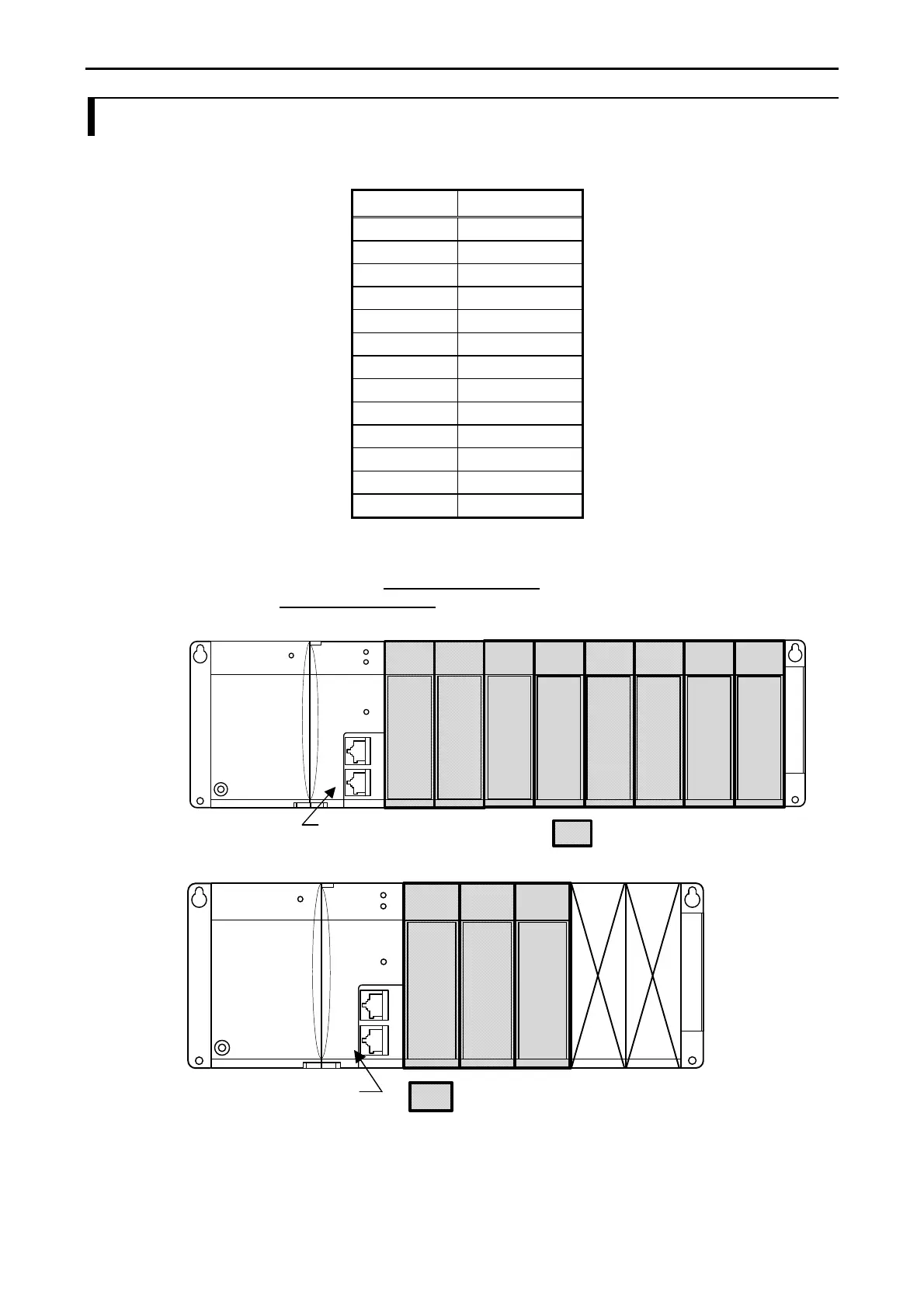

Chapter 1 Introduction
1.4 Notes to use
(1) Please note the master CPU type to control this module
Table 1.3 supported CPU
CPU type supported or not
EH-CPU104 not supported
EH-CPU208 not supported
EH-CPU308 not supported
EH-CPU316 not supported
EH-CPU448 supported
EH-CPU516 supported
EH-CPU548 supported
EH-CPU104A not supported
EH-CPU208A not supported
EH-CPU308A supported
EH-CPU316A supported
EH-CPU448A supported
EHV-CPU supported
(2) It is possible for EHV-CPU to use 8 pcs of EH-ETH2 at once
(*1)
with one basic base unit. And it is possible for
EH-CPU to use
2 pcs of EH-ETH2 at once
(*1)
with one basic base unit. Can not use it on the extension base units.
0 1 2 3 4 5 6 7
Slot No.
EH-ETH2 mountable slot
EHV-CPU or EH-CPU516/548
(*2)
0 1 2 3 4
Slot No.
EH-ETH2 mountable slot
Other supported CPUs
*1: When you use EH-ETH2 together with EH-ETH, the number is the total number of EH-ETH and EH-ETH2.
*2: If you use EH-BS3/5/8, the mountable slot is No.0 to 2.
(3) The power down operation must be required when mounting or removing this module and connecting or removing
the external wiring.
1-3
