5.4.4 Downloading and Uploading of Setup file
A user can download to host computer (PC or WS) via EH-ETH2 Configurator. A user can also upload a
stored setup.data file to EH-ETH2 from host computer. You do not need to change an operation mode (dip
switch setting) when you download the setup file. On the other hand, when you upload the setup file, it is
required to change the operation mode into Configuration mode.
The extension of the setup file is *.et2 ( " * " is an arbitrary file name ).
Moreover, setup file ( setup.dat ) downloaded from EH-ETH can be up-loaded to EH-ETH2 as it is.
Please refer to tthe "Procedure of selecting setup file of EH-ETH" of next page about a concrete procedure.
(1) Window structure
Setup file window is shown in Figure 5.13.
1. Menu bar
2. Work area
1)
3)
6)
4)
7)
8)
2)
5)

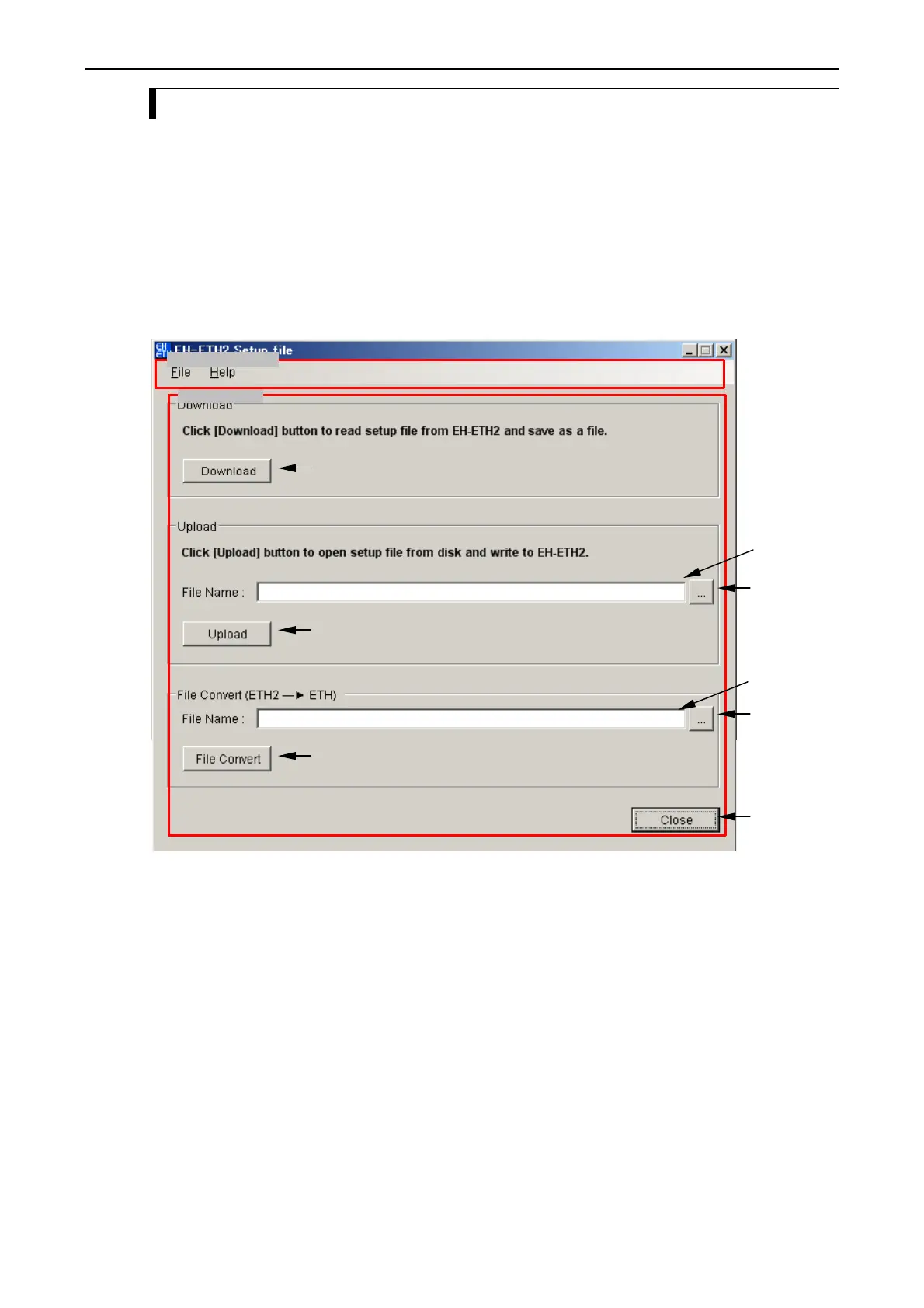

Figure 5.13 Setup file window
The window consists of Menu bar and Work area.
1. Menu bar
[File] The operations in work area can be executed from this too.
[Help] The help window will open.
2. Work area
Refer to “(2) Operation buttons“ for details.
