Chapter 5 Configuration of Communication parameters
5.4.3 Configuration of ASR I/O area
When using ASR connections, it is required to specify the I/O area in the CPU module as the sending
source area and the receiving destination area. The configuration procedure for these usages is described
here.
(1) Window structure

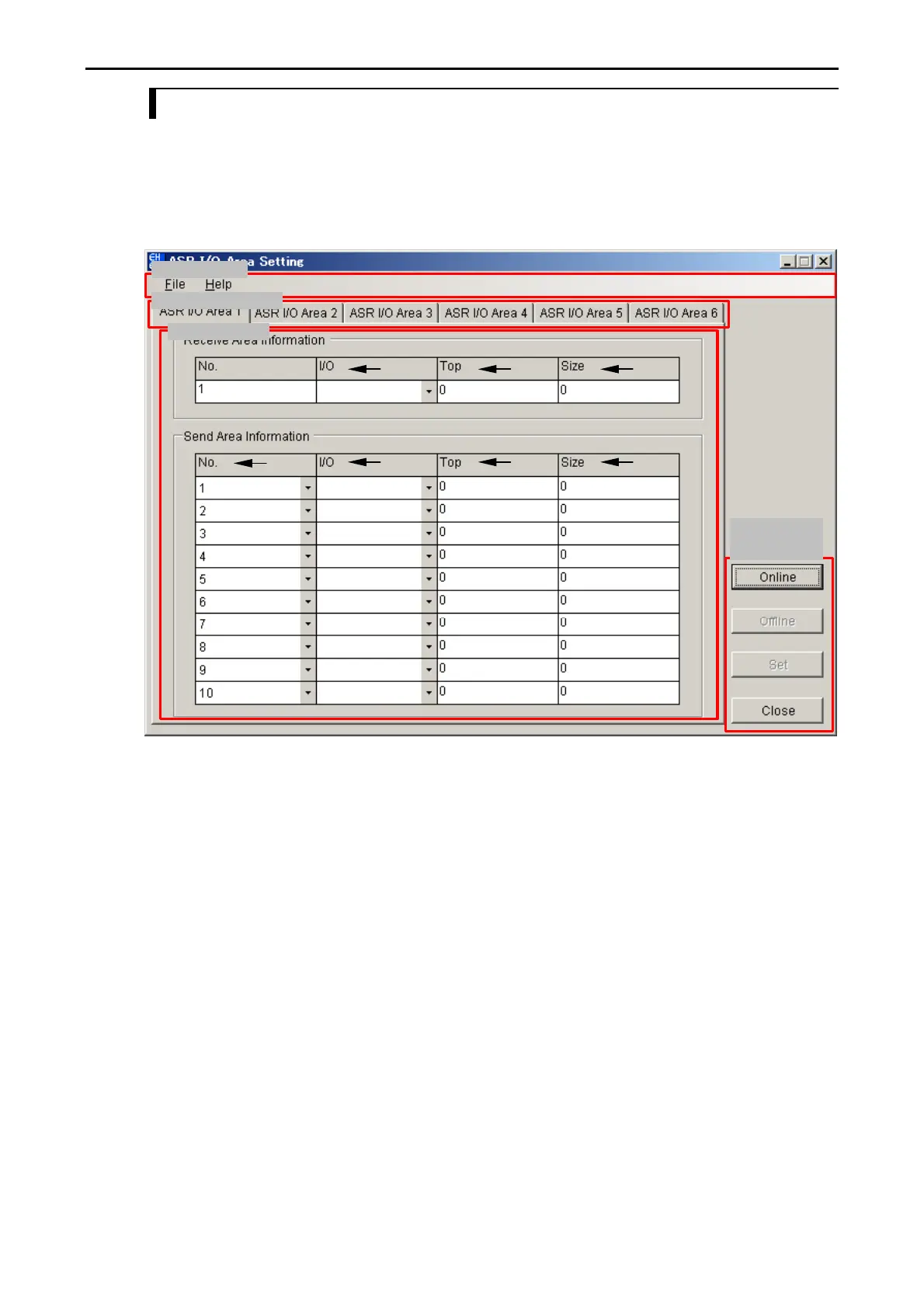

ASR I/O Area Setting window is shown in Figure 5.12.
1. Menu bar
2. Connection tab
3. Input area
4. Operatio
n
area
1) 2)
3)
4)
5) 6)
7)
Figure 5.12 ASR I/O Area Setting window
1. Menu bar
[File] The operations can be executed from this too.
[Help] The help window will open.
2. Connection tab
To select a connection number to configure.
3. Input area
Refer to “(2) Input items” for details.
4. Operation area
Refer to “(3) Operation buttons” for details.
5-24
