C.5 Port 5 Block Diagrams

P5nDDR

WDDR5

WDR5

P5n

RDR5

RPOR5

P5nDR

Reset

Internal data bus

Reset

WDDR5

WDR5

RDR5

RPOR5

n = 0 to 2

: Write to P5DDR

: Write to P5DR

: Read P5DR

: Read port 5

Legend

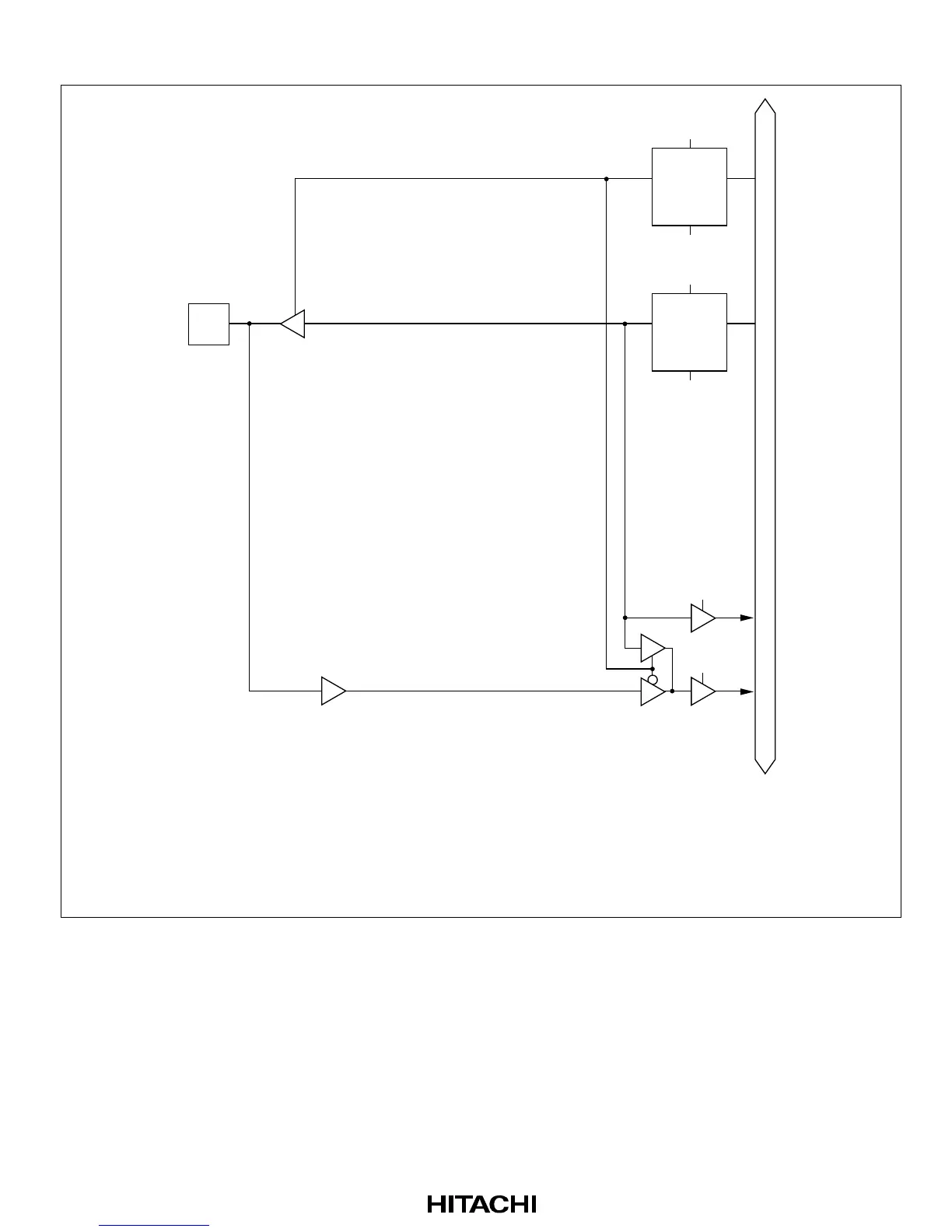

Figure C-5 (a) Port 5 Block Diagram (Pins P50 to P52)

(H8S/2646, H8S/2646R, H8S/2645)
