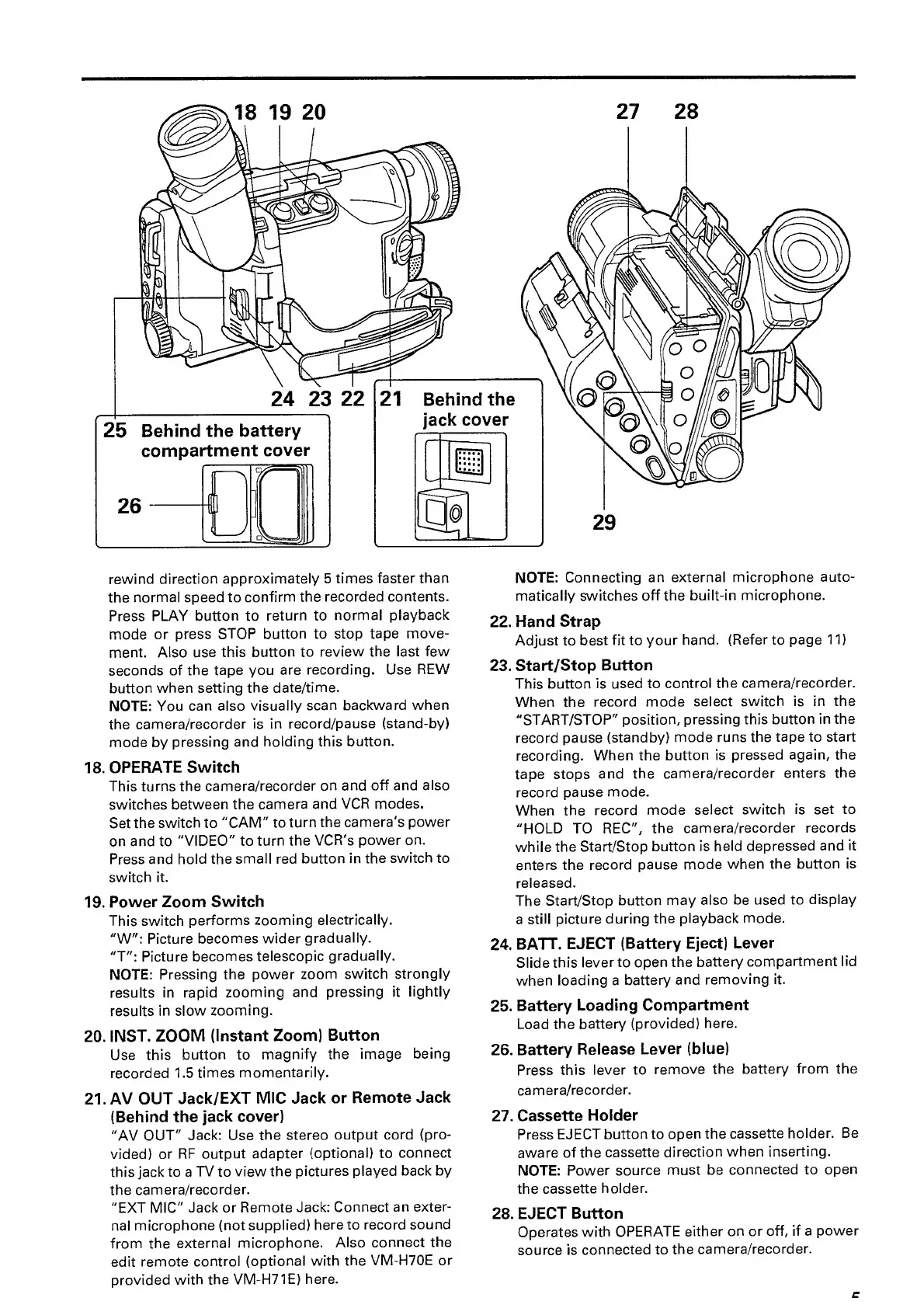

rewind direction approximately 5 times faster than
the normal speed to confirm the recorded contents.
Press PLAY button to return to normal playback
mode or press STOP button to stop tape move¬
ment. Also use this button to review the last few
seconds of the tape you are recording. Use REW
button when setting the date/time.
NOTE: You can also visually scan backward when
the camera/recorder is in record/pause (stand-by)
mode by pressing and holding this button.
18. OPERATE Switch
This turns the camera/recorder on and off and also
switches between the camera and VCR modes.
Set the switch to "CAM" to turn the camera's power
on and to "VIDEO" to turn the VCR's power on.
Press and hold the small red button in the switch to
switch it.
19. Power Zoom Switch
This switch performs zooming electrically.
"W": Picture becomes wider gradually.
"T": Picture becomes telescopic gradually.
NOTE: Pressing the power zoom switch strongly
results in rapid zooming and pressing it lightly
results in slow zooming.
20. INST. ZOOM (Instant Zoom) Button
Use this button to magnify the image being
recorded 1.5 times momentarily.
21. AV OUT Jack/EXT MIC Jack or Remote Jack
(Behind the jack cover)
"AV OUT" Jack: Use the stereo output cord (pro¬
vided) or RF output adapter (optional) to connect
this jack to a TV to view the pictures played back by
the camera/recorder.
"EXT MIC" Jack or Remote Jack: Connect an exter¬
nal microphone (not supplied) here to record sound
from the external microphone. Also connect the
edit remote control (optional with the VM-H70E or
provided with the VM-H71E) here.
NOTE: Connecting an external microphone auto¬
matically switches off the built-in microphone.
22. Hand Strap
Adjust to best fit to your hand. (Refer to page 11)
23. Start/Stop Button
This button is used to control the camera/recorder.
When the record mode select switch is in the
"START/STOP" position, pressing this button in the
record pause (standby) mode runs the tape to start
recording. When the button is pressed again, the
tape stops and the camera/recorder enters the
record pause mode.
When the record mode select switch is set to
"HOLD TO REC", the camera/recorder records
while the Start/Stop button is held depressed and it
enters the record pause mode when the button is
released.
The Start/Stop button may also be used to display
a still picture during the playback mode.
24. BATT. EJECT (Battery Eject) Lever
Slide this lever to open the battery compartment lid
when loading a battery and removing it.
25. Battery Loading Compartment
Load the battery (provided) here.
26. Battery Release Lever (blue)
Press this lever to remove the battery from the
camera/recorder.
27. Cassette Holder
Press EJECT button to open the cassette holder. Be
aware of the cassette direction when inserting.
NOTE: Power source must be connected to open
the cassette holder.
28. EJECT Button
Operates with OPERATE either on or off, if a power
source is connected to the camera/recorder.
