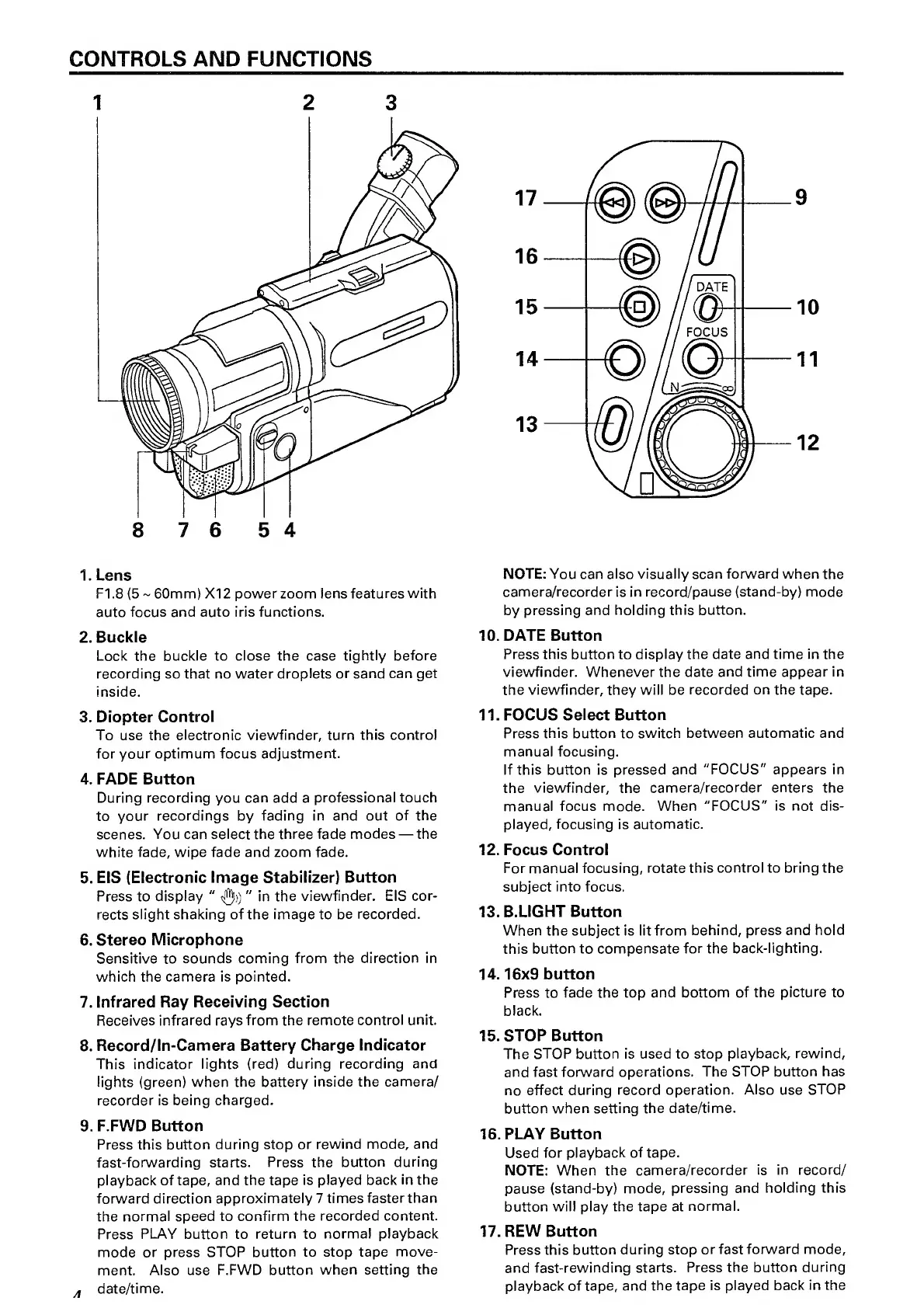

CONTROLS AND FUNCTIONS
1 2 3
1. Lens
F1.8 (5 ~ 60mm) X12 power zoom lens features with
auto focus and auto iris functions.
2. Buckle
Lock the buckle to close the case tightly before
recording so that no water droplets or sand can get
inside.
3. Diopter Control
To use the electronic viewfinder, turn this control
for your optimum focus adjustment.
4. FADE Button
During recording you can add a professional touch
to your recordings by fading in and out of the
scenes. You can select the three fade modes — the
white fade, wipe fade and zoom fade.
5. EIS (Electronic image Stabilizer) Button
Press to display " " in the viewfinder. EIS cor¬
rects slight shaking of the image to be recorded.
6. Stereo Microphone
Sensitive to sounds coming from the direction in
which the camera is pointed.
7. Infrared Ray Receiving Section
Receives infrared rays from the remote control unit.
8. Record/In-Camera Battery Charge Indicator
This indicator lights (red) during recording and
lights (green) when the battery inside the camera/
recorder is being charged.
9. F.FWD Button
Press this button during stop or rewind mode, and
fast-forwarding starts. Press the button during
playback of tape, and the tape is played back in the
forward direction approximately 7 times faster than
the normal speed to confirm the recorded content.
Press PLAY button to return to normal playback
mode or press STOP button to stop tape move¬
ment. Also use F.FWD button when setting the
yf date/time.
9
10
11
12
NOTE: You can also visually scan forward when the
camera/recorder is in record/pause (stand-by) mode
by pressing and holding this button.
10. DATE Button
Press this button to display the date and time in the
viewfinder. Whenever the date and time appear in
the viewfinder, they will be recorded on the tape.
11. FOCUS Select Button
Press this button to switch between automatic and
manual focusing.
If this button is pressed and "FOCUS" appears in
the viewfinder, the camera/recorder enters the
manual focus mode. When "FOCUS" is not dis¬
played, focusing is automatic.
12. Focus Control
For manual focusing, rotate this control to bring the
subject into focus.
13. B.LIGHT Button
When the subject is lit from behind, press and hold
this button to compensate for the back-lighting.
14.16x9 button
Press to fade the top and bottom of the picture to
black.
15. STOP Button
The STOP button is used to stop playback, rewind,
and fast forward operations. The STOP button has
no effect during record operation. Also use STOP
button when setting the date/time.
16. PLAY Button
Used for playback of tape.
NOTE: When the camera/recorder is in record/
pause (stand-by) mode, pressing and holding this
button will play the tape at normal.
17. REW Button
Press this button during stop or fast forward mode,
and fast-rewinding starts. Press the button during
playback of tape, and the tape is played back in the
