Hitachi IJ UX User Manual

●Touch screen coordinate correction 7-29
Operationmanagement 2015.07.0712:45
OFFLINE
STOP
×
0h
Ink Operating Time
1,200h
Ink Alarm Time
（Standard Value：1200）
0h
Cumulative Op.Time
10６７K/S100A
Ink/Makeup
100
Ink Viscosity
（Standard Value：100）
0.255MPa
Ink Pressure
（Standard Value：0.255）
5.7kV
Deflection Voltage
11
Excitation V-ref
（Range：0-19）
68.9kHz
Excitation Frequency
20℃
Ambient Temperature
（Correct Range：0-45）
0
Print Count
Calibrate touch
screen coordinates
SETTINGS LOGINEDITADJUSTSAVEOPENHOME

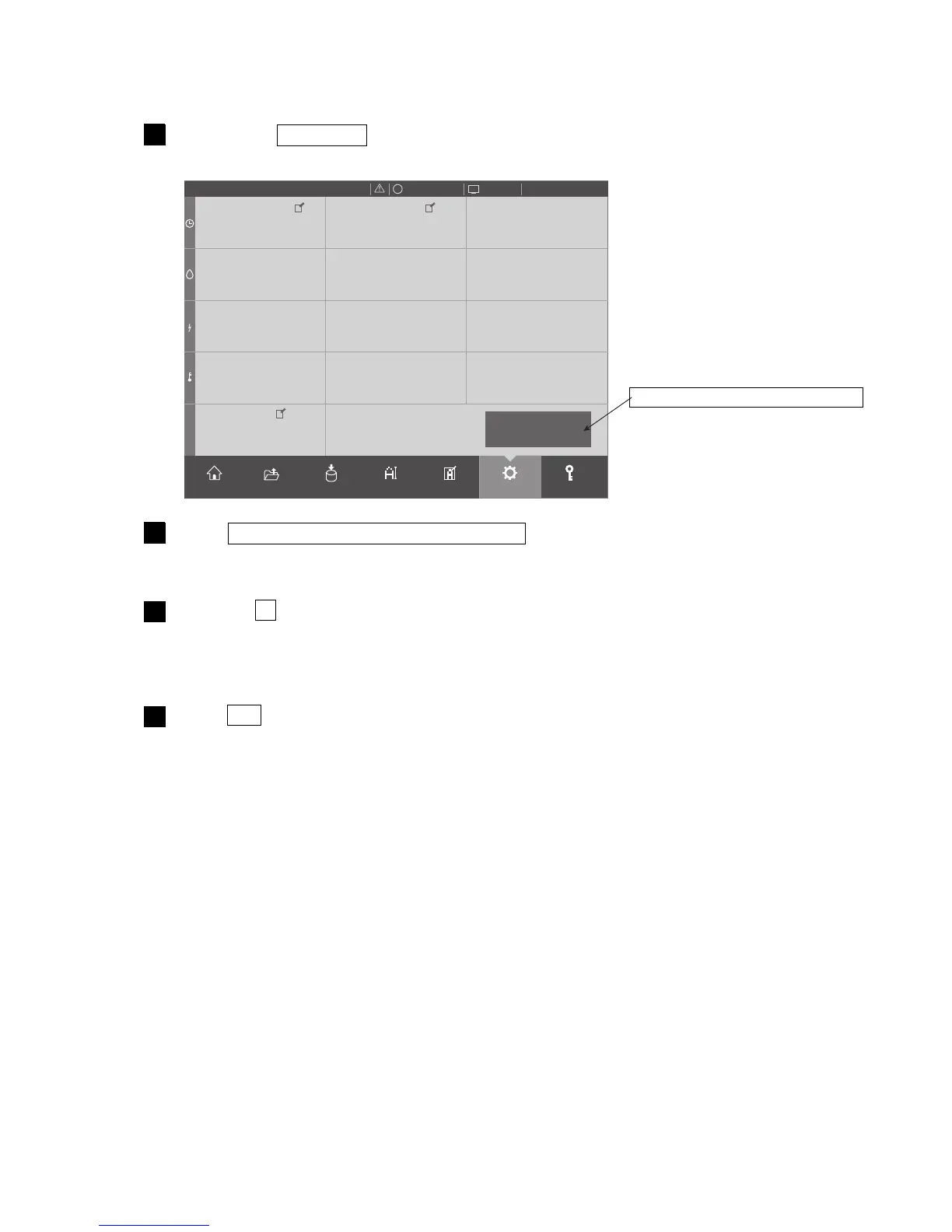

(b) New HMI
Press menu SETTINGS .
The Operation management screen is displayed.
1
Calibrate touch screen coordinates
Press Calibrate touch screen coordinates .
The Touch screen coord. screen is displayed.
2
Press the + at the top left and bottom right of the screen until the Touch Screen
Coordinate Correction message is displayed.
The Touch Screen Coordinate Correction message is displayed.
3
Press OK .
The coordinates are corrected and the touch screen returns to the Operation management screen.
4
