3.3.6 Basic operation to change the settings
3.3.6-1 Previous HMI
(1) Overview
●There are 3 types of settings.
No. Classification
Set value confirmation
method
Set value change method
1 Setting of value
The numerical value is dis-
played on the numeric but-
tons.
Display the numerical
window by pressing the
numeric button and input the
value.
2
Setting with few selections.
(All selection buttons are
displayed: mainly a choice
between the two)
The pressed button
becomes yellow.
Press the applicable button.
3
Settings with many selections.
(When a button is pressed, a
selection menu is displayed in a
window.)
The set value selection is
displayed on the input
button.
Display the selection menu
window by pressing the but-
ton and select the
relevant item.

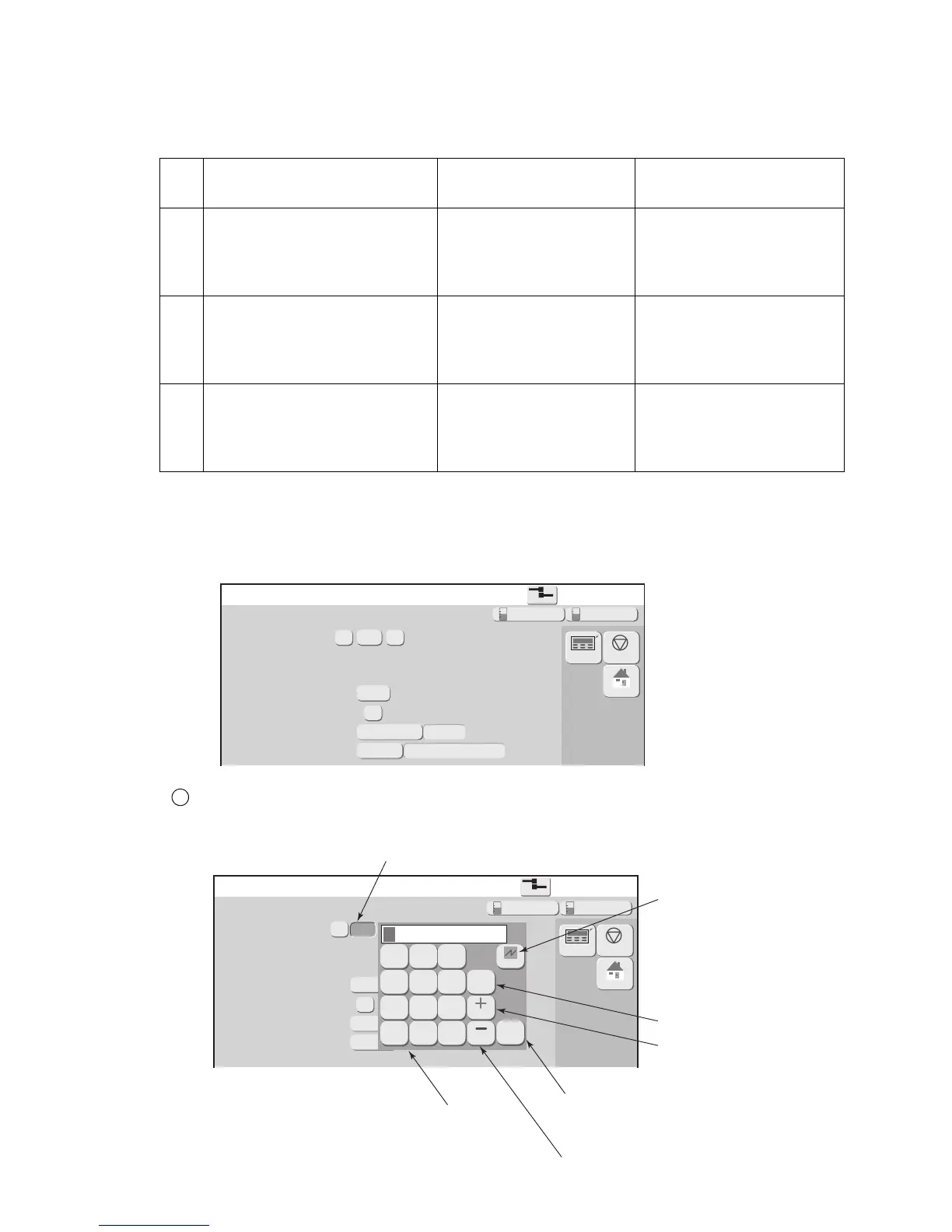

(2) Operation (Maintenance “Excitation V update” screen is used as an
example.)
●There are 3 types of settings.
1
“Excitation V-ref.” setting (Value input)
Display the numerical window by pressing the numbers button and input the value.
Minimum value is input.
Each time this button is
pressed, the set value is
increased by 1.
The numerical window is closed
and the input value is reflected
on the screen.
Each time this button is pressed,
the set value is decreased by 1.
Press the numeric button.
Numerical windows displayed.
To Next Page
