4.8.4 Set dot matrix, inter-character space, and other parameters
● Set the dot matrix, inter-character space, bold font, and bar code.
However, character sizes 30 x 40 and 36 x 48 cannot be set.
● The methods of setting is the same as fixed layout. See “4.7.4 Set dot matrix, inter-character space,
and other parameters” for details.

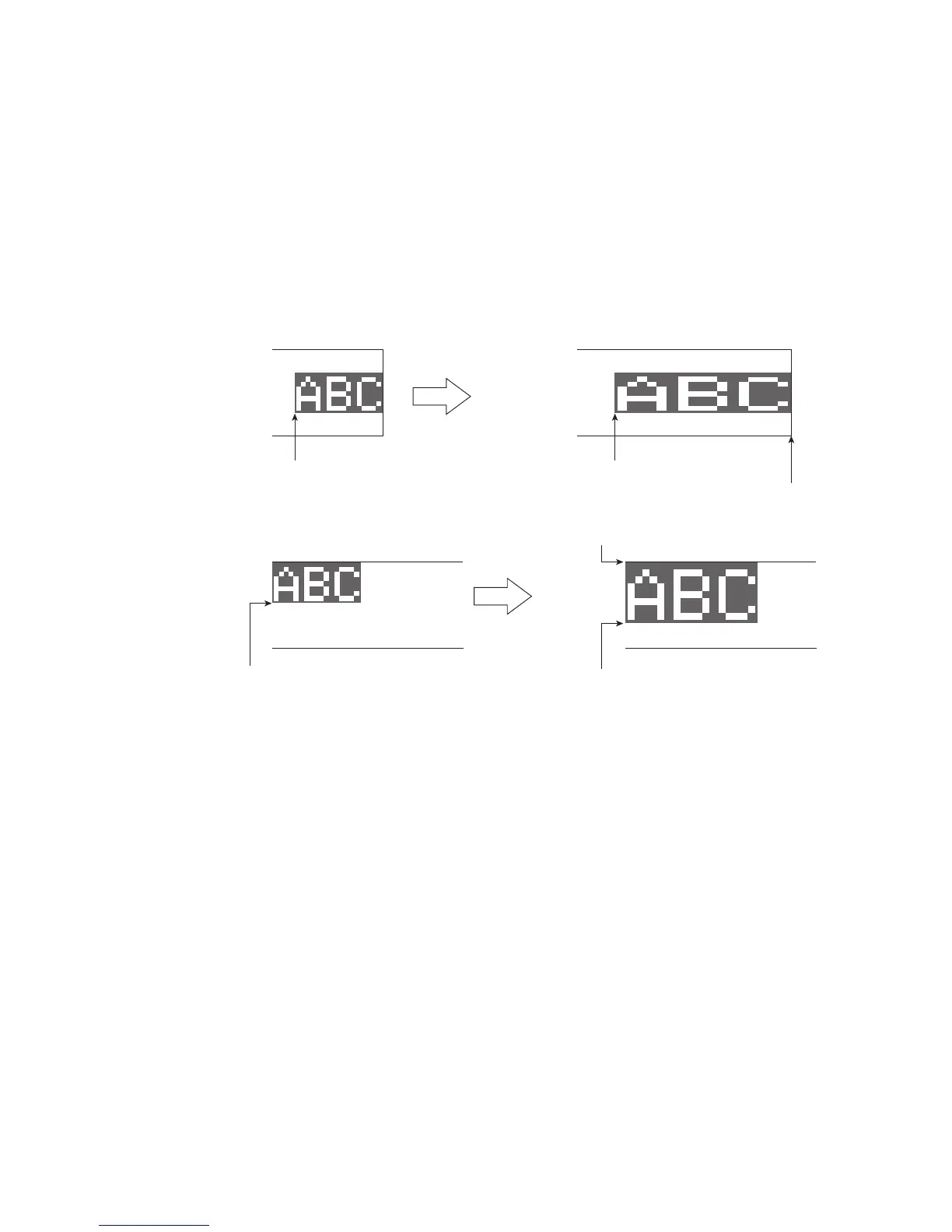

● The bottom-left coordinate of the selected print item is first fixed and adjust as follows:.
When changing the dot matrix, inter-character space, etc…, the top-right coordinate of the print
item can be over the limit of coordinate.
Should the top-right of the print item go beyond the limit of horizontal (X) coordinate, it will be
automatically adjusted to horizontal (X) coordinate =31999.
Should the top-right of the print item go beyond limit of vertical (Y) coordinate, it will be
automatically adjusted to vertical (Y) coordinate = 29 (3 lines upgrade) or 31 (4 lines or 5 lines
upgrade).
Char. size : 12×16
Bold font :
×1
Char. size : 12
×16
Bold font :
×2
Horizontal (X) coordinate = 31961 Horizontal (X) coordinate = 31922
Horizontal (X) coordinate = 31999
Char. size :
12
×16
Char. size :
18
×24
Vertical (Y) coordinate=31
Vertical (Y) coordinate=8
Vertical (Y) coordinate=16
