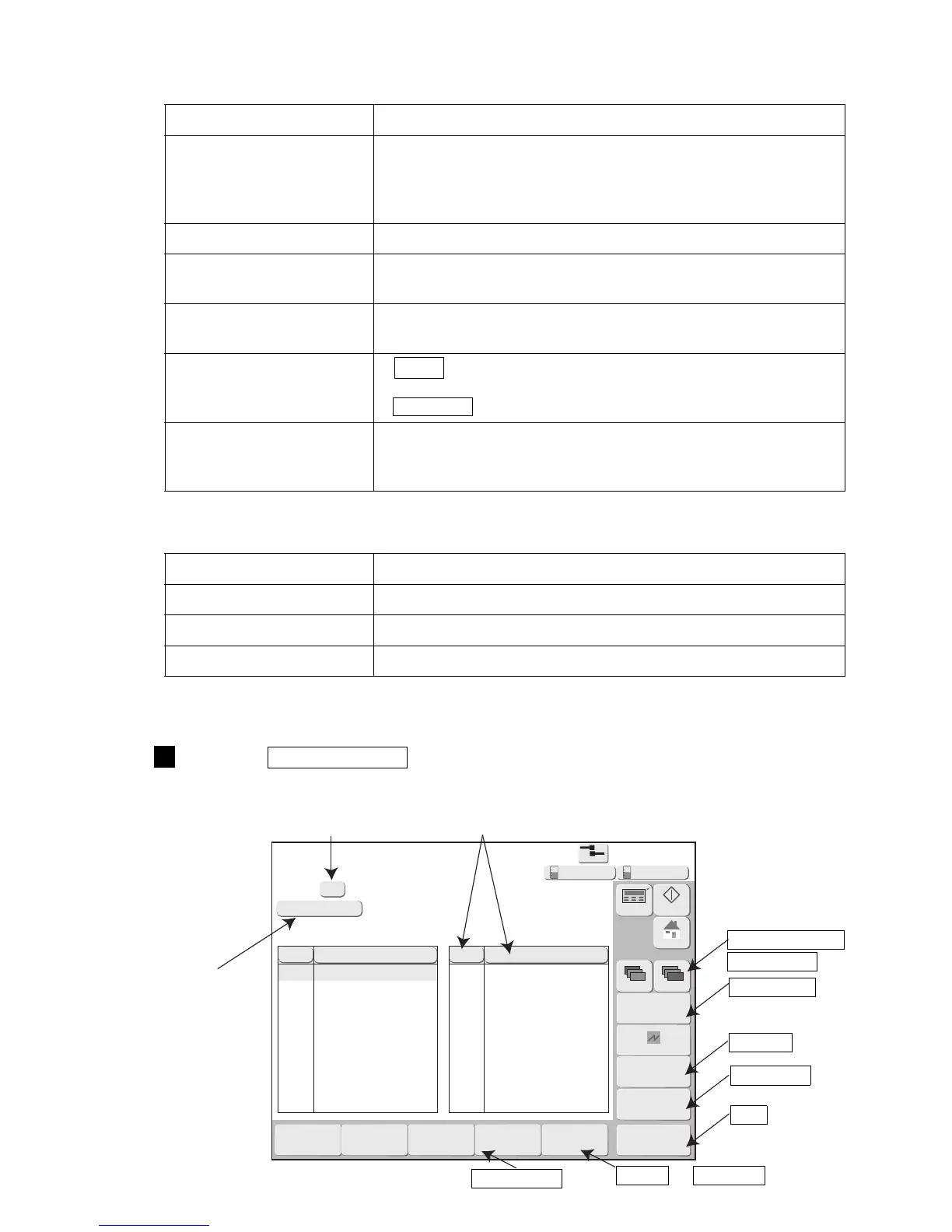

4-9 ●Call and print saved messages
Method of changing the message name list display (b) New HMI
Item Contents
Group
● Press the group folder icon.
● Only the messages which belong to the selected group are displayed.
● When "0:All message names" is selected, the message names of all
the groups are displayed.
Scroll up, Scroll down ● Switches the message name list display screen.
Sort
● The sort order can be switched by pressing the heading part of the
message name list display.
Display All
● Defines Group No. as "00" and the search conditions as space, then
displays message name list.
Details, Simple List
● Details displays the “Update date/time”, “Style”, as well as the
“No.” and “Message name”.
● Simple List displays the “No.” and “Message name”.
Preview
● When the message name is selected, the print image of the registered
print data can be checked.
● The print contents currently being printed are not affected.
●Style displayed in the Details mode shows the type of print format.
Types of Style
Type of style Meaning
Individual Individual setup of fixed layout.
Overall Overall setup of fixed layout
Free Set up of free layout.
(2) Operation
(a) Previous HMI
Press the Select message on the Print description screen.
The Select message screen is displayed.
●Only the UX-D,E displays a preview. (Preview is not displayed on the following screens.)
1
Search conditions
input
Group
Sort
Previous display ,
Next display
Select page
Display All
OK
Details or Simple list
Free number
Preview
To Next Page
