Chapter 5 Wiring
5 - 3
5.3 How to attach the Exclusive operator (NES1-OP)
Note) Please set SW4, SW5 on the board, before installation of exclusive operator (NES1-OP).

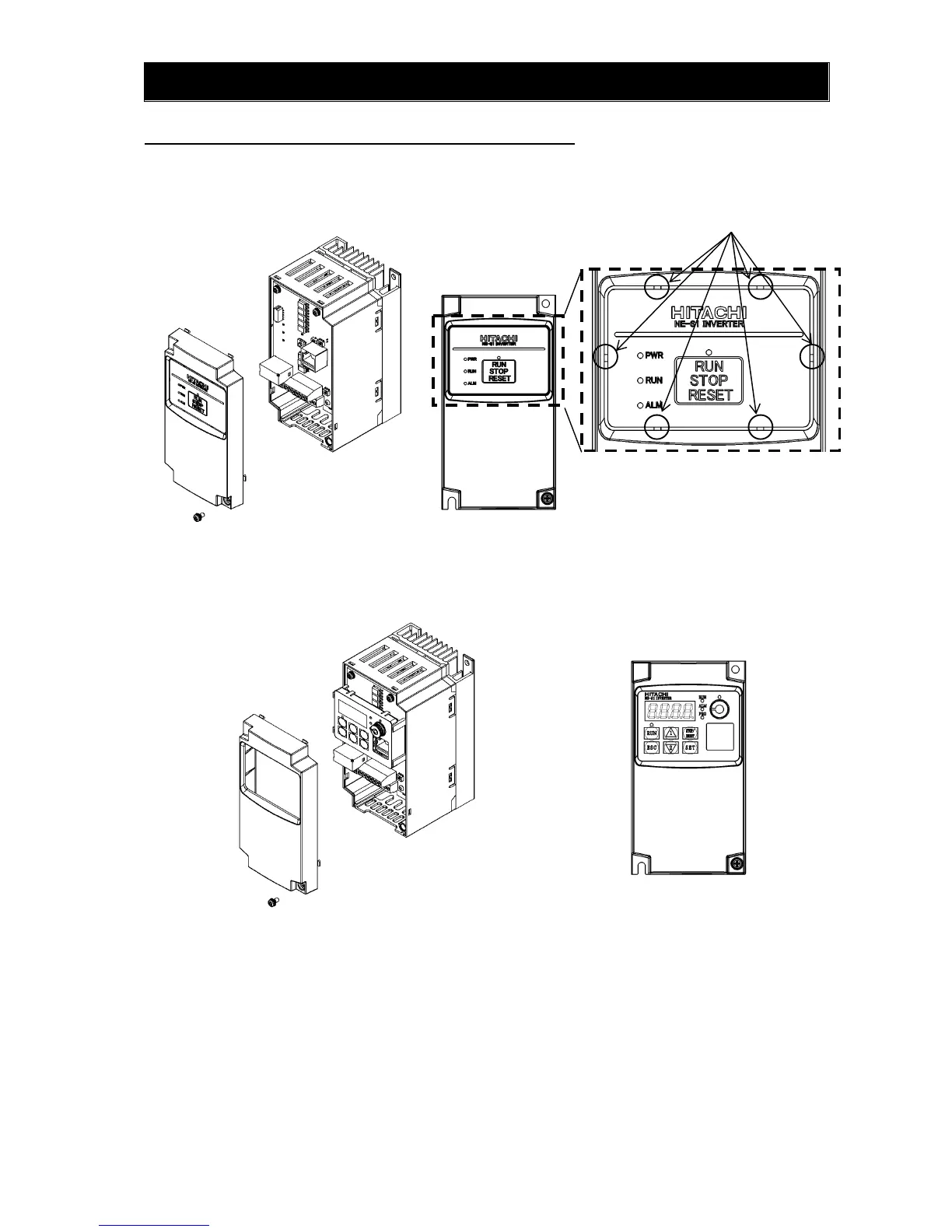

5) Figure of installation (NES1-OP)
1) Remove the front cover from main body
2) Cut the standard operator panel by in thin–blade-nipper and
take it off.
3) The connector of the exclusive operator (NES1-OP)
connect to the connector on the circuit board. And attach it
to put the circuit board.
4) Attach the front cover.
Cut (6 points)
