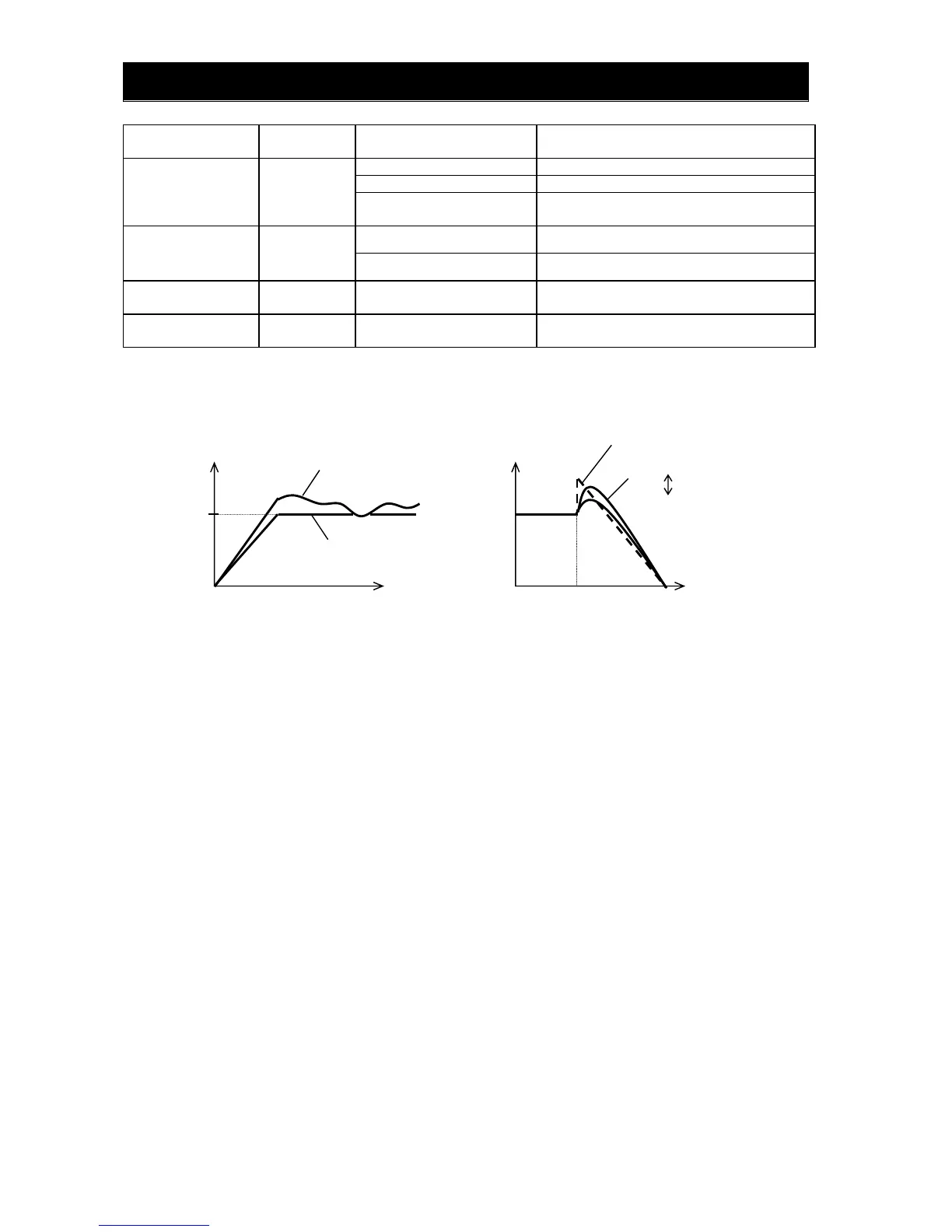

Chapter 7 Explanation of Functions
7 - 10
Item
Function
code
Data Description
AVR function select A081/A281
00 The AVR function is always enabled.
01 The AVR function is always disabled.
02
The AVR function is disabled at deceleration.
(*1)
AVR voltage select
A082/A282
200/215/220/230/240
Selectable on 200 V class inverter models
380/400/415/440/460/480
Selectable on 400 V class inverter models
AVR filter time
constant
A083 0.000～1.000 (s) See diagram below. (*2)
AVR deceleration
gain
A084 50.～200.(%) See diagram below. (*2)
*1 Disabling the AVR function at motor deceleration increases the energy loss on the decelerated motor
and decreases the energy regenerated on the inverter, which results in a shorter deceleration time.
*2 Operate regardless of the A081/A281.
Output voltage
A
082/A282
Time
Input voltage
Output voltage of A081 = 00 or 02.
Time
A
083＝0
Deceleration start
A084
Large
Small
Example) If set to A081 = 02
Output voltage
A
082/A282
