Hitachi RX - Setting High-Speed Printing

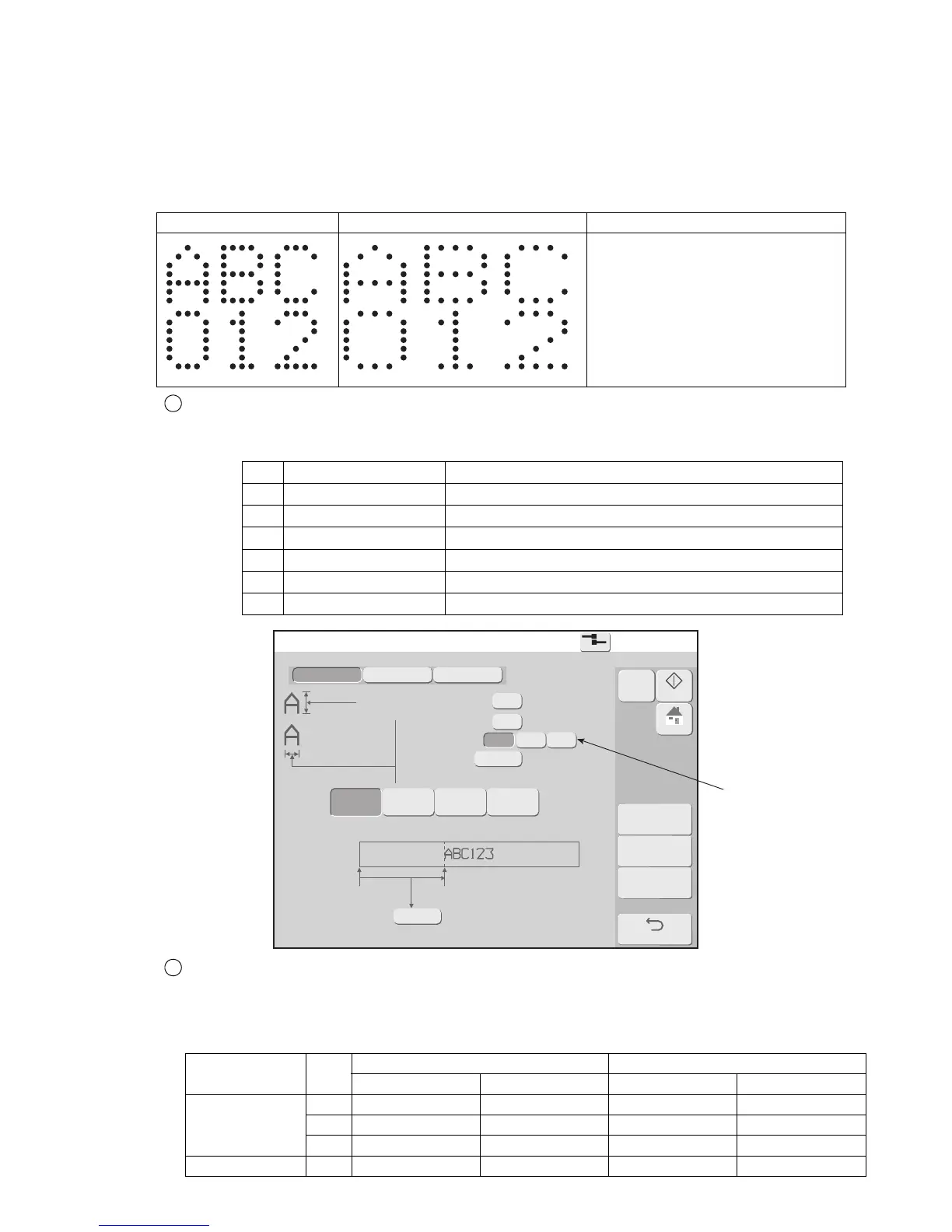

9-4 ●Setting high-speed print (Optional on RX-S)
Print specifications 2015.07.0712:45
Com=0
[Stop  ]
Changeunit
Print
format
Edit
message
Message name [ ]
Ink drop use
High-speed print
Character width
（1/1〜1/16）
（0〜3999）
Character height （0〜99）
９０
０１
０００２
Character
orientation
Printing method 2（１：Single scan ２：Interlaced ３：Mixed）
Print start
delay
Arrow : Prin-
ting direction
００００
Print start delay
（0〜9999）SC
Sensor Print start
0:ＡＢＣ
→
1:ＡＢＣ
←
←
→
ＡＢＣ
2:
ＡＢＣ
3:
M
Manual
Startup
HOME
Back
1st screen
2nd screen 3rd screen
HM
NM QM
High-speed print
HM mode NM mode Remarks
HM mode is equivalent to particle use
percentage of 1/1.
In the 2-line print setting, NM mode is
equivalent to ink drop use percentage
of 1/1.5.
If the line speed remains the same,
print width in the NM mode will widen
by 1.5 times with respect to HM mode.
Setting high-speed printing (Optional on RX-S)
(1) Overview
● When the character size setting is 5 x 7 or 5 x 8 dots, and print line is set to 2 or 3 lines, three modes of HM,
NM or QM can be selected.
By selecting the mode, high quality printing result can be ensured according to the line speed.
Necessary conditions to perform high-speed print
● When all necessary conditions from Nos. 1 to 7 are satisfied, high-speed print HM, NM or QM
mode can be selected.
No. Item Condition of nozzle diameter is 65μm
1 Character size Character size is 5 x 7 or 5 x 8 for all printing items.
2 Print line Number of lines is 2 or 3 in all columns.
3 Line spacing Line spacing is equal in all columns.
4 Barcode No barcode is set for any print items.
5 Character orientation Set value of character orientation is 0 or 1.
6 Ink drop use percentage Ink drop use percentage: 1/1
Type of high-speed print and number of vertical dots used
● Number of vertical dots used in high-speed print is shown in Table below.
● When calculating printing preparation time, etc., pay attention to number of vertical dots.
Number of vertical dots used in the nozzle diameter is 65μm
Ink drop use rate Type
Number of vertical dots used in 2-line Number of vertical dots used in 3-line
Character size 5x7 Character size 5x8 Character size 5x7 Character size 5x8
1/1
HM 14 16 21 24
NM 21* 24* 28 32
QM 21* 24* 35 40
1/2 - 28 32 42 48
1
2
(Note) * When 2-line printing is set, setting of NM ans QM will be the same.
