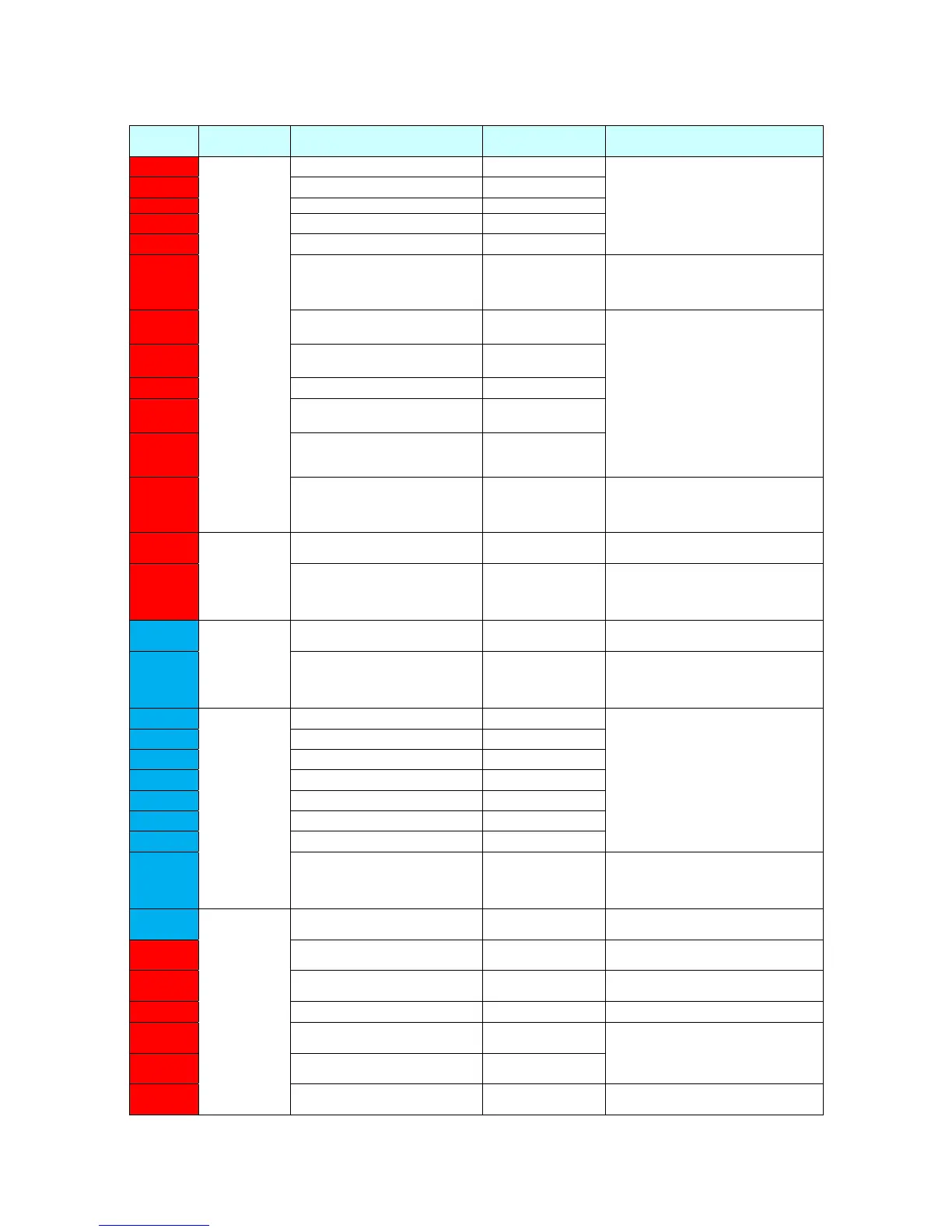

Holding Register data configuration (2/13)
Word
address
Classification Item name Setting range Contents
00 20
Print
contents
Character count(Print item 1) 1 to 500
Sets the character count for each
print item.
00 21 Character count(Print item 2) 1 to 500
… … …
00 50 Character count(Print item 49) 1 to 500
00 51 Character count(Print item 50) 1 to 500
00 52 Reserve_1
-
"Reserve" is not initially provided,
but may be added in future.
… …
00 83 Reserve_50
00 84 Attribute(1st digit) 0x0000 to 0xFFFF
Set the characters of Print
contents. Character codes are the
same as those which are used in
Standard communication. Please
refer to Technical Manual, Section
5 Communication, for details.
In case of setting Calendar/Count
characters, set to Character
attribute, or if they are NOT
Calendar/Count characters, set to
Character code.
00 85 Character code(1st digit) 0x0020 to 0xFFFF
… … …
04 6A Attribute(500th digit) 0x0000 to 0xFFFF
04 6B Character code(500th digit) 0x0020 to 0xFFFF
04 6C Reserve_1
-
"Reserve" is not initially provided,
but may be added in future.
… …
0F FF Reserve_2964
10 00
Printings
erasure
Printing erase item number 1 to 50
Sets the printing item number to
erase printing contents.
10 01 Reserve_1
-
"Reserve" is not initially provided,
but may be added in future.
… …
10 05 Reserve_5
10 06
Print data
recall
Print data message number 1 to 2000
Set the registered print message
number to be recalled.
10 07 Reserve_1
-
"Reserve" is not initially provided,
but may be added in future.
… …
10 0B Reserve_5
10 0C
Print data
registration
Group number 0 to 99
Register the being edited print
message by the specified Group
number or by the registered print
message number or by the
message name.
10 0D Print data message number 1 to 2000
10 0E Message name(1st digit) 0x0020 to 0xFFFF
10 0F Message name(2nd digit) 0x0020 to 0xFFFF
… … …
10 18 Message name(11th digit) 0x0020 to 0xFFFF
10 19 Message name(12th digit) 0x0020 to 0xFFFF
10 1A Reserve_1
-
"Reserve" is not initially provided,
but may be added in future.
… …
10 1F Reserve_6
10 20
Print format
Line count / print format
uniformity
0 , 1
Line count of all columns are made
uniform based on the first column.
10 21 Insert column 1 to 50
Adds a column directly before the
editing objective column.
10 22 Delete column 1 to 50
Deletes all the print items of the
editing objective column.
10 23 Add column 1 to 50 Adds a column at the end.
10 24
Individual column setup
(Column position)
1 to 50
Changing the number of lines of
the editing objective column.
10 25
Individual column setup
(Line count)
1 to 4
10 26 Reserve_1
-
"Reserve" is not initially provided,
but may be added in future.
10 27 Reserve_2
To Next Page
