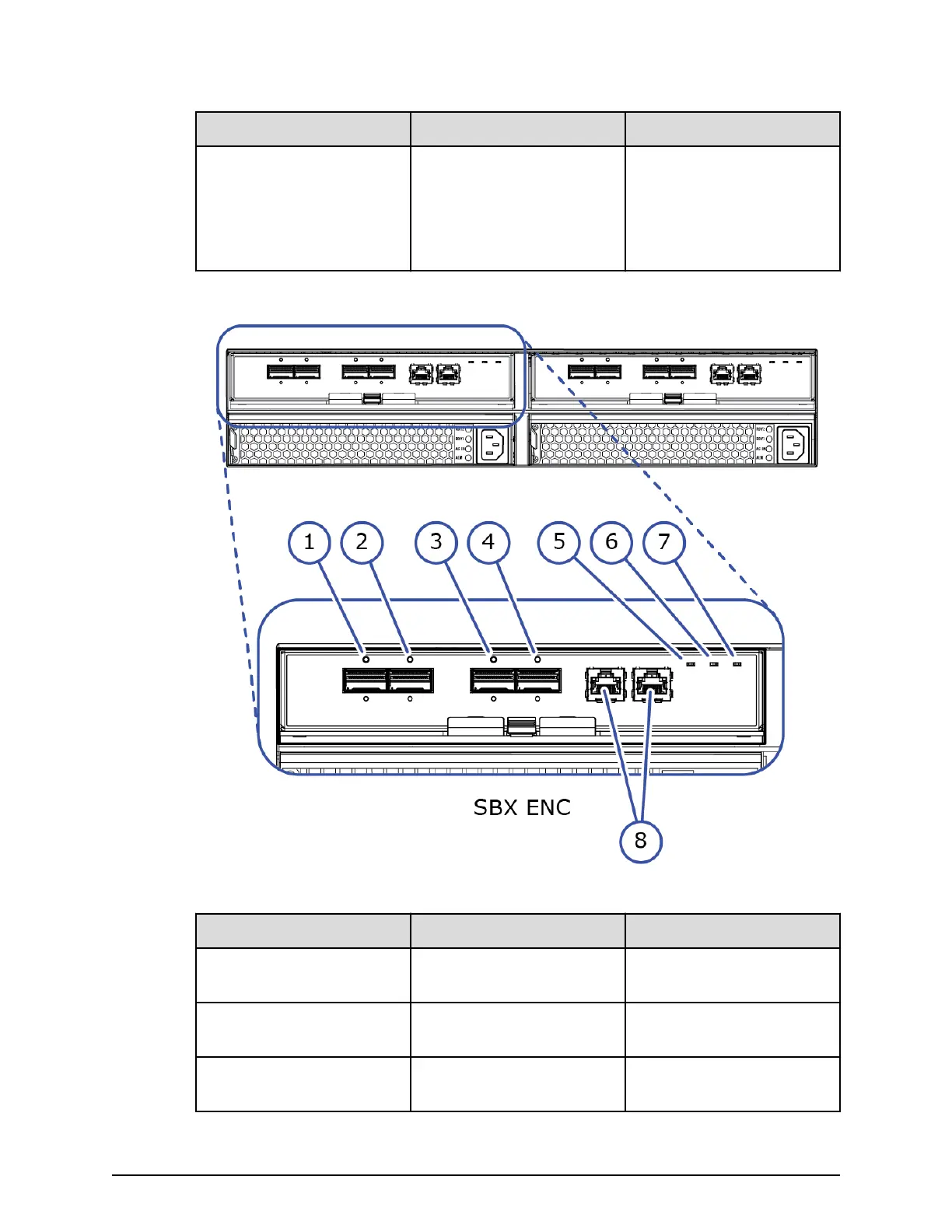

Number Item Description
5 LOCATE Amber: Indicates the
location of the chassis that
detects a failure.
The LED can be lit/turned
o by Maintenance Utility.
Number Item Description
1 PATH (IN side) Green: Indicates that the IN
side is linked up.
2 PATH (OUT side) Green: Indicates that the
OUT side is linked up.
3 PATH (IN side) Green: Indicates that the IN
side is linked up.
Drive box
Chapter 2: Hardware overview
Hitachi Virtual Storage Platform 5000 Series Hardware Guide 29
