22
Battery Meter
The user can check the battery’s total voltage, the highest voltage, the lowest voltage and each cell’s voltage.
Connect the battery via the charger’s main battery lead to the battery socket and balance wires to the balance
socket as shown below.
Press the START/ENTER button to access the Lithium
Battery Meter program.
Indicates each cell’s voltage.
Indicates the total voltage, the highest voltage and the
lowest voltage.
(-)
(-)

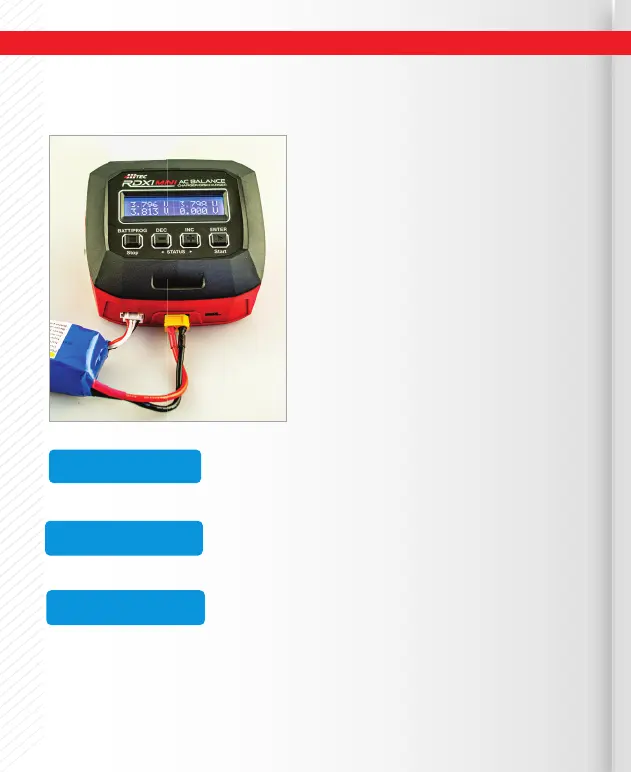

This diagram shows how
to correctly connect your
battery to check the voltage.
BATT/PROGRAM
BATT METER
The display indicates the current Main Voltage,
Percentage of Charge, Individual Cell Voltage, and
the Highest and Lowest voltages of the packs cells.
3.796V 3.798V
3.813V 0.000V
MAIN: 12.59V
H:4.200 L4.182V
