The user can check the battery’s total resistance, the highest resistance, the lowest resistance and each cell’s
resistance in the battery pack.
Connect the battery to the charger by inserting the main battery lead to the battery socket and balance wires
to the balance socket.
Battery Resistance Measurement
BATT/PROGRAM
BATT RESISTANCE
Press the START/ENTER button to access the Lithium Battery Resistance
program.
The rst screen indicates each cell’s internal resistance.
Indicates the total resistance, the highest resistance and the lowest
resistance.
7.9 7.7 mΩ
6.7 0.0 mΩ
TOTAL:22.9mΩ
(-)
(-)

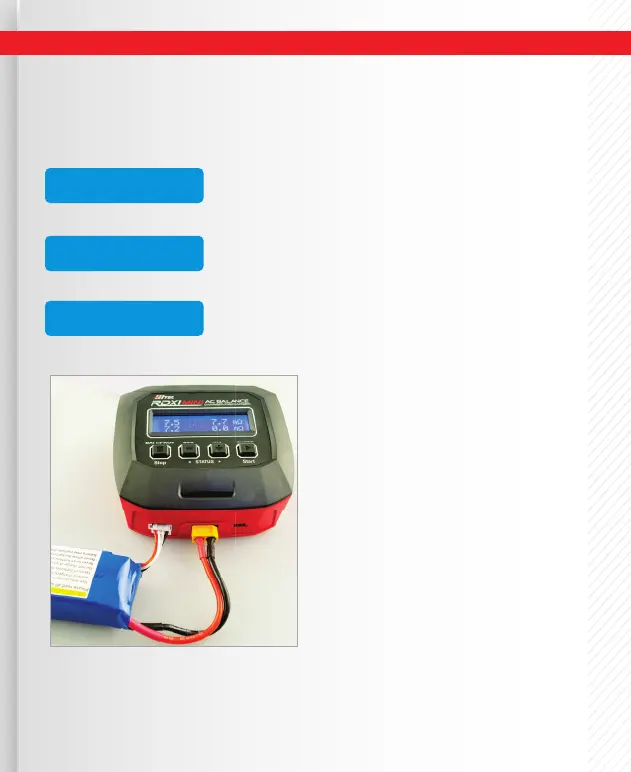

This diagram shows how
to correctly connect your
battery to check internal
resistance.
To Next Page
