Description
Choose the LCD de nition best
suited to your preference
Display the hardware and
rmware version.
Press the Start/Enter button to
make “Reset” blink; then, press and
hold the Start/Enter button to load
the factory default settings.
BATTERY
PACK
BATTERY METER
Main: 25.12V 98%
4.18 4.18 4.18V
4.18 4.18 4.19V
H: 4.192 L: 4.183V

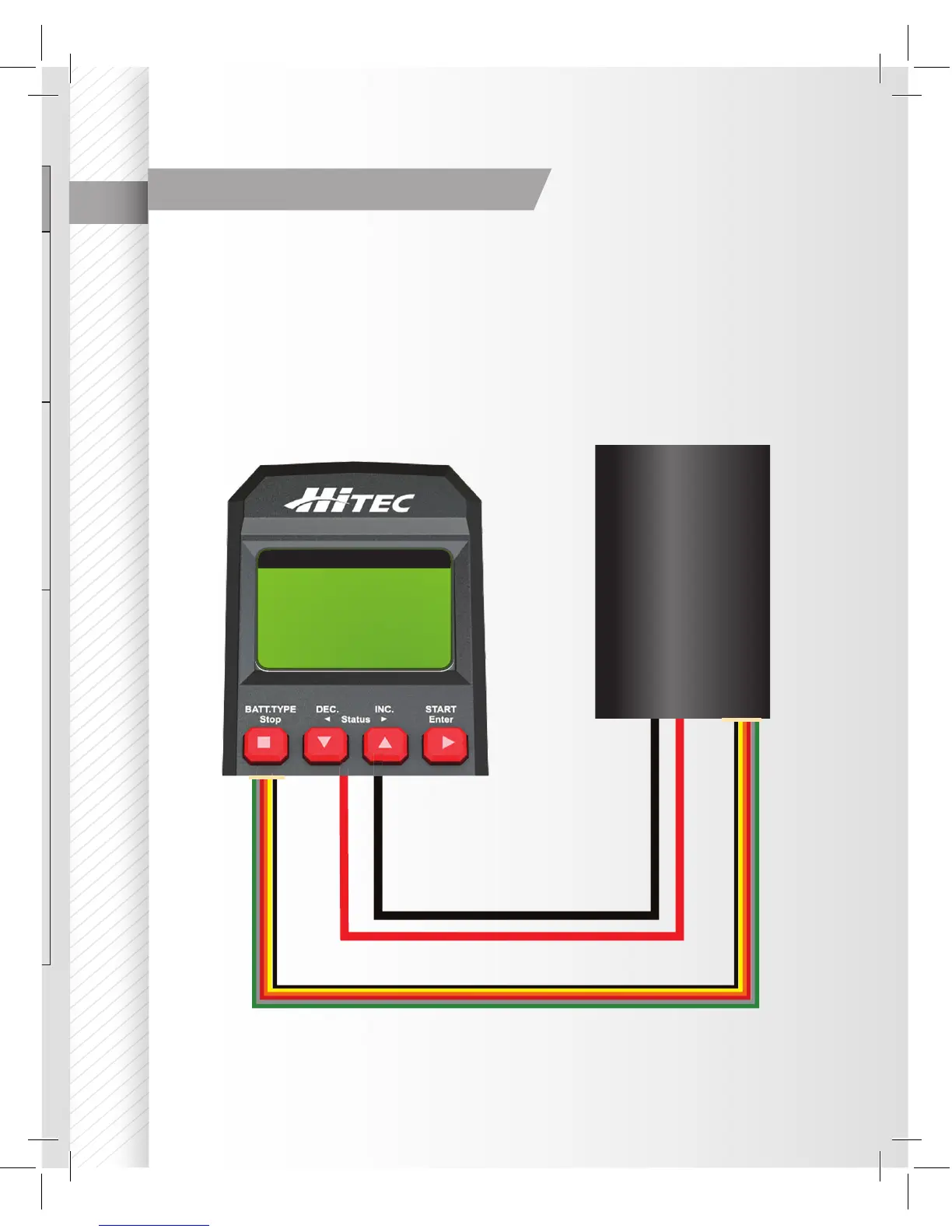

This diagram shows the
correct way to connect your
battery to check the voltage.
Battery Meter
The user can check the battery’s total voltage, the highest voltage, the
lowest voltage and each cell’s voltage. Connect the battery via the charger’s
main battery lead to battery socket and balance wires to the balance socket
as shown below.
The display indicates the current Main Voltage, Percentage of Charge,
Individual Cell Voltage, and the Highest and Lowest voltages of the
packs cells.
