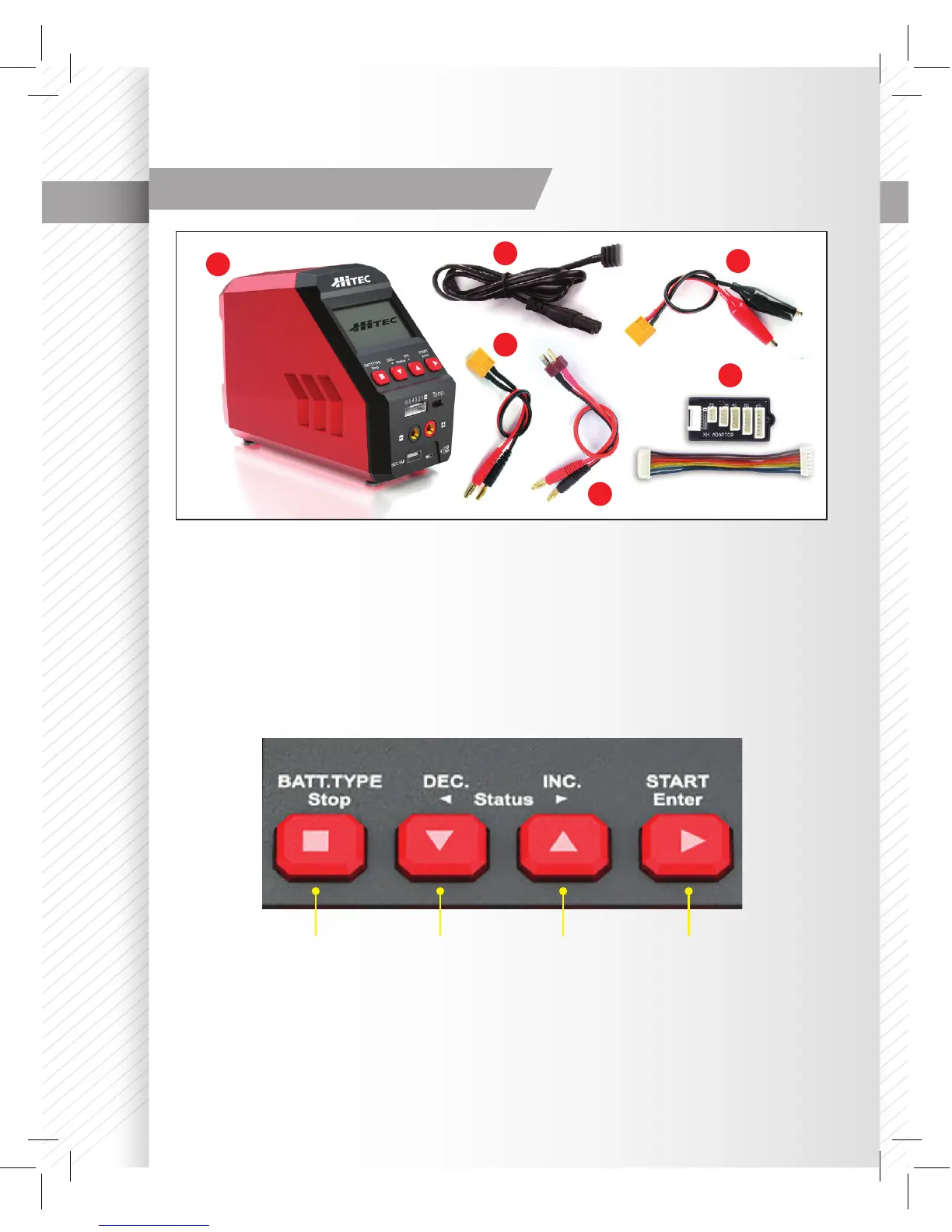

Charger Layout
1. RDX1 Pro Charger
2. Power Cord
3. 1 x XH Balance Board
4. 1 x XT-60 Charge Connector
5. 1 x 2 Pin T-Type Charge Connector
6. 1 x XT-60 DC Power Connector
1
2
3
4
5
6
BATT. Type/Stop Button Start/Enter Button
Stop the progress
of the current
action or cycle back
to the previous
step / screen.
Scroll through
available menus
or increase
parameter values.
Scroll through
available menus
or decrease
parameter values.
Stop the progress of
the current action
or cycle back to the
previous step / screen.
INC. Button DEC. Button
Input Buttons
