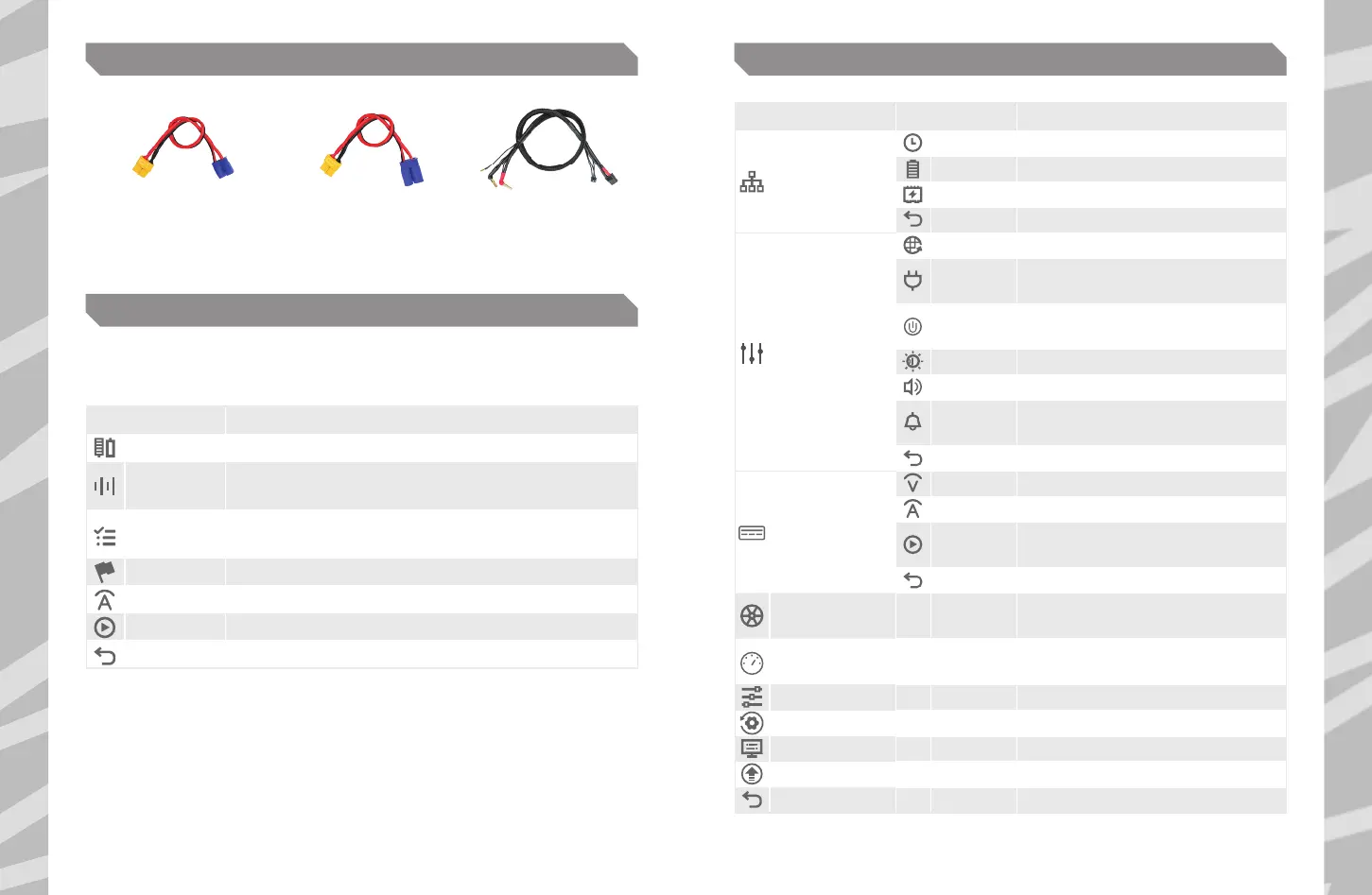

MENU OPTION SPECIFICATION
TASK PARAMETERS
Safety Timer Customize a period for program protection.
Max. Capacity Customize the protection of capacity.
Trickle Charge Enable / disable trickle charge.
Back Back to the previous interface.
SYSTEM SETTINGS
Language Select your desired system language.
Max. Input
Power
The maximum charge power
AC Input: 100W | DC Input: 200W
Min. Input
Voltage
In DC Input, set the minimum voltage for
input protection.
LCD Backlight Adjust the brightness of the screen.
Volume Adjust the volume of the key and beep.
Completion
Signal
Choose the way you’d like to be reminded when the
program completes.
Back Back to the previous interface.
DC POWER
Voltage Set the output voltage (10.0-30.0V).
Current Set the output current (30.0-35.0A).
Start
Enable DC power output and return to the
main interface.
Back Back to the previous interface.
POWER FOR TIRE
WARMER - A
N/A Activate to power the after market Tire Warmer on Port A.
BATTERY METER N/A
Measure the battery voltage and internal resistance
(Toggle between A/B ports by pressing the Port button).
SYSTEM SELF-CHECKING N/A
FACTORY SETTINGS N/A Restore to the factory settings.
SYSTEM INFO N/A Check the current system status.
SYSTEM UPGRADE N/A Upgrade the system.
BACK N/A Back to the previous interface.
On the main interface, press the ENTER button to enter charging settings, in which you can
toggle between A/B ports by pressing the Port button.
MENU DEFINITION
BATTERY TYPE Select your desired battery type (LiPo, LiIo, LiFe, LiHV, Pb, NiMH, NiCd).
BATTERY CELL
Select the number of battery cells corresponding to the battery type
(Li-xx: 1-6S, Ni-xx: 1-15S, Pb: 3S/6S/12S).
TASK
Select the program to be performed (Balance CHG, Charge, Storage,
Discharge, etc.).
CONDITION Set the cut-o voltage as per the task.
CURRENT Set the charge or discharge current.
START Start the current program.
BACK Back to the main interface.
OPTIONAL PARTS
CHARGER SETTINGS
SYSTEM SETTINGS
XT60 to EC3 Charging Connector
Part No. 44180
XT60 to EC5 Charging Connector
Part No. 44182
XT60 to 4 or 5mm Bullet w/XH
Part No. 44183
