HMS Anybus CompactCom 30 User Manual

Network Specific — PROFINET 32 (38)
13.8 LED Indications
Changes has been made regarding the specification of the LED indications. See tables below
for differences.

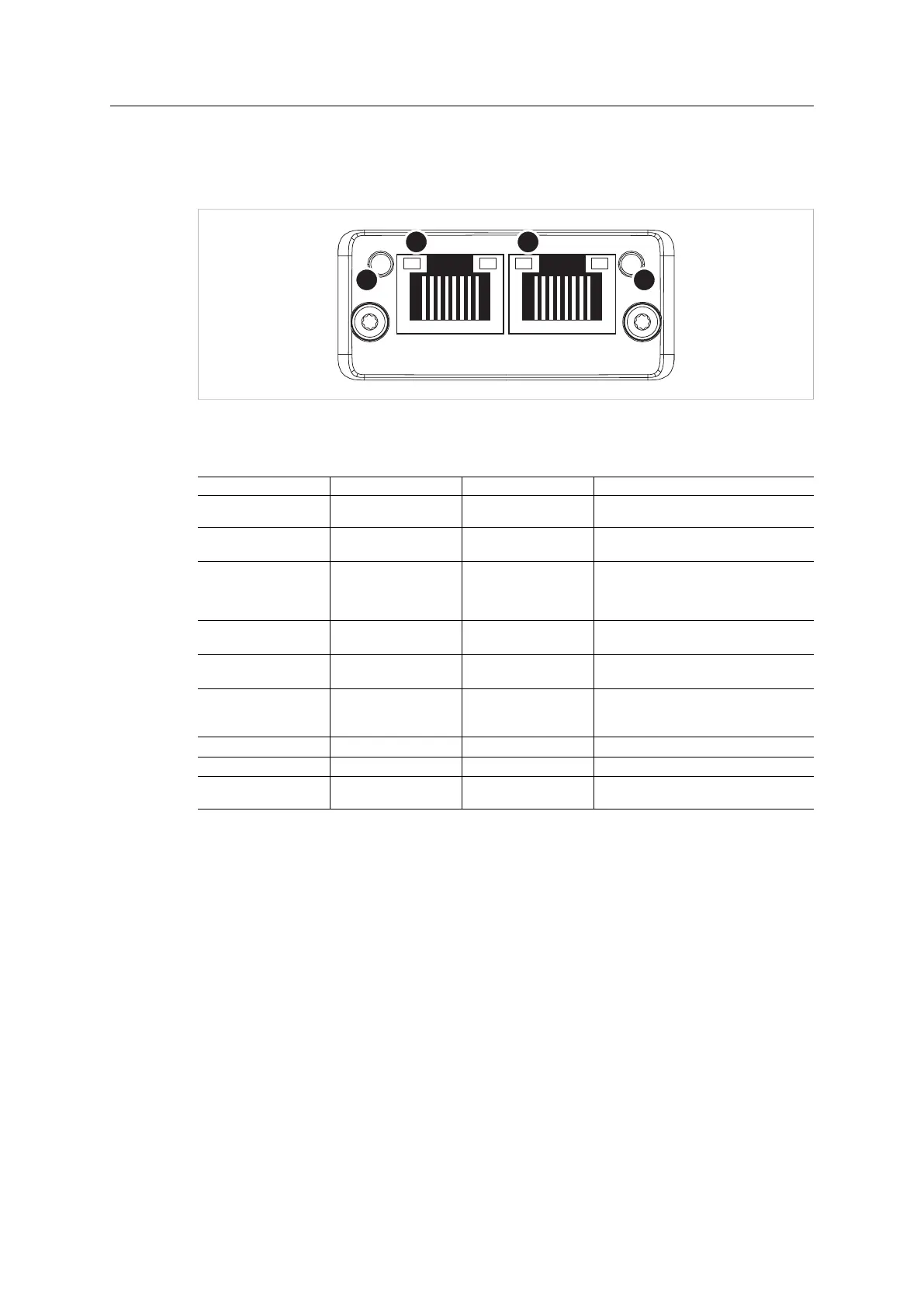

1 2
3
4
Fig. 6
13.8.1 Network Status LED (LED1[A..B])
LED State 30-series 40-series Comments
Off Offline Offline - No power- No connection with IO
controller
Green Online (RUN) Online (RUN) Connection with IO controller estab-
lished, IO controller in Run state
Green, 1 flash
-
Online (STOP) Connection with IO controller estab-
lished, IO controller in STOP state or
IO data bad, IRTsynchronization not
finished
Green, 3 flashes
-
Identify Flashing 3 times (1Hz) continuously
to identify slave (DCP_Identify).
Green, cont. flash Online (STOP)
-
Connection with IO controller estab-
lished, IO controller in STOP state
Red Fatal event Fatal event Major internal error (this indication is
combined with a red module status
LED)
Red, 1 flash
-
Station Name error Station name not set
Red, 2 flashes
-
IP address error IP address not set
Red, 3 flashes
-
Configuration error Expected Identification differs from
Real Identification.
Migrating from Anybus
®
CompactCom
™
30 to Anybus
®
CompactCom
™
40 Design Guide SCM-1202-043 1.1
