1 . Ad justimJ screw
2. Bracket screws
3. Fan belts
4. Adjusting track&
5. Support bracket

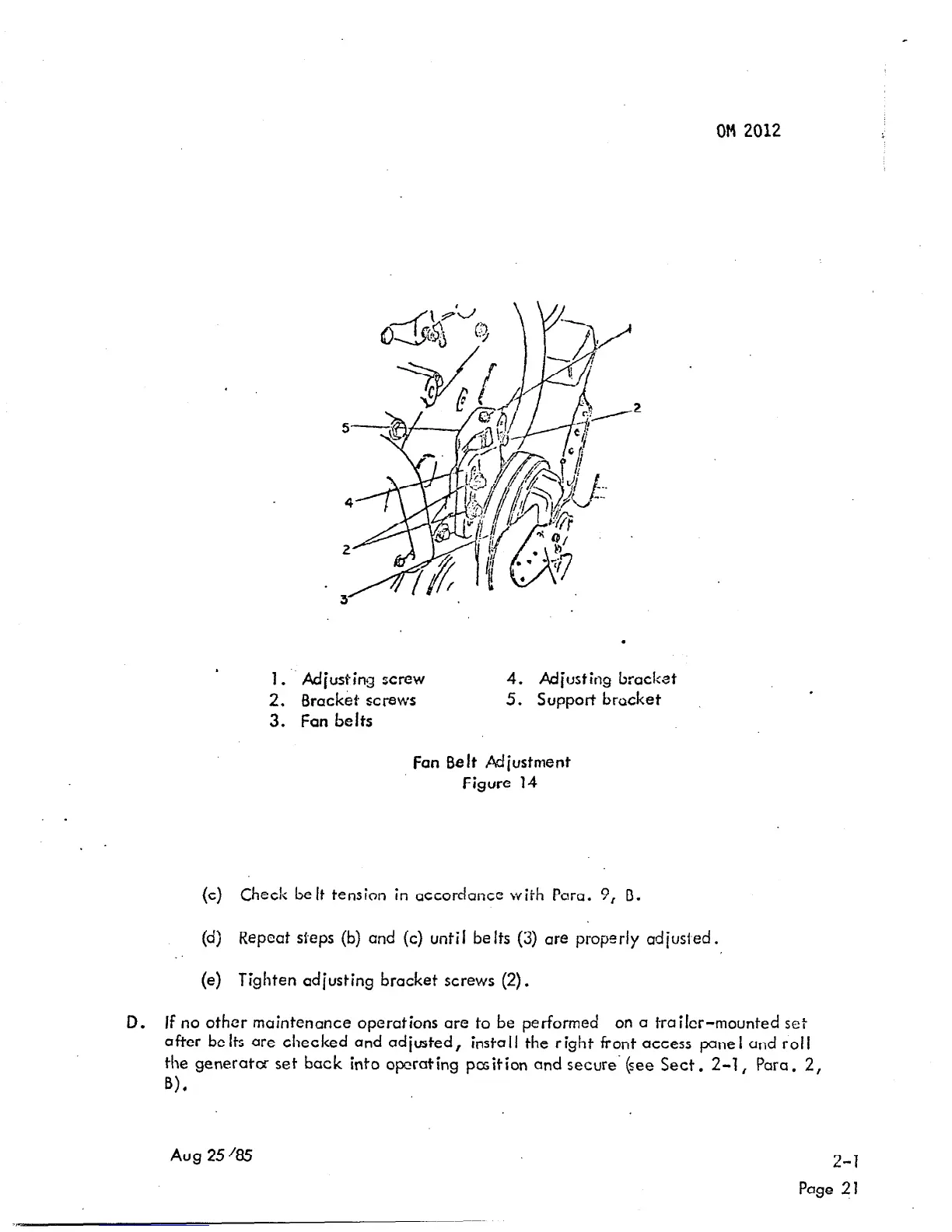

Fan Belt Adjustment
Figure 14
(c) Check belt tension in accordance with Para. 9, B.
(d) Repeat steps (b) and (c) until belts (3) are properly adjusied.
(e) Tighten adjusting bracket screws (2).
0. if no other maintenance operations are to be performed on a trailer-mounted set
after be Its are checked and adiusted,
install the right front access pane1 and roll
the generatcx set back into opcrating position and secure‘ (see Sect. 2-1, Para. 2,
BL
Aug 25 ‘85
2-1
