OM 2012
.

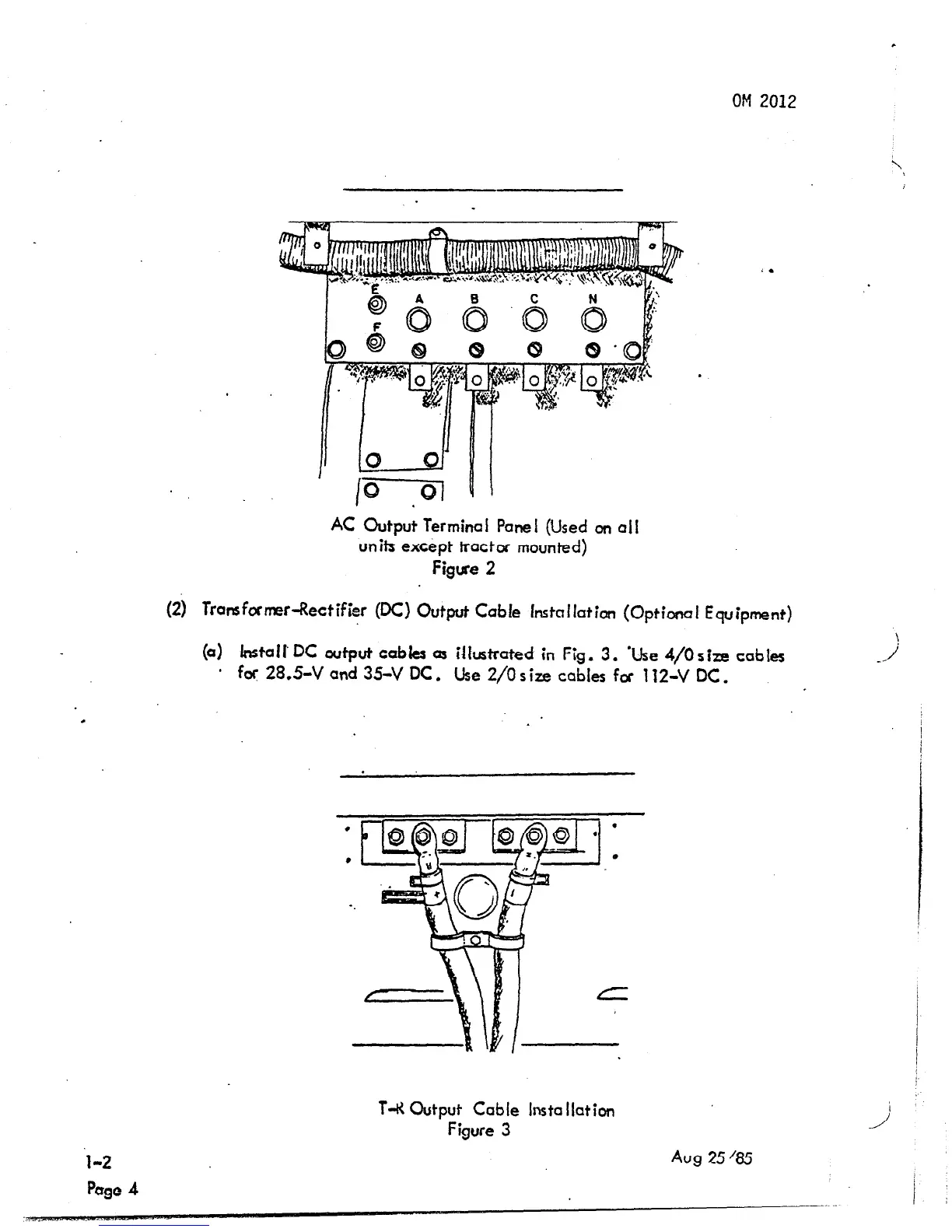

AC Output Terminai Panel (Used on all
units except tractor mounted)
Figure 2
(2) Transformer-Rectifier (DC) Output Cabfe Installation (Optional Equipment)
(a) Install’DC output cables as ilk&rated in Fig. 3. ‘Use 4/Osire cables
* for 28.5-V and 35-V DC. Use 2/O size cables for 112-V DC.
.
‘1-2
Pago 4
T-R Output Cable Installation
Figure 3
Avg 25%
