Hobart 5359D - L-L; Overspeed Governor

OM 2012
#Used on S3!59D-9 only.
1. Kadiator
2. Engine
3. Lifting yoke
4. Starting fluid container
5. Overspeed governor
6. Voltage regu Iator
7. Power module
8. Air cleaner
9. Governor control box
10. Generator control box
11. Engine control panel
13. Cable horn and clamp (Used on all
units except tracts mounted)
14. Output cable terminal board (Used on
all units except tractor mounted)
15. Engine oil filler pipe
16. Generator
17. Governor magnetic pickup
18. Sturter cut-out switch
19. Roli-out rails (Used on tractor mounted
units only)
20. Governor actuator
I
12. Output cable receptacle connector
21. Engine exhaust pipe
(Used on tractor mounted units)
l 22. 24 Volt power supply

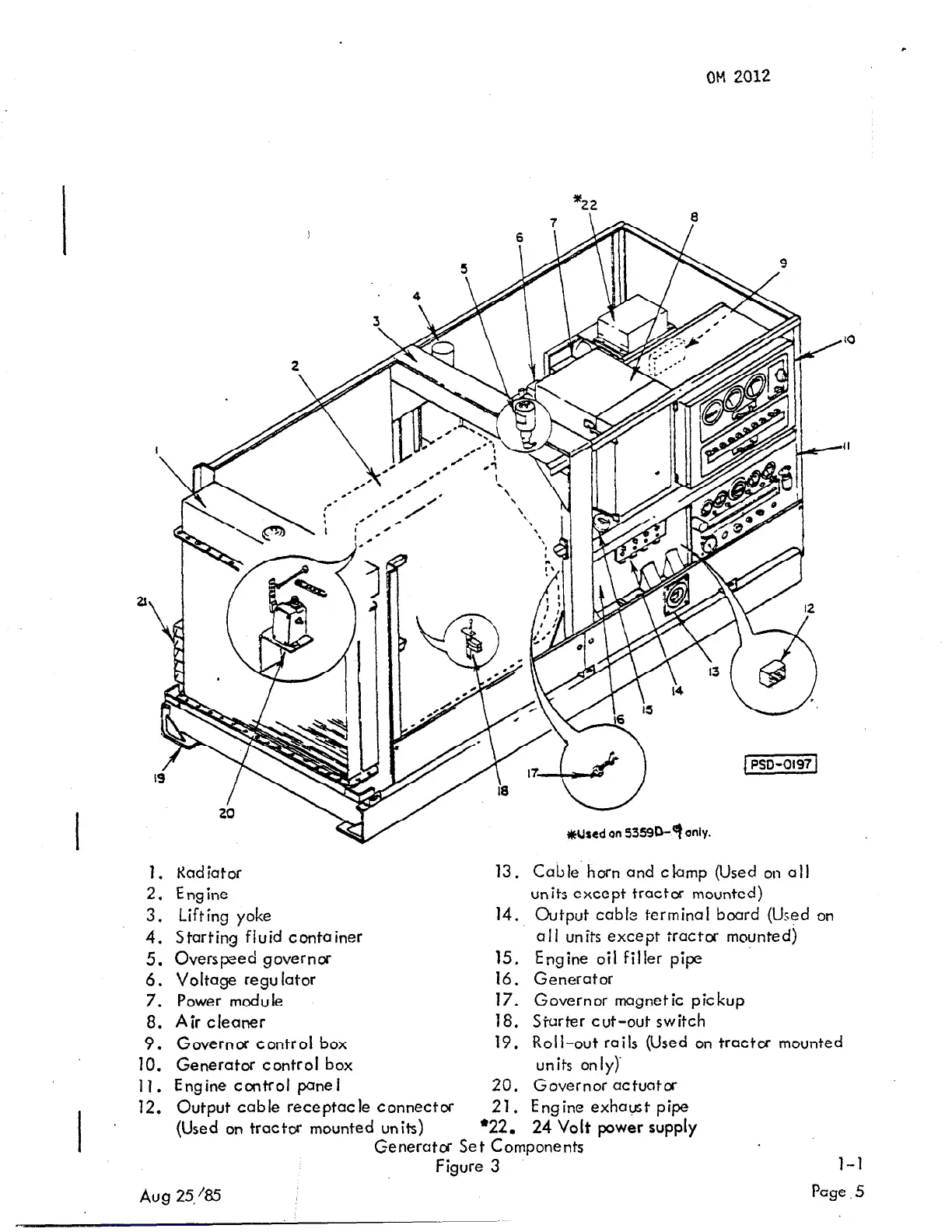

Generator Set Components
Figure 3
l-l
Aug 25+35
Page. 5
