OM 2012
FLJ~ I Filter
D~*c;i,-t Daily D”
Oil Fitter
Starter
Fue I Filter
Drain Daily
Engine Oil
Check I-eve I
M2 E ngine A Iternator
D”
D2
Check Daily
Change Oil ***
Air Cleaner ++
-
Refer to Dotro!t D iese I
Operator ‘s Manua I
- BWl Overspeed Governor
DF ive
.
** AC Generator
SAl Cam followers
Used on tractor-mounted
units only (not illustrated)
* Change elements 300 hours.
** AC Generator bearings
are sea led. Require no periodic lubrication.
***Change engine oil after each 100 hours, or as recommended in Para.
4, D, (4); pge 6.
+ Lubricate starter when removed only.
++Change air cleaner cartridge as required by indicator.
2-l
Page 4

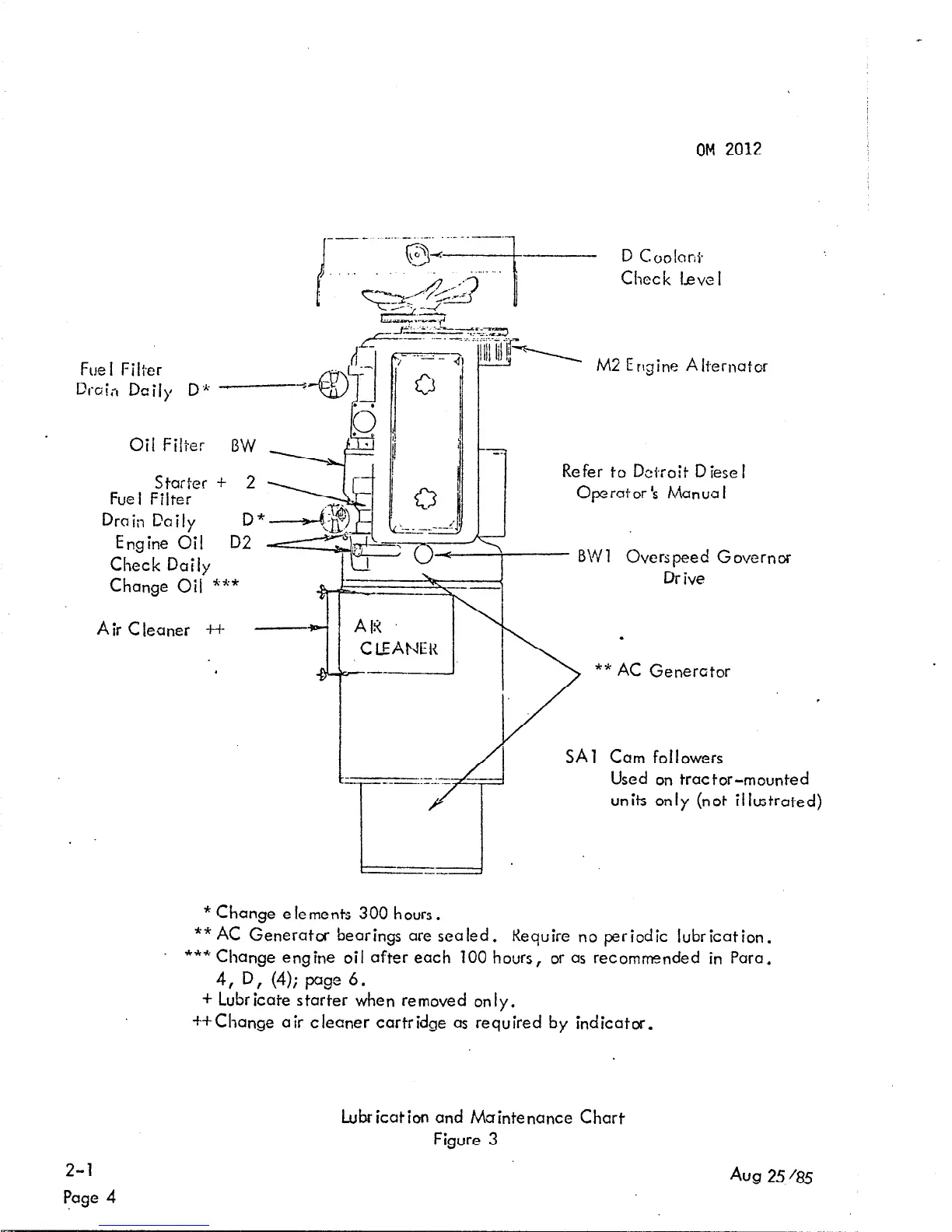

Lubrication and Maintenance Chart
Figure 3
Aug 25’35
