OM 2012
1. Nut
2. Spring washer
3. Clamp
4. Tee bolt
5. Housing
6. Cartridge
7. Moisture e I imjnator

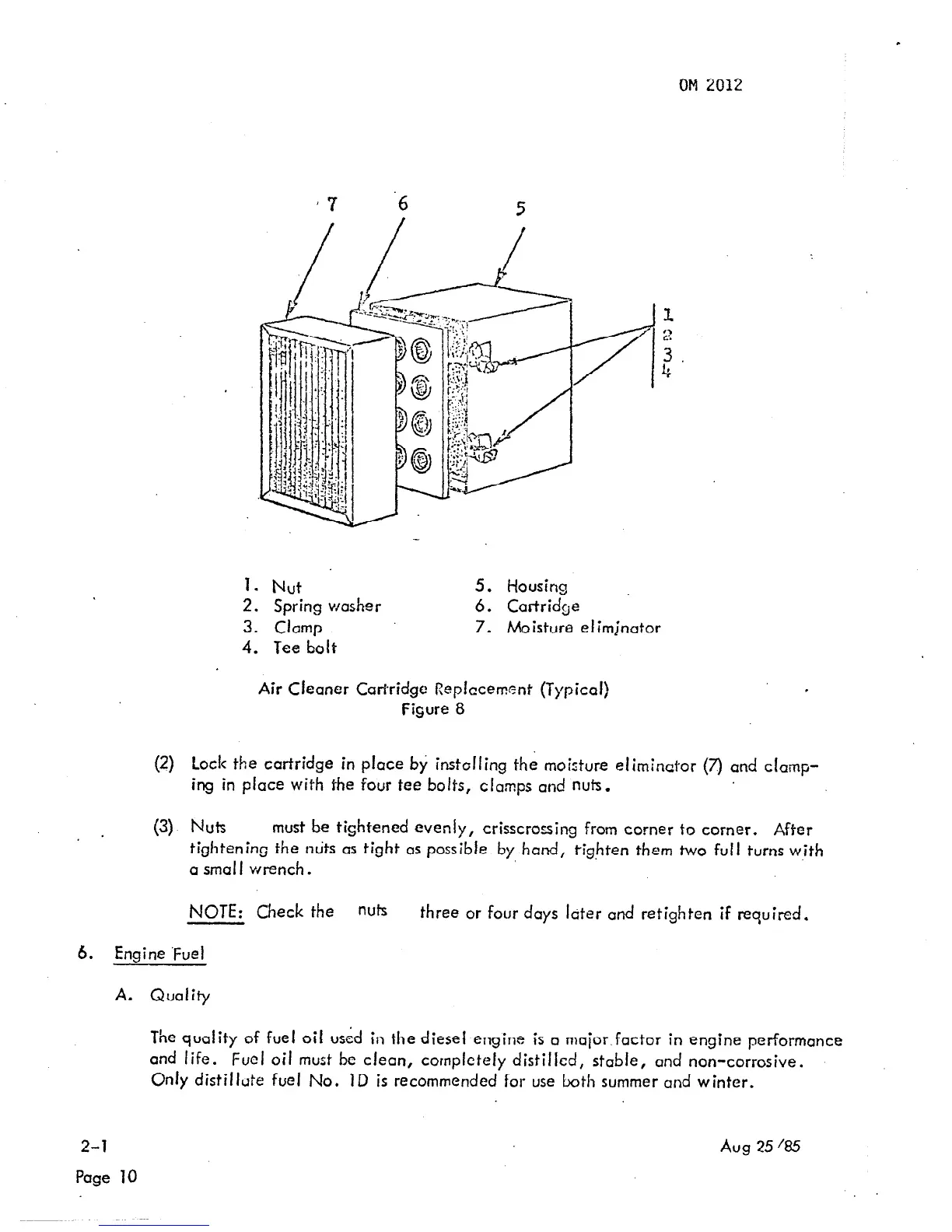

Air Cleaner Cartridge Repfccement (Typical)
Figure 8
,
(2)
Lock the cartridge in place by instcfling the moizture eliminctor (7) and clamp-
ing in place with the four tee bolts, clamps and nuts.
. *
(3) Nuts
must be tightened evenly, crisscrossing from corner to corner.
After
tightening the n&s as tight as possible by.band, tighten them two full turns with
a smal I wrench.
NOTE: Check the nuts
three or four days later and retighten if required.
6. Engine ‘Fuei
A. Qualify
The quality of fuel oil usdd in the diesel.engine is a major.factor in engine performance
and life.
Fuel oil must be clean, completely distilled, stable, and non-corrosive.
Only distillute fuel No. 1D is recommended for use bath summer and winter.
2-l
Page 10
Aug 251135
