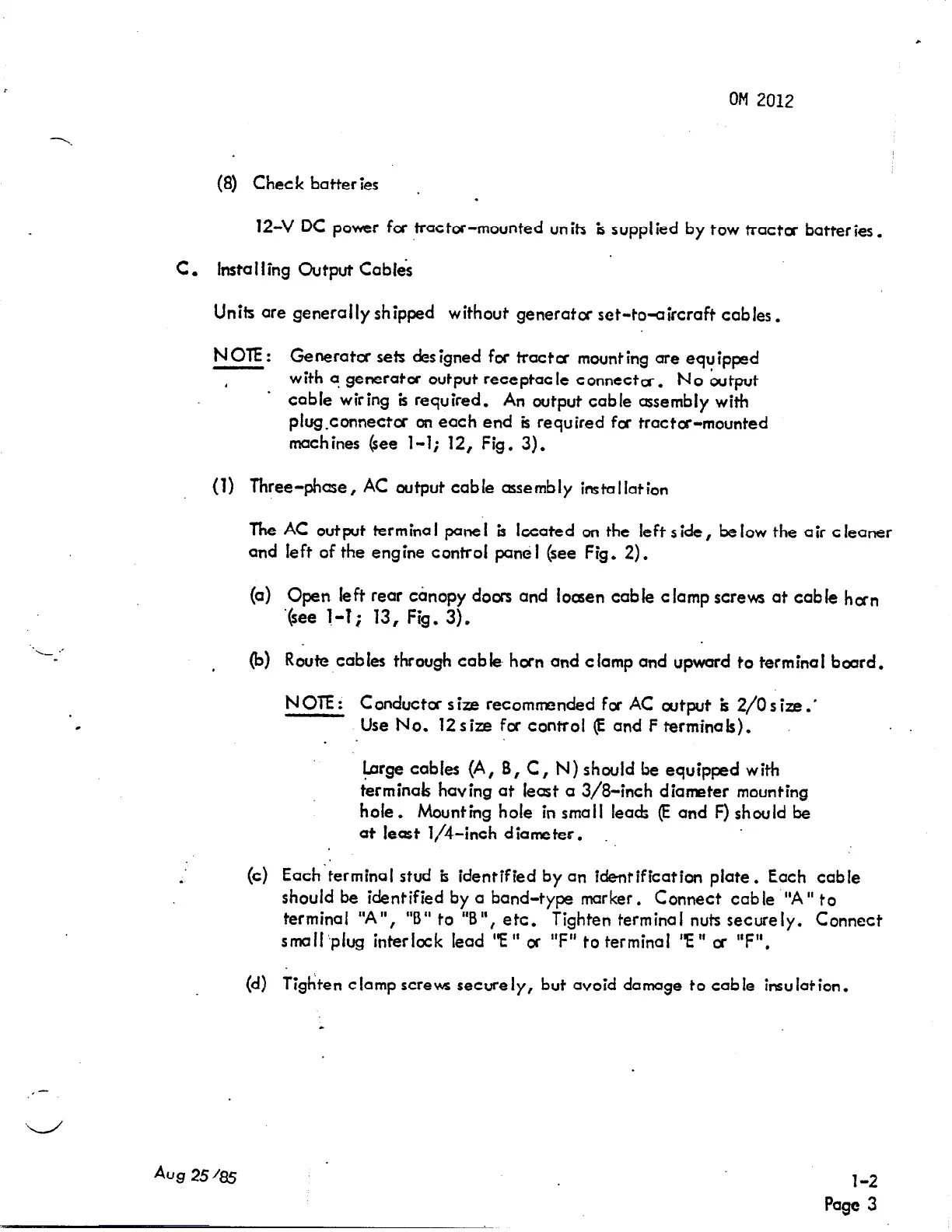

OM 2012
(8) Check batteries . .
12-V DC power for tractor-mounted units k supplied by tow trocta batteries .
C. InstaIling Output Coblei
Units are generally shipped without generator set-to+ircraft cables.
Generotcr sets designed for tracta mounting are eqvipped NOTE :
4
with 9 generator output receptacle connect@. No output
* cable wiring is required.
An output cable assembly with
plug-connector on each end is required fa troctos-mounted
machines (see l-l; 12, Fig. 3).
(1) Three-phase, AC output cable assembly installation
The AC output terminal pane J is located on the left side, be low the air cleaner
and Jeft of the engine control pan61 (see Fig. 2).
(a) Open left rear canopy docrs and loosen cable clamp screws at cable hcen
‘fjee I-1; 13, Fig. 3),
(b) Rwte cables through cable horn and clamp and upward to terminaf board.
NOTE :
Conductor size recommended for AC cutput b 2/O s ize .’
Use No. 12 size fcr cotitrol (E ond F terminak),
. .
+rge cables (A, 8, C, N) should be equipped with
terminals having at Jeast a 3/8-inch diameter mounting
hole. Mounting hole in small leads (E and F) shwld be
at least l/4-inch diameter.
(c) Each‘terminal stud is identified by on identification plate. Each cable
should be identified by a band-type marker. Connect cable “A” to
terminal “A”,
“B ” to “B “, etc.
Tighten terminal nuts securely. Connect
small ‘plug interlock lead “E ” IX “F” to terminal ‘F “ OT “F”.
(d) Tighten clamp scre- securely, but ovoid damage to cab Je insulation.
Aug 25&j
l-2
