OM 2012
. .
.
04
(4
Engine coolant - .
The radiator cop is accessible by opening the hinged access cover on the
front canopy housing.
Coolant level should be approximately one inch
below the filler-neck. AJJow a capacity for coolant expansion.
CAUTION: BE SURE THE COOLJNG SYSTEM ANTJFREEZE SOWTJON
is ADEQUATE TO PROTECT BELOW LOWEST TEMPERATURE
EXPECTED,. _
.
For antifreeze protection, use a &Jution of 5a permanent NOTE:
antifreeze (Ethylene glycol) and 50% clean water.
Engine lubricating oil
OJI level should be at “FULL” mark on oil level gage rod (see Fig. J). See
Sect. 2-1, Fig. 4 or the attached Detroit Diesel Operatar’s
Manual for oil recommendations.
Check air dieoner
The air cIeaner.(Sect. I-1, Fig. 3, item 8) is a “dv” type.
papers, tapes, or other material covering the air inlet area.
n

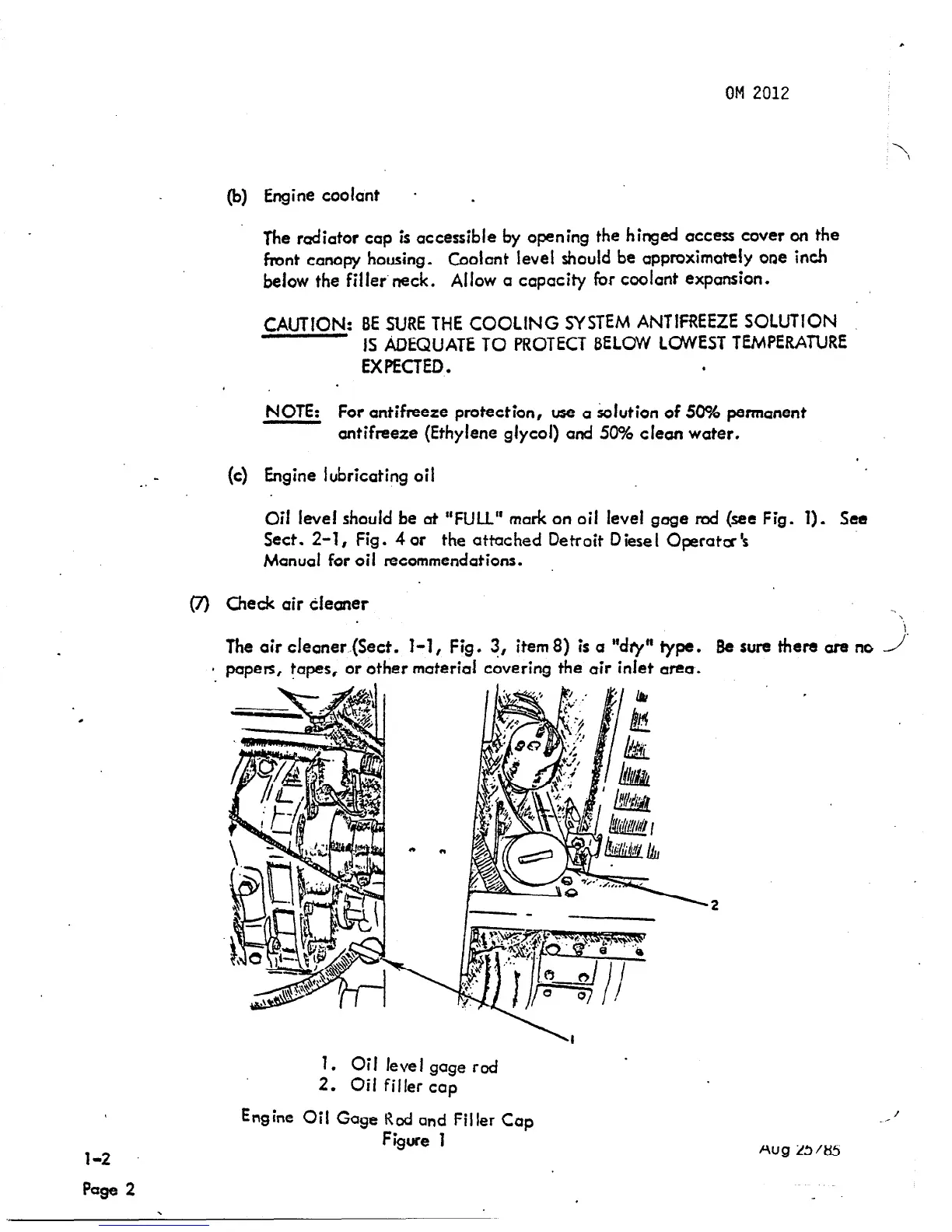

1. Oil feei gage rod
2. Oif filler cop
Engine Oil Gage Rod and Filler Cop
Figure 1
Be sure there ore no .I
Page 2
