OM 2012

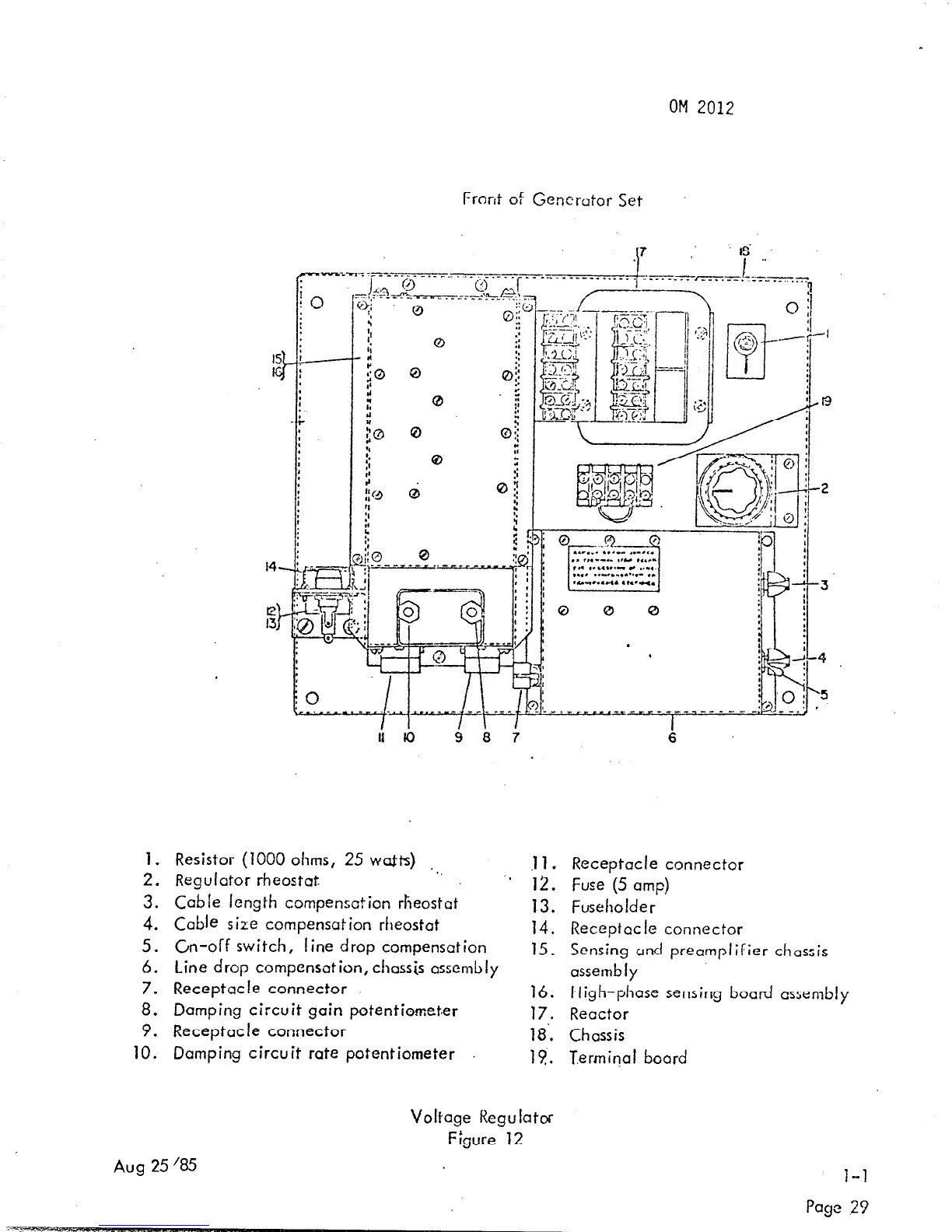

Front of Gencrutor Set
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Resistor (1000 ohms, 25 watts) . ,,
Regulator rheostat
Cable length compensation rheostat
Cable size compensation rheostat
Gn-off switch, line drop compensation
Line drop compensation, chassis assembly
Receptacle connector
Damping circuit gain potentiometer
Receptacle connector
Damping circuit rate potentiometer
Voltage Regu la tar
Figure 12
Aug 25 ‘85
Il. Receptacle connector
12. Fuse (5 amp)
13. Fuseholder
14. Receptacle connector
15. Sensing ond preamplifier chassis
assembly
16. High-phase sensing board assembly
17. Reactor
18. Chassis
19. Terminal board
1-l
