GENERATOR CONTKOL TRAY
PKOTECTM KE tit TtiY
32. Manual voltage control rheostat
33. Automatic-manual voltage control switch
34. Test bank switch
35. Light test switch
36. t&set switch
37. Automatic voltage control rheozfat
38. Cable length compensation rheastat
39. ‘Cable size compensation rheostat
40. Line-drop compensation on-off switch
41. Fuse (5-A)
*42,
24 Volt power supply switch
-
I
Aug25& i

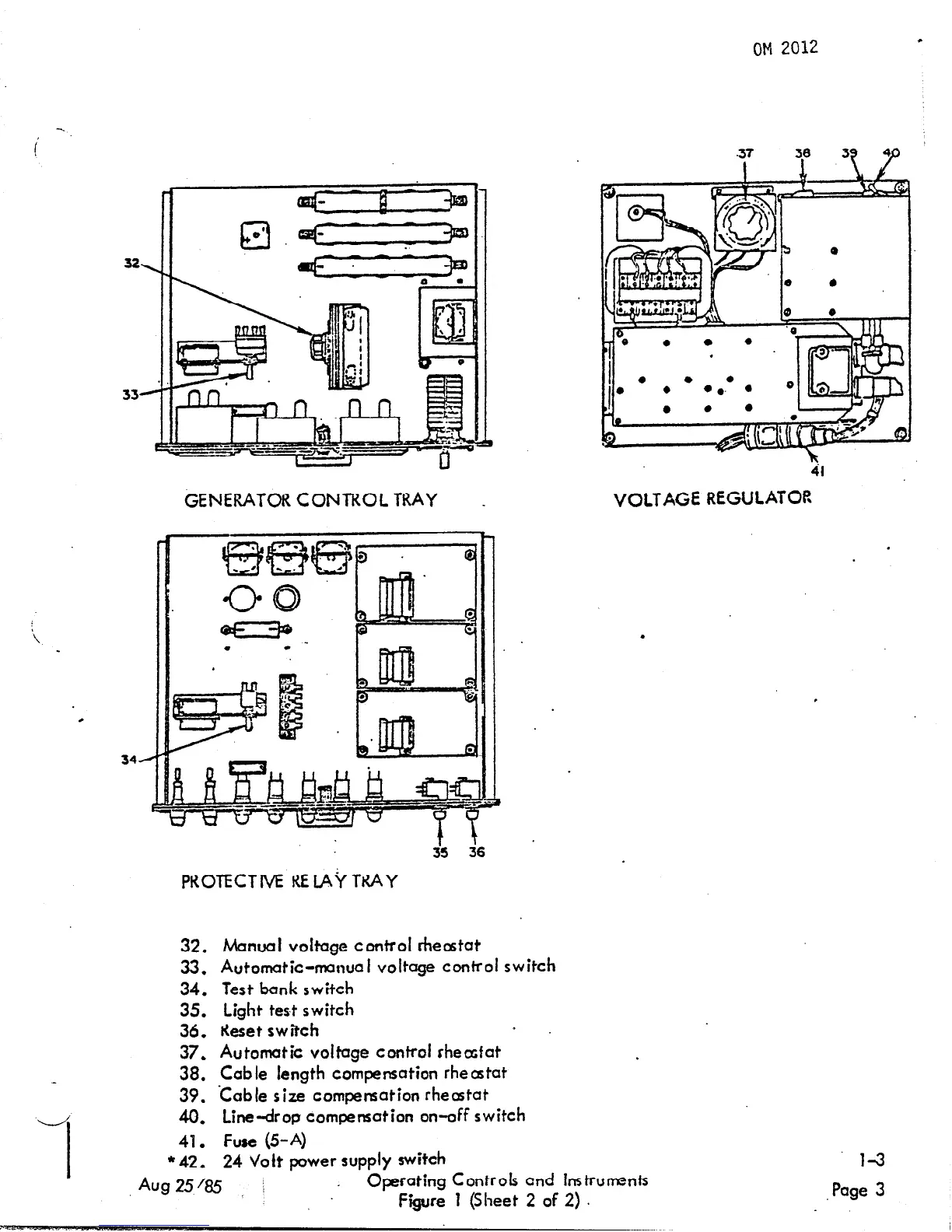

_ Operating Controls and Instrumznts
Figure 1 (Sheet 2 of 2) .
VOtTAGE REGULATOPI
143
,Page 3
