Hobart Handler 190 Technical Manual

TM-260 273 Page 44 Handler 190
243 842-A
1
23
4
5
6
7
8
7
12
9
13
14
11
10

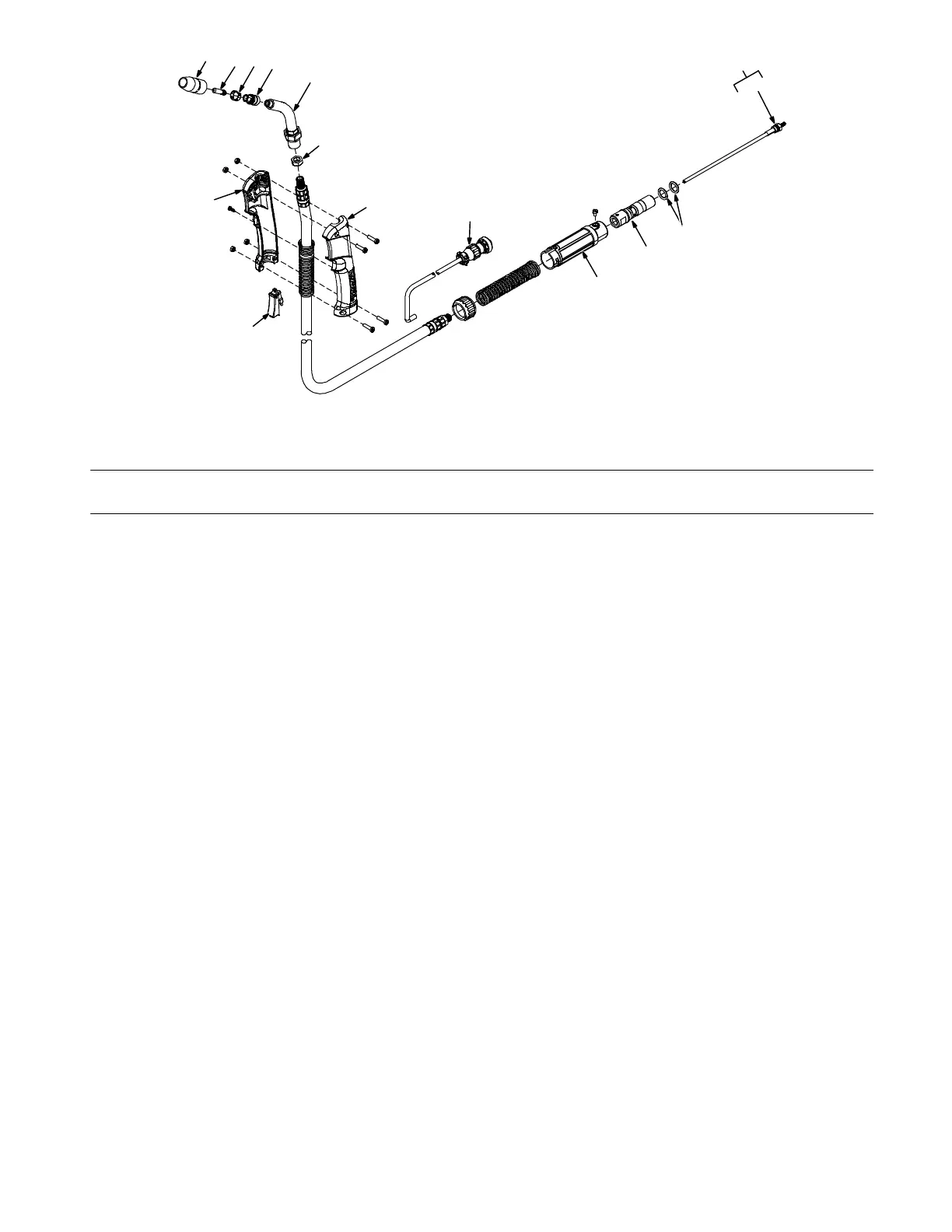

Figure 9-3. H100S4-10 Gun
Description
Part
No.
Dia.
Mkgs.
245 926
Item
No.
Figure 9-3. H100S4-10 Gun
Quantity
1 169 715 Nozzle, Slip Type .500 Orf Flush 1... .......... .. .....................................
1 +226 190 Nozzle, Flux Cored Slip Type 1... ......... .. .........................................
2 +087 299 Tip, Contact Scr .023 Wire X 1.125 1... ......... .. ....................................
2 +000 067 Tip, Contact Scr .030 Wire X 1.125 1... ......... .. ....................................
2 +000 068 Tip, Contact Scr .035 Wire X 1.125 1... ......... .. ....................................
2 +000 069 Tip, Contact Scr .045 Wire X 1.125 1... ......... .. ....................................
3 170 470 Ring, Retaining 1... .......... .. .....................................................
4 169 716 Adapter, Contact Tip 1... .......... .. ................................................
5 246 373 Tube, Head 1... .......... .. ........................................................
6 243 865 Nut, Jam 1... .......... .. ...........................................................
7 242 832 Handle 1... .......... .. ............................................................
8 225 410 Switch, Trigger 1... .......... .. .....................................................
9 079 878 Housing Plug & Pins 1... .......... .. ................................................
10 246 380 Housing, Power Pin 1... .......... .. .................................................
11 245 927 Connector, Feeder 1... .......... .. ..................................................
12 197 123 O−Ring, .312 ID X .062 70 Duro Buna−n 2... .......... .. ..............................
13 +194 010 Liner, Monocoil .023/.025 Wire x 15ft (Consisting Of) 1... ......... .. ....................
13 +194 011 Liner, Monocoil .030/.035 Wire x 15ft (Consisting Of) 1... ......... .. ....................
13 +194 012 Liner, Monocoil .035/.045 Wire x 15ft (Consisting Of) 1... ......... .. ....................
14 079 975 O-Ring, .187 ID x .103Cs Rbr 1... .......... .... .......................................
+OPTIONAL
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model is required when ordering parts from your local distributor.

Hobart Handler 190 Specifications

General

Input Voltage	230 V
Amperage Output	25-190 A
Weldable Materials	Steel, Stainless Steel, Aluminum
Weight	68 lbs
Spool Size Capacity	4 or 8 inch
Input Current	20 A
Input Frequency	60 Hz
Processes	MIG (GMAW), Flux-Cored (FCAW)
Input Phase	Single Phase
Duty Cycle	30% at 130 A
Material Thickness	24 ga. - 5/16 in. (Steel)
Wire Size Range	0.023-0.035 in (0.6-0.9 mm) solid, 0.030-0.045 in (0.8-1.2 mm) flux-cored
