Holman QuikDial - Overview; Main Components

4 of 32
Overview

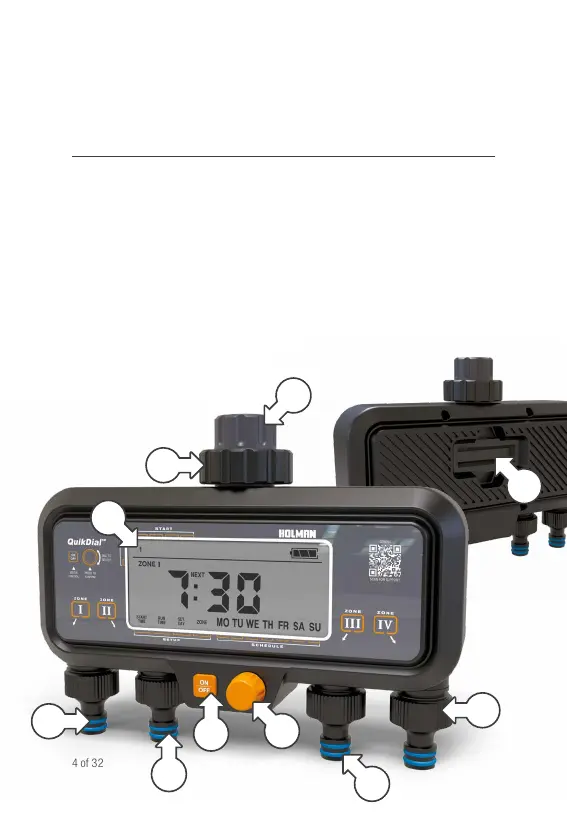

Main Components
1. ZONE 1 outlet
2. ZONE 2 outlet
3. ZONE 3 outlet
4. ZONE 4 outlet
® Each outlet is 20mmBSP
with 12mm snap‑on
connection included
5. 20/25mm BSP tap nut inlet
6. Tap connection locking nut
7. Display
8. ON/OFF
9. MENU DIAL
10. Battery compartment:
® Requires 2× AA alkaline
batteries only
(not included)
5
10
6
7
1
8
2
3
9
4
