After both bearing rollers are adjusted free of play, the two nuts tighten up the leadership
roles.

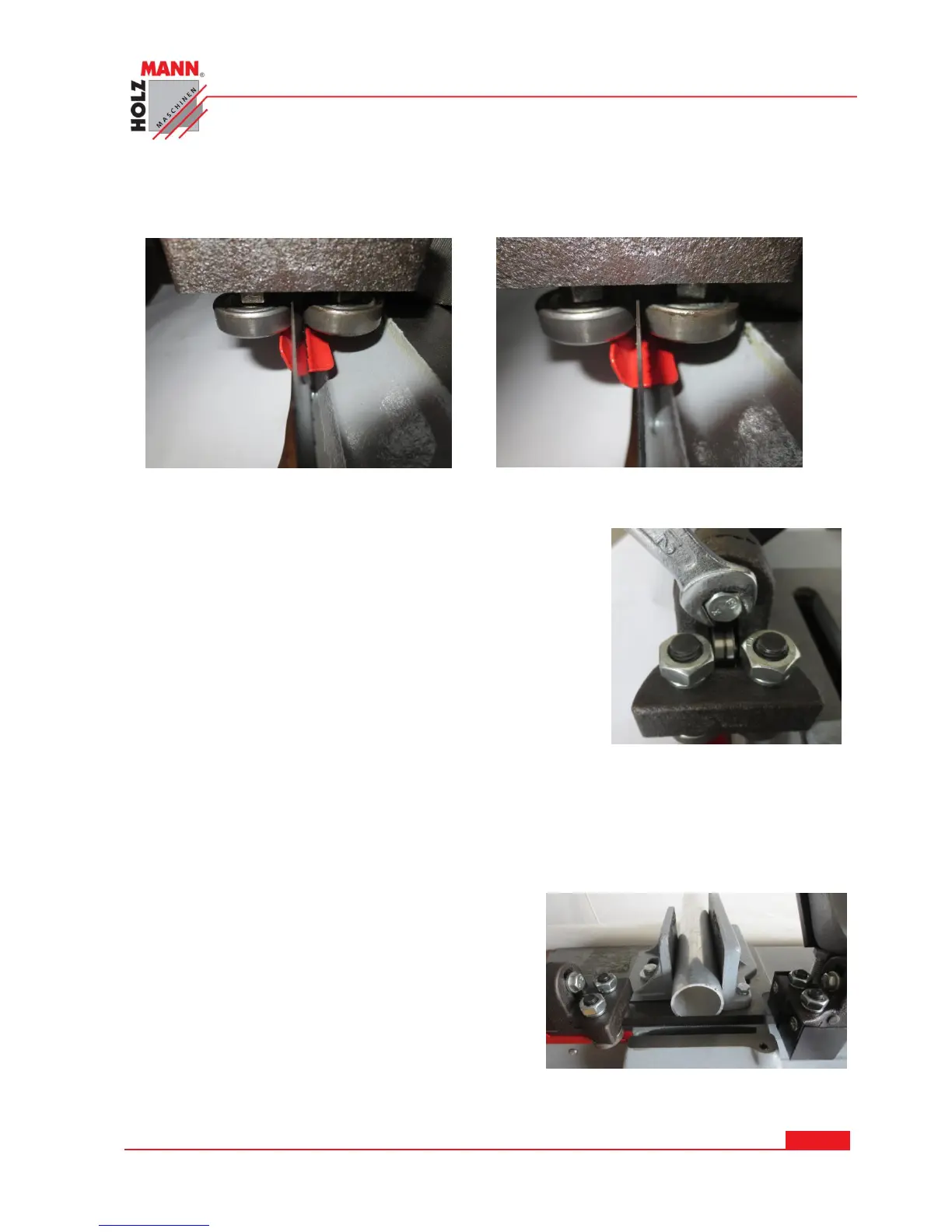

Example of a perfect adjustment of the bandsaw blade guide:
The bandsaw blade has too much play and is
therefore still cant between the lateral bearing
rollers.
The saw blade is completely vertically without
any play between the lateral bearing rollers.
CAUTION:
Before tightening the bandsaw blade guide examine
whether the saw band is below set perfectly vertical
and readjust the bandsaw blade guide according ver-
tically.
The bandsaw blade guide with the screw for fixing
tighten.
NOTE: Check the 90 ° bandsaw blade guide with an angle gauge or with a rectangular workpiece.
Repeat this process on the right if the saw band saw blade guiding is not performed exactly verti-
cal.
NOTE: The bandsaw blade guide slide (left / right) as close as possible to the workpiece.
By loosening the fixing nuts (12), the blade guides can
be moved.
CAUTION: Bevel cuts are resulting from not exactly vertical set saw blade guides and too much
play between the lateral bearing rollers!
