MAINTENANCE AND CARE
HOLZMANN Maschinen GmbH www.holzmann-maschinen.at Seite 42
BS 115

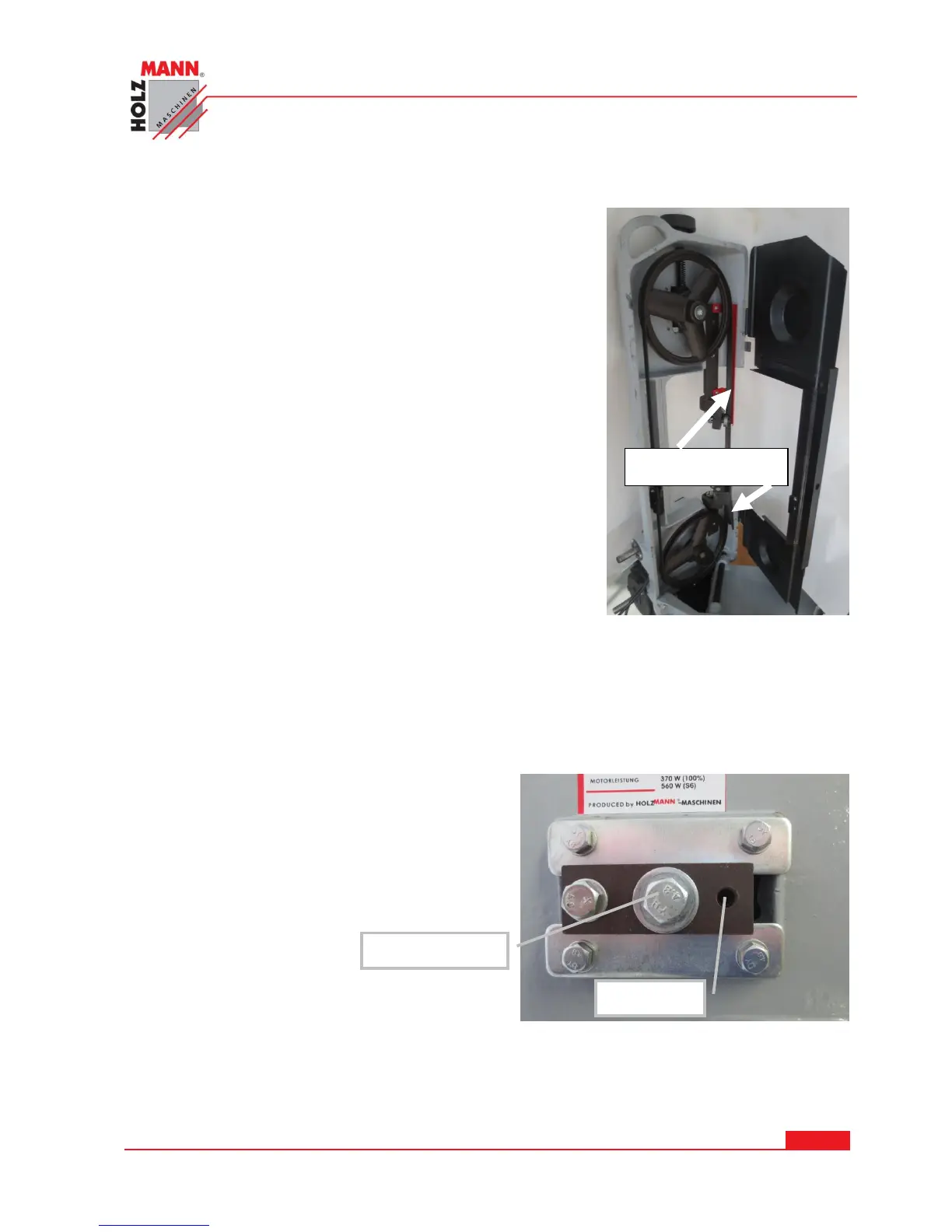

15.1 Changing the saw blade
 Bring the metal belt in the vertical position and open the bandsaw blade cover.
 Loosen the saw blade with the adjustment knob (2).
 Saw blade guards above (red) and at bottom remove.
 Now pull down the old blade. DANGER! Injury! Wear work
gloves.
 The new bandsaw first insert the blade guides.
WARNING: Respect the right direction of the teeth. (see
image left front of the saw arm)
Then put on the wheels.
 Set the saw blade with the adjustment knob (2) tension (1
mm test). After making a short test run and retighten if
necessary.
 Saw blade guards above (red) and bottom screw on.
 Screw the saw band cover back.
15.2 Setting tape / camber
The impeller is factory aligned to the drive wheel. Should, however (especially after exchange) of
the saw blade is not straight or run from the impeller, an adjustment may be necessary.
The tape / camber can be adjusted.
 The clamping screw slightly loose.
 With the grub screw the tape can be adjusted.
 Tighten the clamping screw.
grub screw
clamping screw
Saw blade guard
