13
CONTROLS AND FEATURES

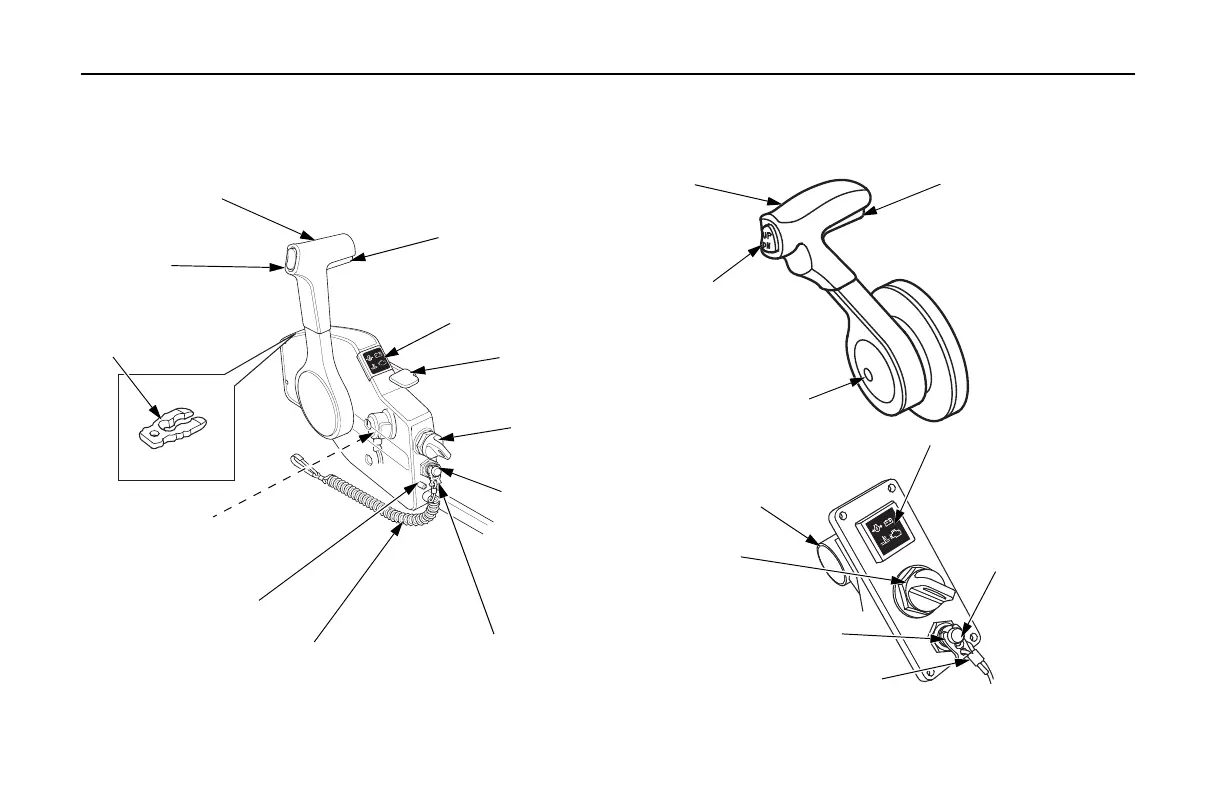

Remote Controls (optional equipment)
(SIDE-MOUNT REMOTE CONTROL)
GEARSHIFT/THROTTLE
CONTROL LEVER
POWER TRIM/TILT
SWITCH
SPARE SWITCH
CLIP
BUZZER
(inside)
CONTROL LEVER
FRICTION ADJUSTER
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP
SWITCH CLIP
EMERGENCY
STOP SWITCH
IGNITION
SWITCH
FAST IDLE
LEVER
NEUTRAL RELEASE
LEVER
INDICATORS
(Oil pressure, Overheat,
Alternator, Malfunction)
(PANEL-MOUNT REMOTE CONTROL)
GEARSHIFT/THROTTLE
CONTROL LEVER
POWER TRIM/TILT
SWITCH
FAST IDLE BUTTON
CONTROL PANEL
(for PANEL-MOUNT type)
BUZZER
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP
SWITCH CLIP
IGNITION
SWITCH
NEUTRAL RELEASE
LEVER
INDICATORS
(Oil pressure, Overheat,
Alternator, Malfunction)
EMERGENCY
STOP SWITCH
