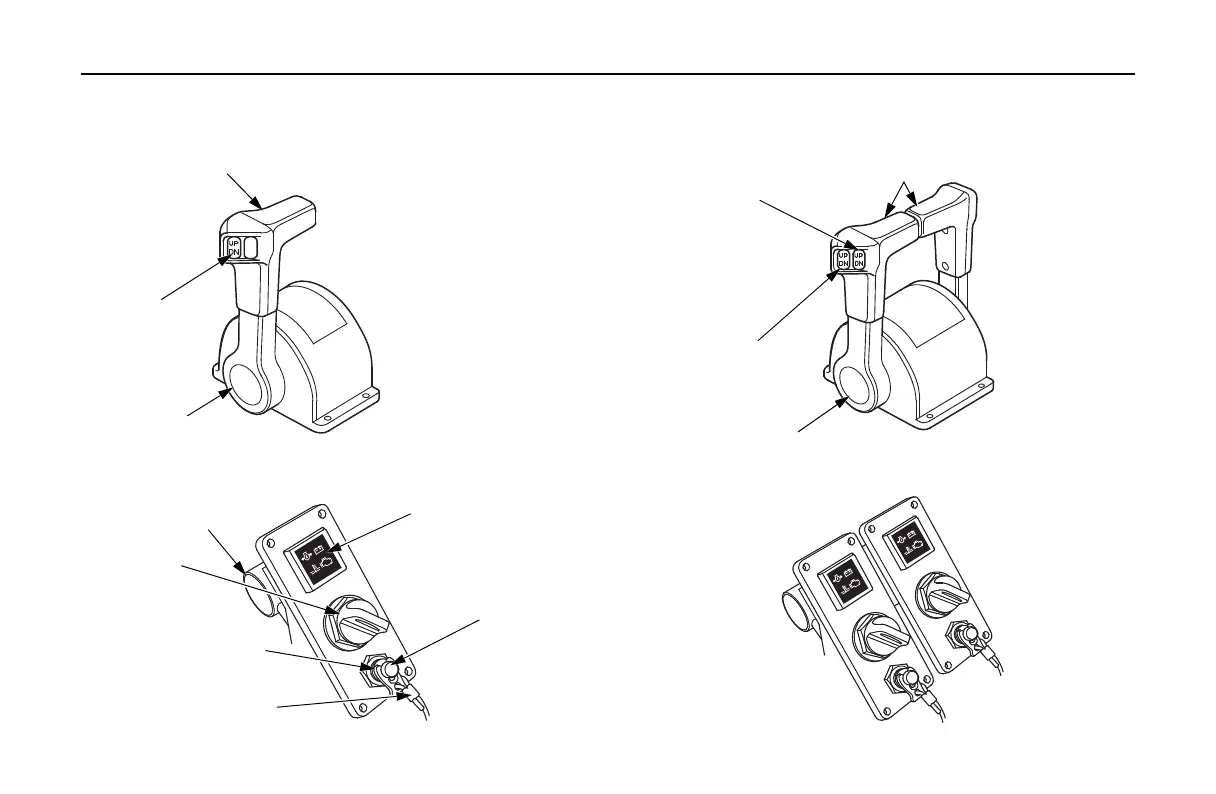

CONTROLS AND FEATURES
(SINGLE TOP-MOUNT REMOTE CONTROL)
GEARSHIFT/THROTTLE
CONTROL LEVER
POWER
TRIM/TILT
SWITCH
CONTROL PANEL
(for TOP-MOUNT SINGLE type)
BUZZER
IGNITION
SWITCH
POWER TRIM/TILT
SWITCH (LEFT)
GEARSHIFT/THROTTLE
CONTROL LEVERS
POWER TRIM/TILT
SWITCH (RIGHT)
(DUAL TOP-MOUNT REMOTE CONTROL)
EMERGENCY STOP
SWITCH CLIP
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY
STOP SWITCH
INDICATORS
(Oil pressure, Overheat,
Alternator, Malfunction)
FAST IDLE
BUTTON
(for TOP-MOUNT DUAL type)
FAST IDLE
BUTTON
