Coolant
(cont’d)
5. Remove the clips.
6. Remove the left radiator grill cover (5) by releasing the tab A (6),
tab B (7), tab C (8), hook A (9) and hook B (10).
7. TRX500FM1 only:
Remove the right radiator grill cover (11) by releasing the tab A,
tab B, tab C, hook A, hook B and hose (12), then remove the
centre radiator grill cover (13).

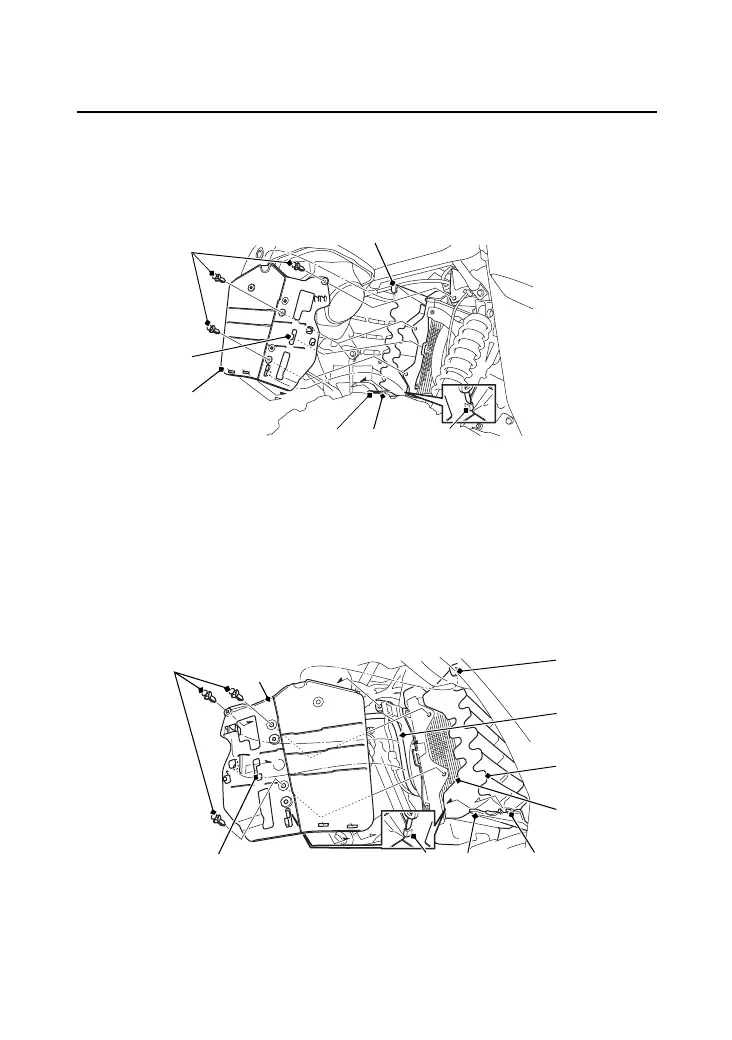

LEFT FRONT
(3) clips
(3)
(8)
(5)
(6)
(9)
(10)
(5) left radiator
grill cover
(6) tab A
(7) tab B
(8) tab C
(9) hook A
(10) hook B
(7)
RIGHT FRONT (TRX500FM1)
(11) right radiator grill cover
(12) hose
(13) centre radiator grill cover
(8) (10) (6) (7)
(13)
(12)
(9)
(11)(3)
(14)
(14) radiator core
