Coolant
8.
TRX500FM2 only:
Remove the centre radiator grill cover by releasing the tab A, tab
B, hook A and hook B.
9.
Wash the radiator core (14) and radiator grill covers.
Do not apply pressured water directly to the radiator core.
The pressured water can damage the radiator core.
10.
Install the removed parts in reverse order of removal.

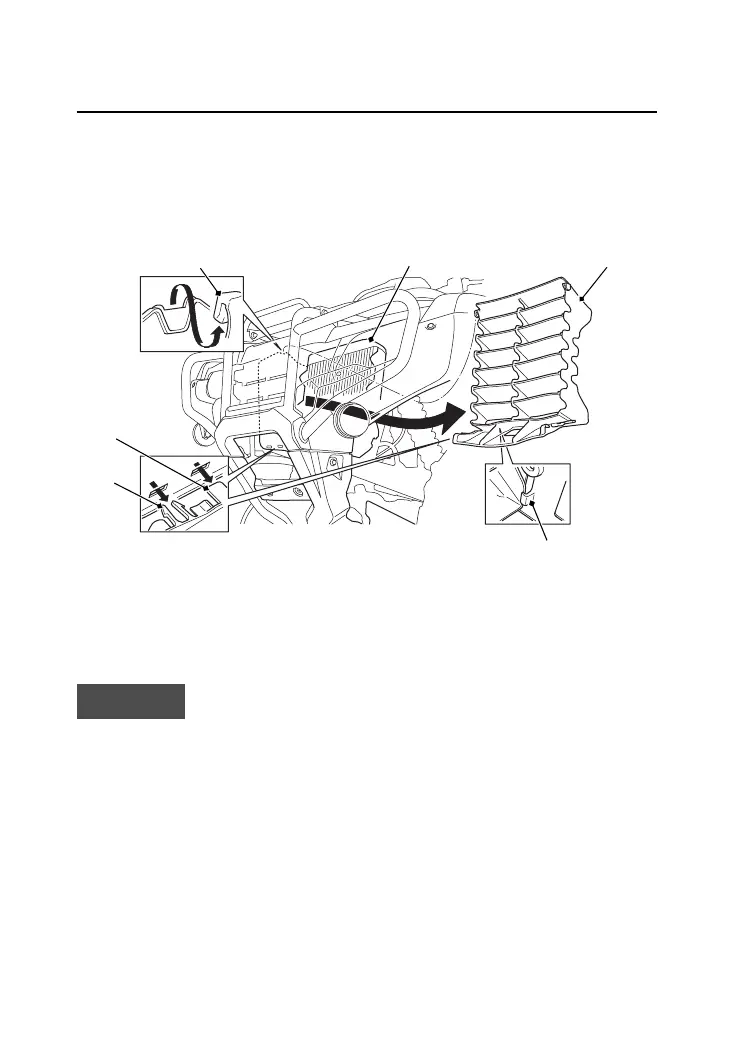

FRONT (TRX500FM2)
(6) tab A
(7) tab B
(9) hook A
(10) hook B
(13) centre radiator grill cover
(14) radiator core
(9) (14) (13)
(10)
(7)
(6)
